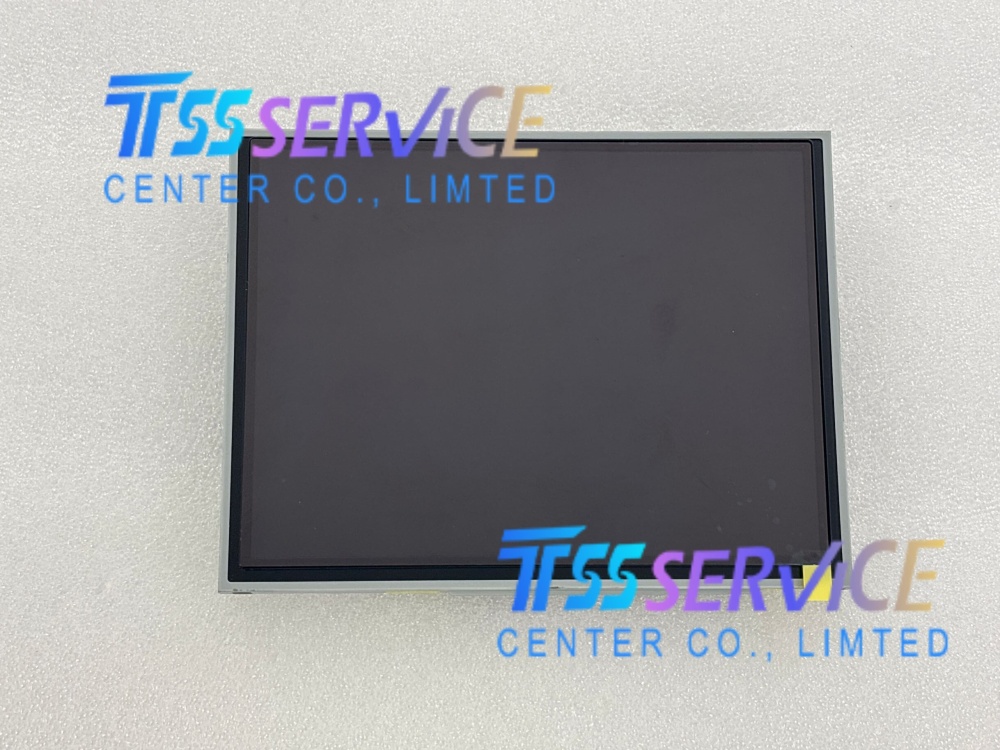

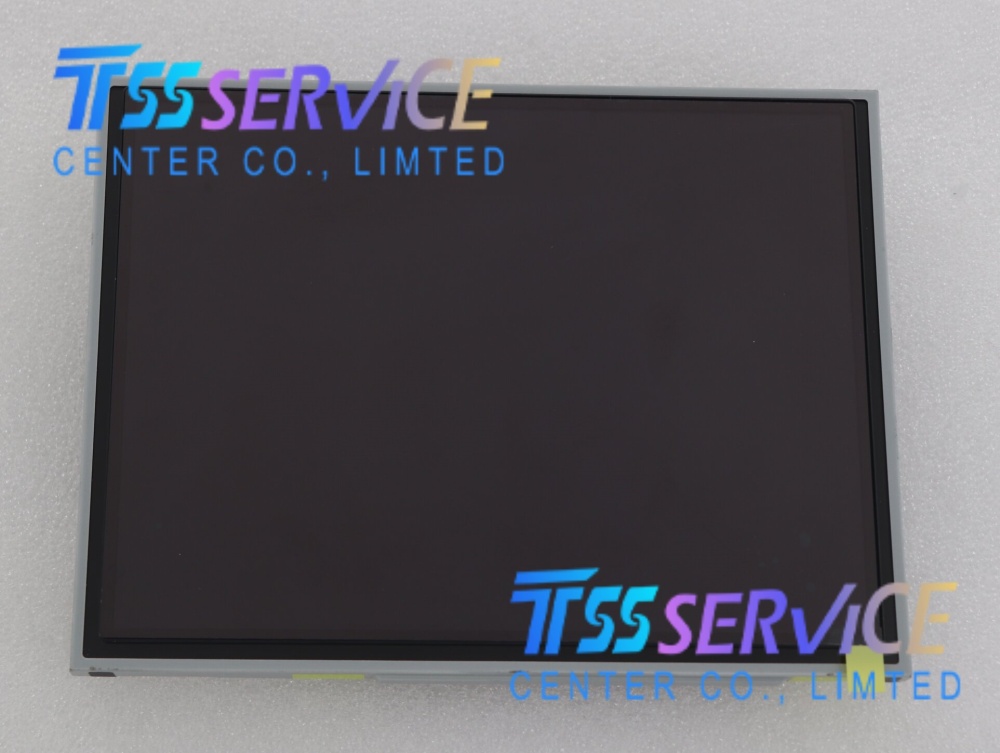

Model P/N: LS084X5LX02
Diagonal Size: 8.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1024(RGB)×768, XGA 152PPI
Pixel Format: RGB Vertical Stripe
| Parameter | Specification |
|---|---|
| Model Number | LS084X5LX02 |
| Manufacturer | Sharp Corporation |
| Display Type | a-Si TFT-LCD, Transmissive, Normally Black |
| Screen Size | 8.4 inch (Diagonal) |
| Resolution | 1024 × 768 |
| Pixel Pitch | 0.210 (W) × 0.210 (H) mm (for SVGA) |
| Active Area | 167.64 (W) × 125.73 (H) mm (for SVGA) |
| Outline Dimension | Approx. 199.5 (W) × 149.0 (H) × 9.5~12.0 (D) mm (Typ.) |
| Brightness | 600 ~ 1000 cd/m² (Typical High Brightness for Industrial) |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Color Depth | 16.7M 65% NTSC |
| Interface | LVDS (1 ch, 8-bit) Connector |
| Backlight | WLED , Without Driver |
| Touch Panel | None |
| Operating Temp. | -40 ~ 85 °C |
| Storage Temp. | -40 ~ 95 °C |
| RoHS Compliance | Yes |
| Application Grade | Industrial / Medical / Transportation / Military |
