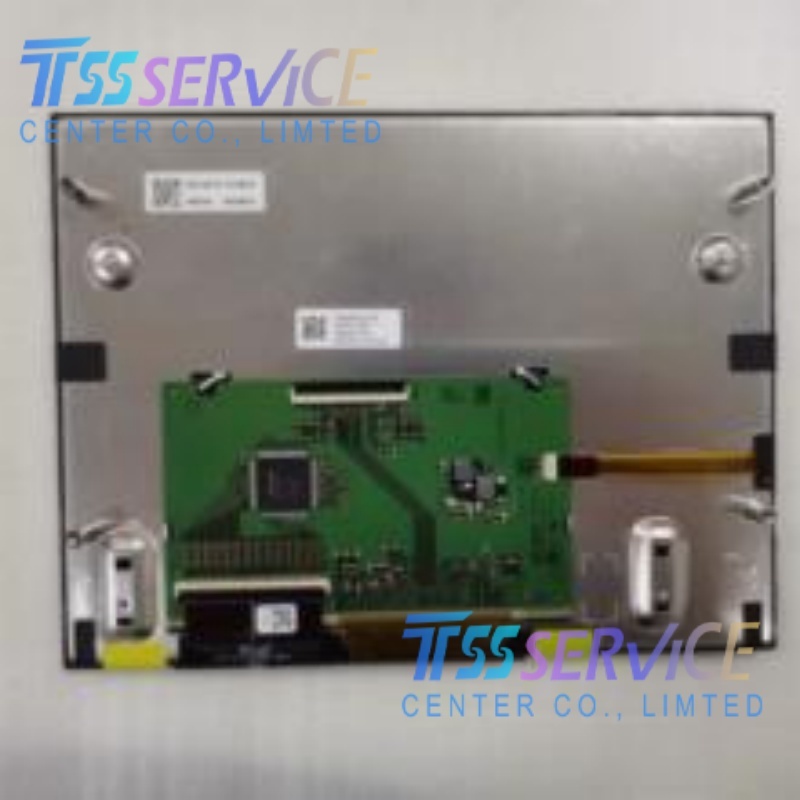

Sharp LS084X5LX03X 8.4" LCD Panel Display For Industrial

Name: Sharp LS084X5LX03X 8.4" LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LS084X5LX03X
Price: 110 USD
Availability: InStock

SKU: LS084X5LX03X

Model P/N: LS084X5LX03X
Diagonal Size: 8.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1024 × 768 (XGA)
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$112.00~~ $110.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LS084X5LX03X 8.4" LCD Panel Display For Industrial

Parameter	Details
Manufacturer	Sharp
Model Number	LS084X5LX03X
Panel Type	a-Si TFT-LCD, New Mode2, Normally Black, Transmissive
Diagonal Size	8.4 inches
Resolution	1024 × 768 (XGA), Aspect Ratio 4:3
Pixel Configuration	RGB Vertical Stripe
Active Area	170.6 × 127.95 mm (W × H)
Outline Dimensions	192.0 × 145.0 × 11.0 mm (W × H × D)
Surface Treatment	Anti-glare (Matte)
Brightness	1000 cd/m² (Typical)
Contrast Ratio	1300:1 (Typical, Transmission)
Viewing Angle	89/89/89/89° (Typical, CR≥10) (L/R/U/D)
Response Time	25 ms (Max., Tr+Td)
Refresh Rate	60 Hz
Color Depth	8-bit, 16.7M Colors, 65% NTSC (Typical)
Backlight	WLED, Edge-type (8S3P), No Driver IC, Lifetime: 50,000+ hours
Signal Interface	LVDS, 1 channel, 8-bit, 50 pins connector
Supply Voltage	3.3V (Typical)
Touch Panel	Integrated Projected Capacitive Touch (PCAP)
Operating Temperature	-40°C ~ 85°C
Storage Temperature	-40°C ~ 95°C
Application	Automotive, Industrial, Outdoor High Brightness

Specific Applications

Automotive Infotainment & NavigationPrimarily designed for car navigation systems, in-car center consoles, and automotive infotainment units. Its ultra-high 1000 nits brightness ensures excellent readability under direct sunlight, while the wide temperature range (-40°C to 85°C) meets strict automotive environmental standards. It is commonly used as a replacement display for Dodge Ram 22/23 models and other vehicles.
Industrial Control & HMIApplied in industrial human-machine interfaces (HMI), factory automation controllers, and rugged industrial terminals. The high-brightness, anti-glare surface, and wide temperature tolerance make it suitable for operation in harsh industrial environments.
Outdoor & Semi-Outdoor DisplaysUsed in outdoor kiosks, portable field devices, and marine electronics where high visibility in bright ambient light is critical. The 1000 cd/m² luminance and full-viewing-angle performance ensure clear content display outdoors.
Embedded & Specialized SystemsIntegrated into medical portable devices, test & measurement equipment, and military-grade displays, leveraging its robust design, PCAP touch functionality, and reliable performance across extreme temperature conditions.
