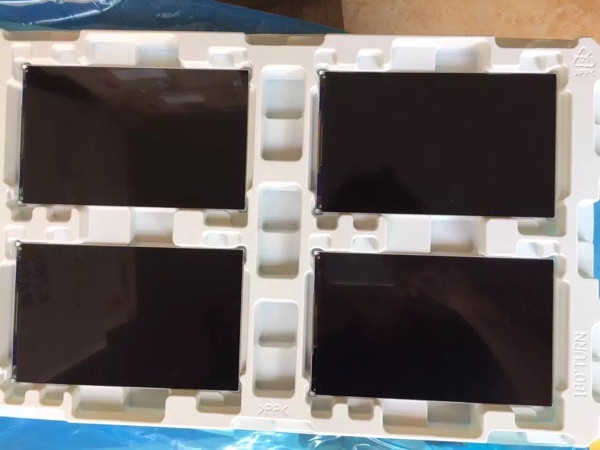

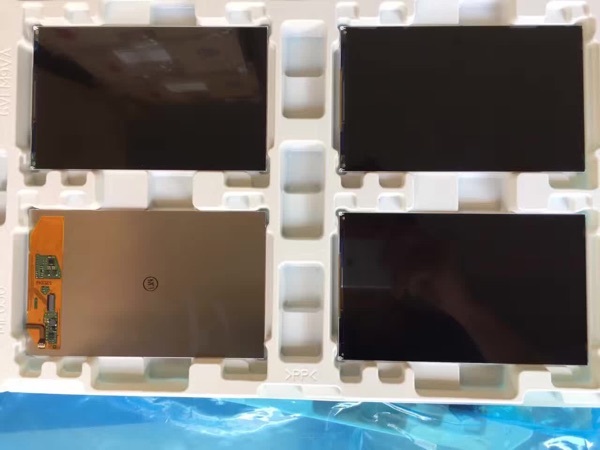

The JDI LT070ME05000 is a 7.0-inch high-resolution LTPS TFT-LCD display module designed for applications demanding exceptional image quality and compact form factor. Leveraging Japan Display Inc.'s advanced LTPS (Low-Temperature Polycrystalline Silicon) and IPS (In-Plane Switching) technologies, this panel delivers vivid colors, wide viewing angles, and high brightness, making it ideal for portable devices, automotive displays, industrial handheld terminals, and high-end consumer electronics.
| Parameter |
Specification |
| Brand |
JDI |
| Model P/N |
LT070ME05000 |
| Diagonal Size |
7.0" |
| Panel Type |
LTPS TFT-LCD, LCM |
| Resolution |
1200(RGB)×1920, WUXGA 322PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
94.5(W)×151.2(H) mm |
| Bezel Opening |
- |
| Outline Size |
98.7(W)×160.8(H)×3.67(D) mm |
| Surface |
- |
| Brightness |
450 cd/m² (Typ.) |
| Contrast Ratio |
1100:1 (Typ.) (TM) |
| Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
| Display Mode |
IPS, Normally Black, Transmissive |
| Best View on |
Symmetry |
| Display Colors |
16.7M 72% NTSC |
| Lamp Type |
5S4P WLED , With LED Driver |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Weight |
66.0g (Typ.) |
| Signal Interface |
MIPI (4 data lanes), 31 pins Connector |
| Input Voltage |
1.8/3.0/3.0V (Typ.)(IOVCC/VDD/VDPD) |
| Environment |
Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
Applications
-
Portable and Handheld Devices
-
Automotive Infotainment and Instrument Clusters
-
Industrial Handheld Terminals and HMIs
-
High-End Consumer Electronics (Tablets, Gaming Devices)
-
Medical Display Interfaces
-
Drone Controllers and Portable Test Equipment
