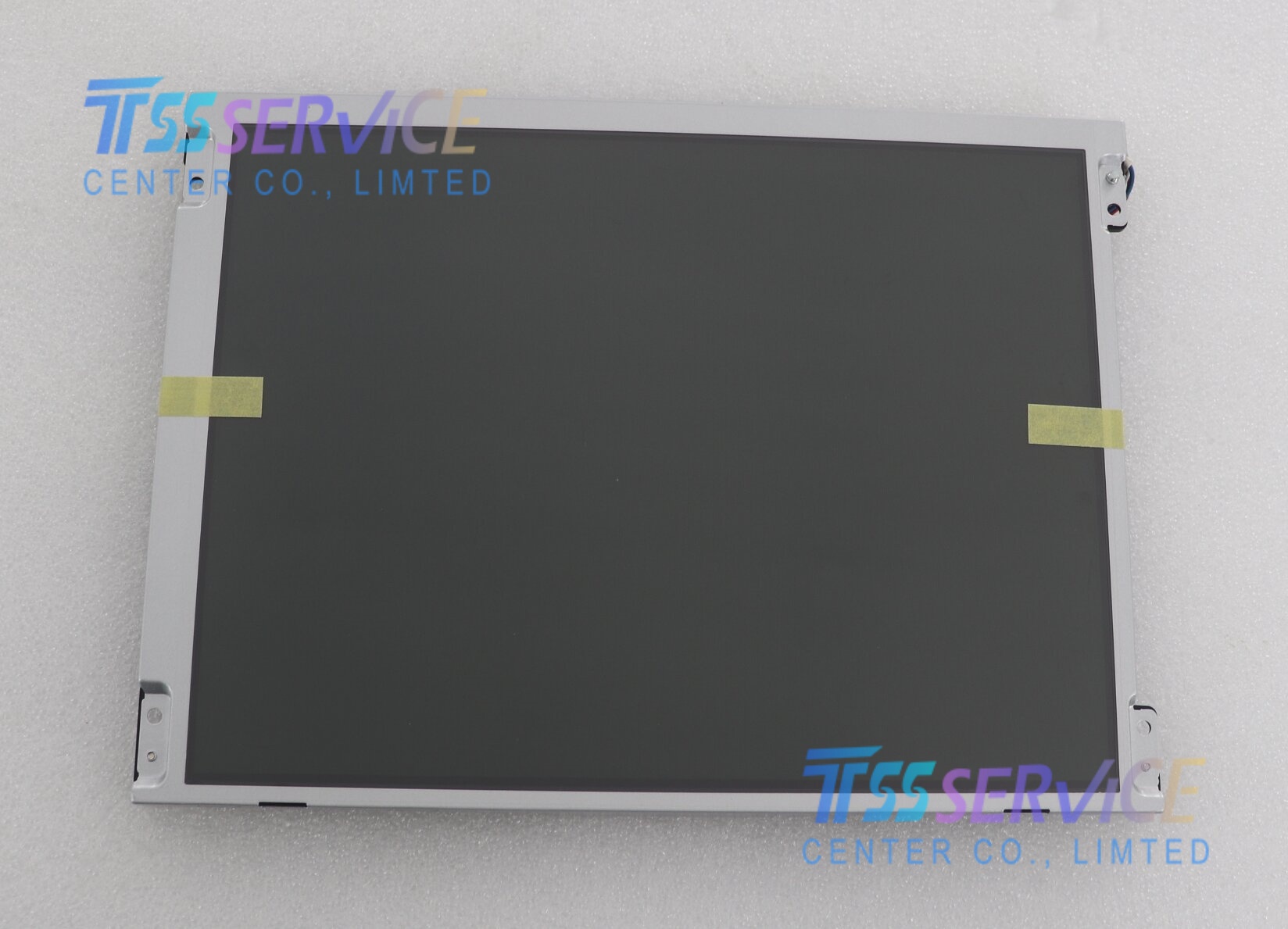

The LT104AC54100 is a 10.4-inch a-Si TFT-LCD (Low Temperature Poly Silicon Thin Film Transistor Liquid Crystal Display) module engineered for industrial and multimedia applications. It delivers reliable performance with VGA resolution and a 4:3 aspect ratio, making it suitable for various professional equipment
| Brand |
Toshiba Mobile Display |
| Model P/N |
LT104AC54100 |
| Diagonal Size |
10.4" |
| Panel Type |
LTPS TFT-LCD, LCM |
| Resolution |
640(RGB)×480, VGA |
| Pixel Format |
RGB Vertical Stripe |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
500 : 1 (Typ.) (TM) |
| Display Mode |
TN, Normally White, Transmissive |
| Display Colors |
262K |
| Lamp Type |
2 pcs CCFL, 50K hours |
| Signal Interface |
CMOS (1 ch, 6-bit) |
| Environment |
Operating Temp.: -10 ~ 65 °C |
Applications
This display panel is primarily designed for:
-
Industrial control systems
-
Medical equipment
-
Point-of-Information (POI) and Point-of-Sale (POS) terminals
-
Multimedia devices requiring reliable performance in varied conditions
