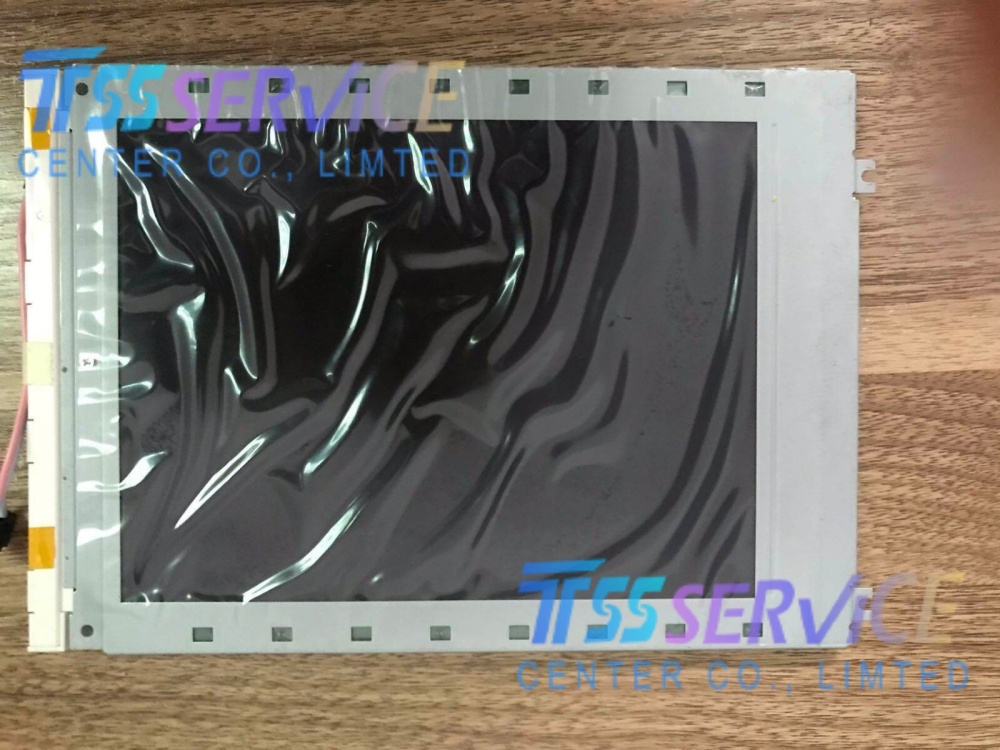

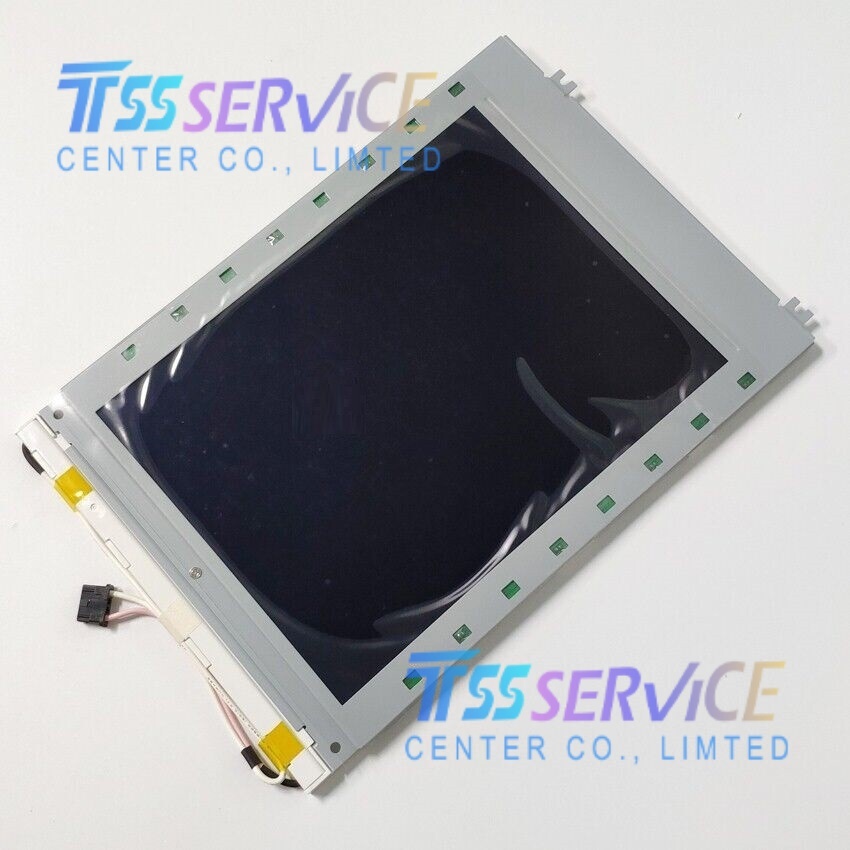

Nanya LTBLDT701G23CK 7.2 Inch 640×480 Monochrome LCD Panel Display Screen For Industrial

Name: Nanya LTBLDT701G23CK 7.2 Inch 640×480 Monochrome LCD Panel Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LTBLDT701G23CK
Price: 160 USD
Availability: InStock

SKU: LTBLDT701G23CK

Model Number: LTBLDT701G23CK
Manufacturer: Nanya (Nan Ya Plastics)
Diagonal Size: 7.2 inch, 4:3 Aspect Ratio
Native Resolution: 640(H) × 480(V), VGA Monochrome
Display Technology: FSTN-LCD

0.0 (0 Reviews)

0 Sold

~~$165.00~~ $160.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Nanya LTBLDT701G23CK 7.2 Inch 640×480 Monochrome LCD Panel Display Screen For Industrial

Item	Parameter Details
Model Number	LTBLDT701G23CK (Alias: LTBLDT70LG23CK)
Manufacturer	Nanya (Nan Ya Plastics)
Diagonal Size	7.2 inch, 4:3 Aspect Ratio
Native Resolution	640(H) × 480(V), VGA Monochrome
Display Technology	FSTN-LCD, Normally Black (Negative Transmissive)
Pixel Arrangement	Rectangular Single Color Pixel
Active Display Area	147.18 mm (W) × 110.38 mm (H)
Overall Outline Dimension	205.5 (W) × 141 (H) × 7 (D) mm
Typical Brightness	85 cd/m²
Contrast Ratio	18:1 (Typical)
Response Time	Tr=234ms / Td=110ms (Typical)
Display Color	Single Monochrome (Green/Black Negative Mode)
Refresh Rate	Standard 70Hz
Backlight System	Single CCFL Lamp, 20,000 Hours Lifespan, No Built-in Driver Board
Signal Interface	15Pin 2-channel 4-bit Parallel Data Interface
Supply Voltage	VDD=5.0V, VEE=22.3V (Typical)
Surface Treatment	Standard Hard Anti-Scratch Clear Coating
Touch Configuration	LCD Module Only, No Touch Glass
Operating Temperature	0°C ~ +50°C
Storage Temperature	-20°C ~ +70°C
Net Weight	Approx 310g
