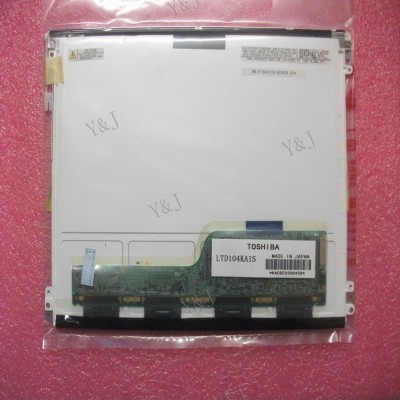

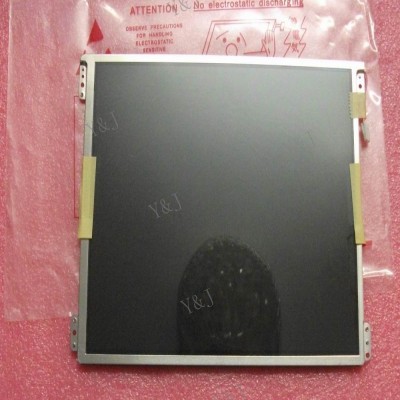

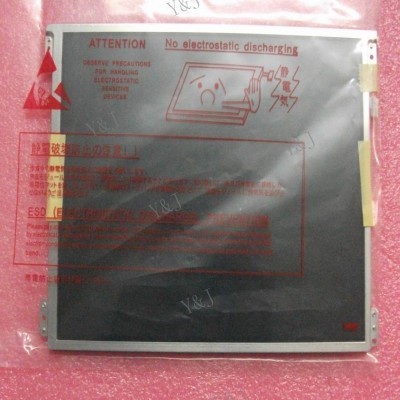

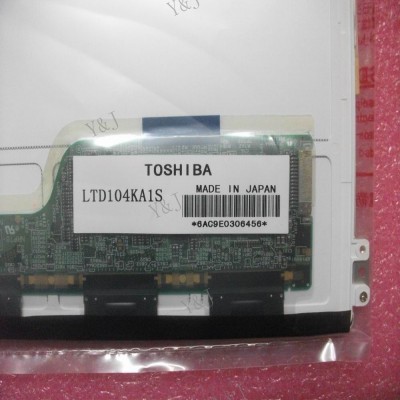

The LTD104KA1S is a 10.4-inch LTPS (Low-Temperature PolySilicon) TFT-LCD display module originally manufactured by Toshiba Matsushita Display Technology (TMD) for industrial and professional applications . This panel delivers XGA resolution in a compact form factor, making it suitable for industrial control systems, medical instruments, and specialized equipment requiring reliable performance.
| Brand |
Toshiba Matsushita |
| Model P/N |
LTD104KA1S |
| Diagonal Size |
10.4" |
| Panel Type |
LTPS TFT-LCD, LCM |
| Resolution |
1024(RGB)×768, XGA 123PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
210.4(W)×157.8(H) mm |
| Bezel Opening |
215.0(W)×162.5(H) mm |
| Outline Size |
238.6(W)×173.2(H) ×6.5(D) mm |
| Brightness |
170 cd/m² (Typ.) |
| Contrast Ratio |
250:1 (Typ.) (TM) |
| Viewing Angle |
45/45/20/30 (Typ.)(CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| Best View on |
6 o'clock |
| Response Time |
50/50 (Max.)(Tr/Td) |
| Display Colors |
262K |
| Lamp Type |
1 pcs CCFL , Without Driver |
| Touch Screen |
Without |
| Signal Interface |
LVDS (1 ch, 6-bit), 14 pins Connector |
| Input Voltage |
3.3V (Typ.) |
| Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Application
The LTD104KA1S is designed for industrial applications requiring reliable XGA resolution in a 10.4-inch format. Typical use cases include :
-
Industrial Equipment: Control panels for factory automation, CNC machines, and process controllers
-
Medical Instruments: Patient monitors and diagnostic equipment (non-critical care)
-
Test & Measurement: Instrumentation displays requiring stable, long-term performance
-
Legacy System Maintenance: Replacement part for industrial and professional equipment
