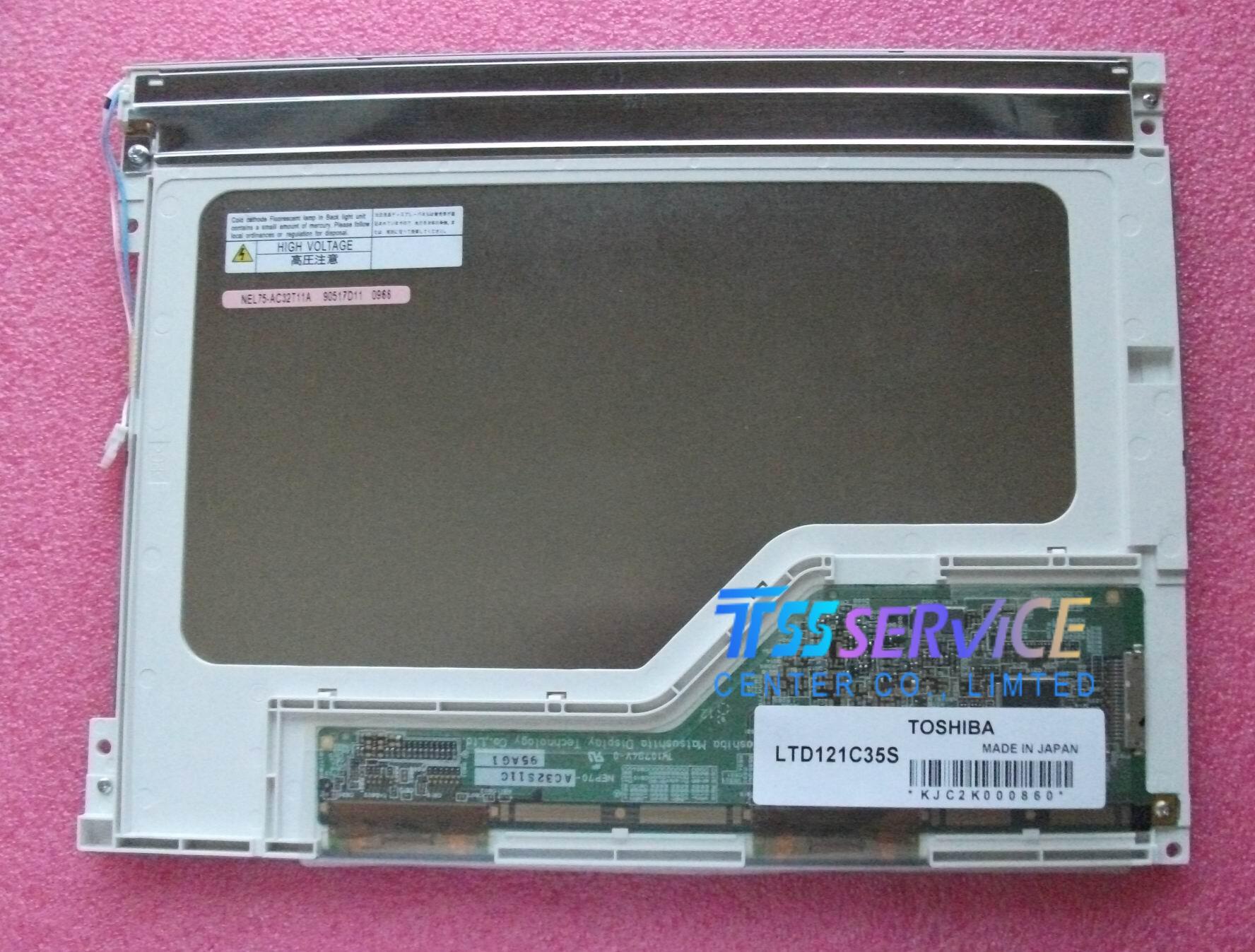

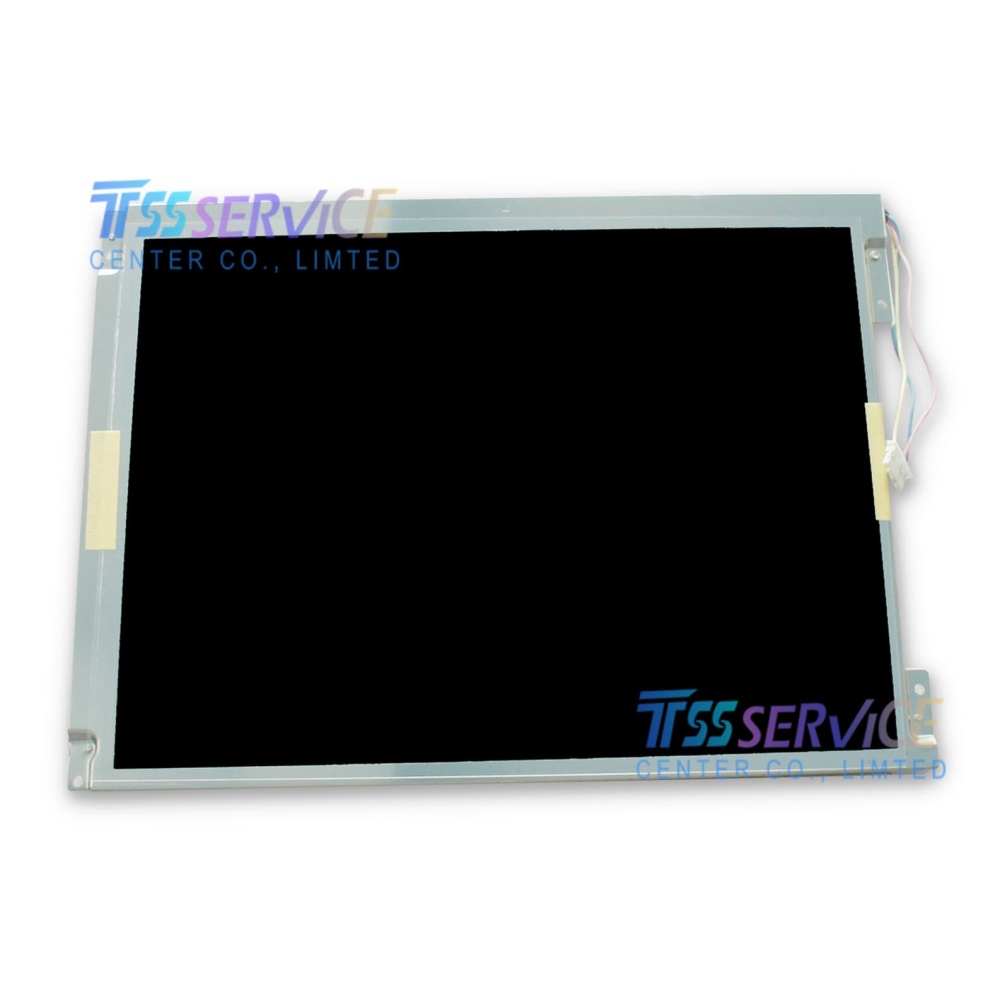

The Toshiba LTD121C35S is a 12.1-inch industrial-grade a-Si TFT-LCD display module manufactured by Toshiba Matsushita Display Technology (TMD). Featuring SVGA resolution (800×600) with a classic 4:3 aspect ratio, this panel is distinguished by its exceptional high brightness of 900 cd/m² . Engineered for demanding outdoor and industrial environments, it delivers superior visibility even in high-ambient-light conditions, making it an ideal choice for applications such as POS terminals, ATMs, vending machines, and outdoor kiosks .
| Parameter |
Specification |
| Manufacturer |
Toshiba Matsushita |
| Model No. |
LTD121C35S |
| Screen Size |
12.1 inch |
| Screen Type |
a-Si TFT-LCD, LCM |
| Number of dots |
800(RGB)×600, 4:3, SVGA |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
246 × 184.5 mm (H×V) |
| Outline Area |
278.2 × 215.8 × 14 mm (H×V×D) |
| Weight |
815 g (Typ.) |
| Luminance |
900 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) (TM) |
| Viewing Angle |
70/70/50/70 (Typ.) (CR≥10) |
| Response Time |
10/25 ms (Typ.) (Tr/Td) |
| Display Type |
TN, Normally White, Transmissive |
| Display Colors |
262K |
| Total Power |
16.4W (Typ.) |
| Backlight |
4 pcs CCFL, 50K hours, No Driver |
| Touchscreen |
Without |
| Signal Type |
LVDS (1 ch, 6-bit), 20 pins Connector |
| Voltage Supply |
3.3V (Typ.) |
| Max. Ratings |
Operating Temp.: -20 ~ 70°C; Storage Temp.: -30 ~ 80°C |
Applications
The LTD121C35S was specifically designed for applications requiring superior outdoor readability :
-
Outdoor kiosks and public information displays
-
POS (Point of Sale) terminals
-
ATM machines
-
Vending machines
-
Industrial control panels and HMIs
-
Factory automation equipment
-
Marine and navigation displays
-
Medical equipment
