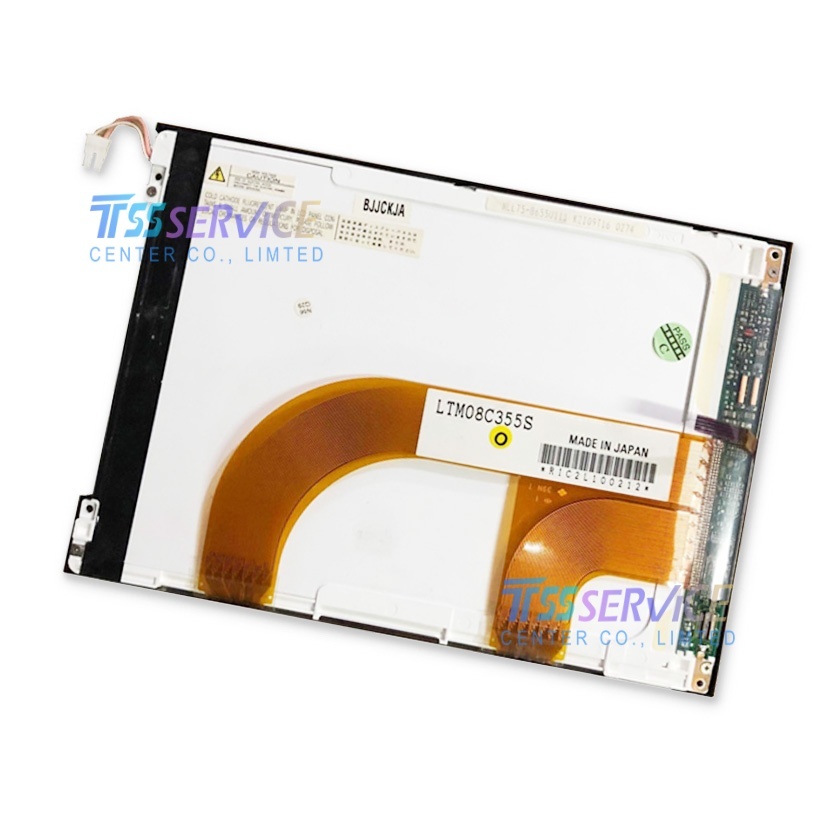

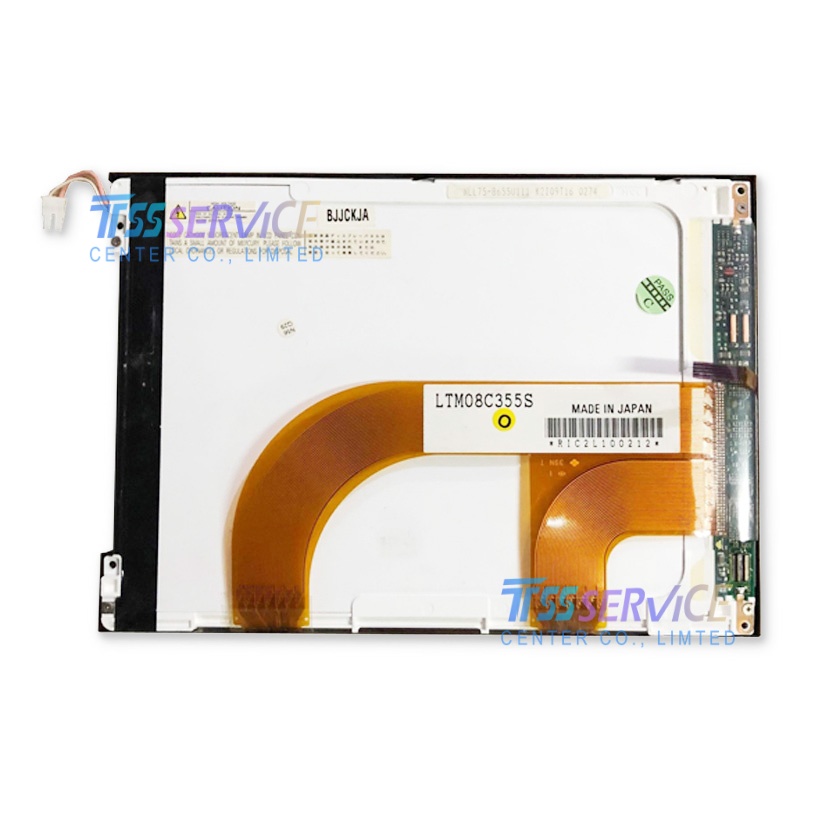

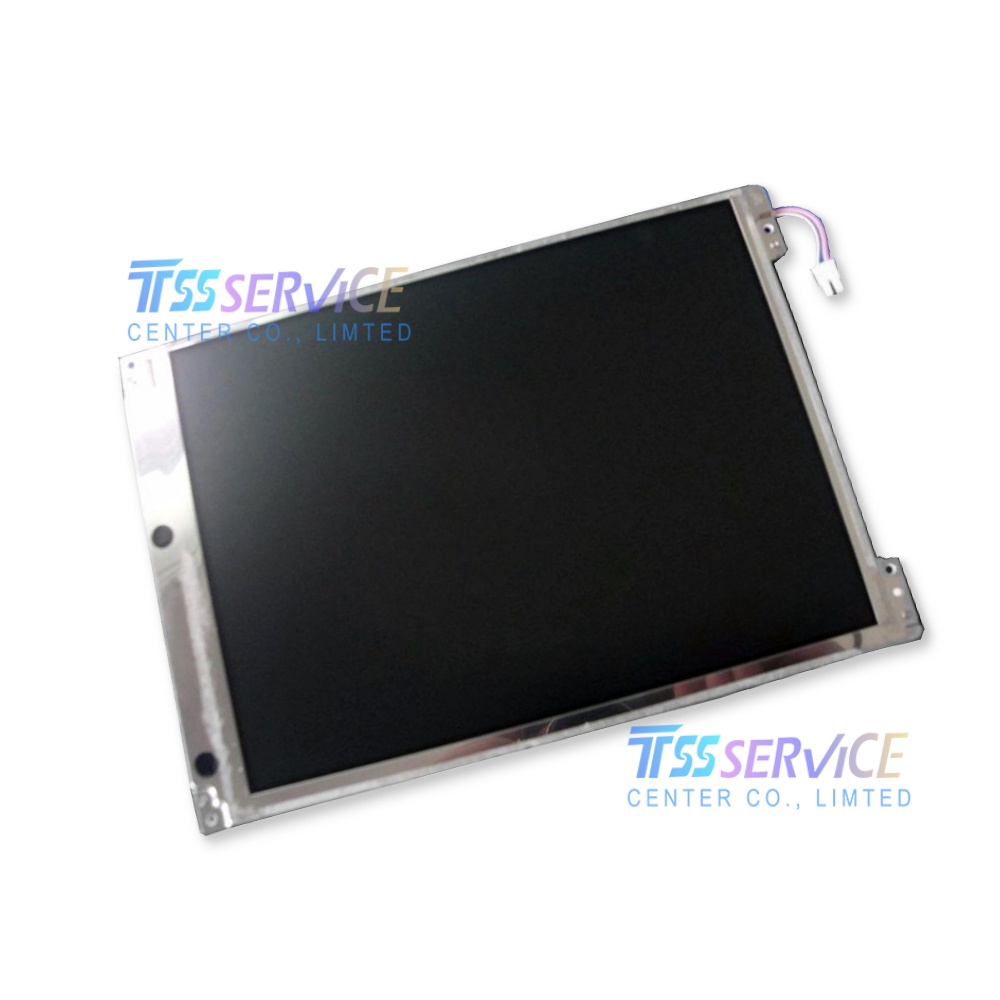

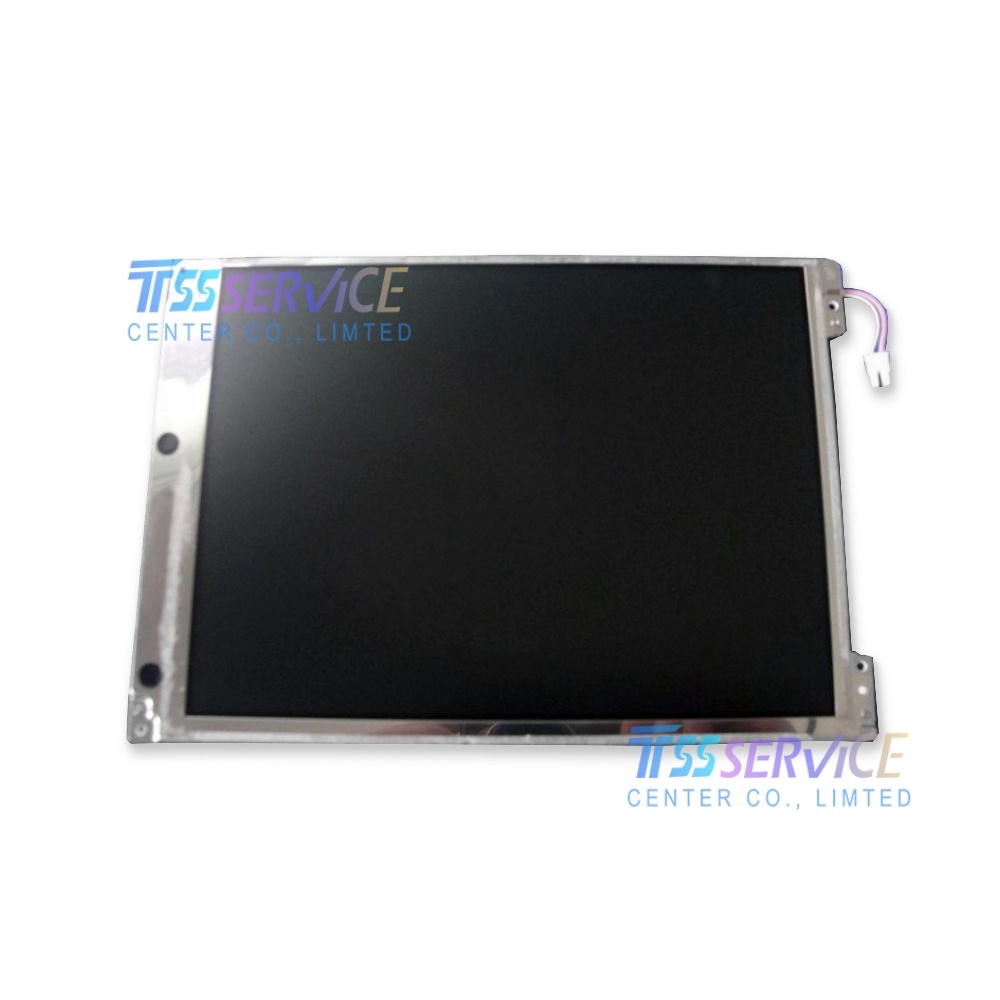

The LTM08C355S is an 8.4-inch a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module manufactured by Toshiba utilizing LTPS (Low Temperature Poly-Silicon) technology . This industrial-grade SVGA display panel was originally designed for notebook PC applications but has found widespread use in various industrial equipment requiring reliable performance in a compact form factor . The module utilizes CCFL backlight technology and features an exceptionally slim profile of only 5.5mm thickness .
| Attribute |
Value |
| Brand |
TOSHIBA |
| Model P/N |
LTM08C355S |
| Diagonal Size |
8.4" |
| Panel Type |
LTPS TFT-LCD, LCM |
| Resolution |
800(RGB)×600, SVGA 119PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
170.4(W)×127.8(H) mm |
| Bezel Opening |
173.4(W)×130.8(H) mm |
| Outline Dim. |
200.3(H)×140.3(V)×5.5(D) mm |
| Treatment |
- |
| Luminance |
145 cd/m² (Typ.) |
| Contrast Ratio |
250:1 (Typ.) (TM) |
| View Direction |
- |
| Response Time |
50/50 (Max.)(Tr/Td) |
| Viewing Angle |
- |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K |
| Light Source |
CCFL [1 pcs], W/O Driver |
| Form Style |
- |
| Designed For |
- |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
Parallel RGB (1 ch, 6-bit), 30 pins Connector |
| Power Supply |
3.3V (Typ.) |
| Environment |
Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
Applications
This industrial display panel is ideal for :
-
Industrial control panels and HMI (Human-Machine Interface)
-
CNC machine tools including systems from Fanuc, Siemens, Mitsubishi, and KND
-
Industrial automation systems and factory equipment
-
Test and measurement instruments
-
Medical devices and monitoring systems
-
Point-of-Sale (POS) terminals
-
Legacy system retrofits and equipment repairs
-
Note: Originally designed for notebook PCs, now primarily used in industrial applications.
