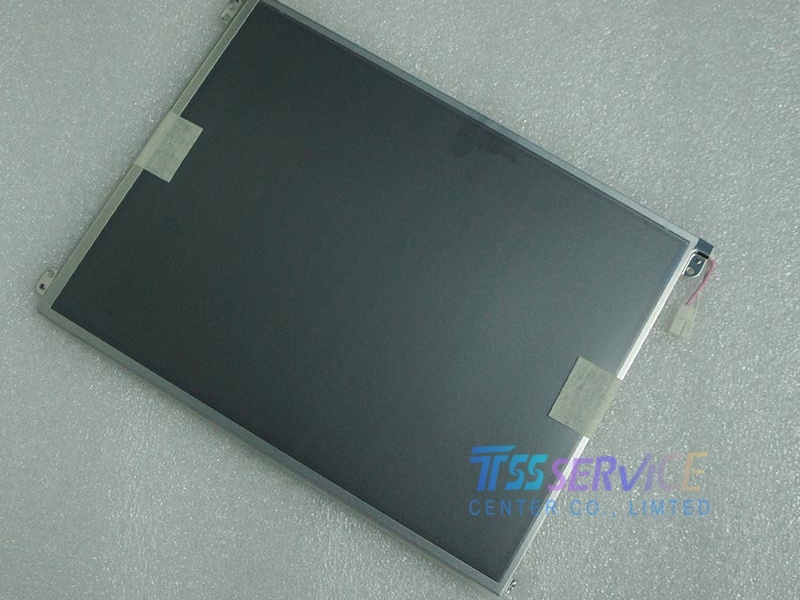

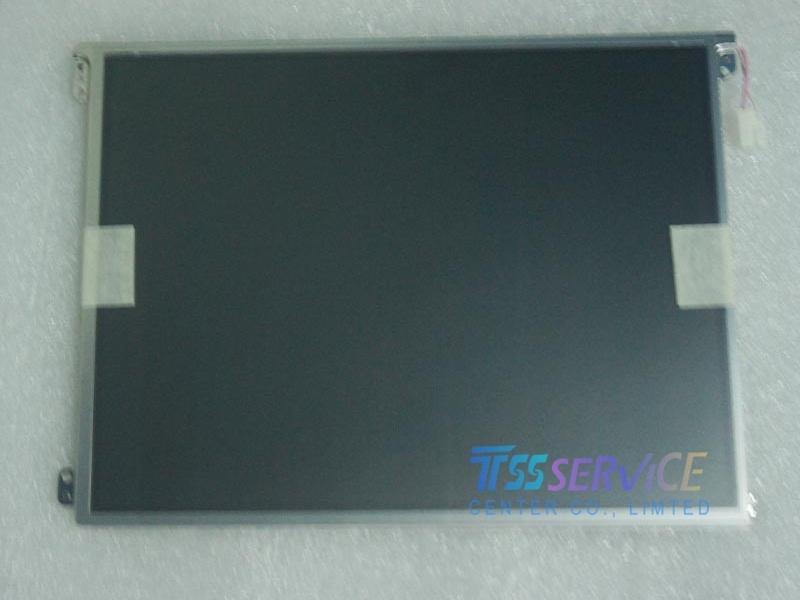

The Toshiba LTM10C313U is a 10.4-inch diagonal LTPS (Low-Temperature PolySilicon) TFT-LCD module designed for industrial and embedded display applications. It delivers reliable performance with a compact structure and standard interface.
| Parameter |
Value |
| Brand |
TOSHIBA |
| Model |
LTM10C313U |
| Diagonal Size |
10.4 inch |
| Type |
LTPS TFT-LCD, LCM |
| Pixel Number |
1024(RGB)×768, XGA, 4:3 |
| Dot Layout |
RGB Vertical Stripe |
| Active Area |
210.4(H)×157.8(V) mm |
| Physical Size |
238.6(H)×173.2(V)×5.7(D) mm |
| Mass |
270g (Typ.) |
| Luminance |
150 cd/m² (Typ.) |
| Contrast Ratio |
250:1 (Typ.) (TM) |
| Response Time |
50/50 (Max.)(Tr/Td) ms |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K |
| Touch Panel |
Without |
| Light Source |
1 pcs CCFL, Without Driver |
| Frame Rate |
60Hz |
| Interface Type |
LVDS (1 ch, 6-bit), 14 pins Connector |
| Power Supply |
3.3V (Typ.) |
| Operating Temperature |
0 ~ 50 °C |
| Storage Temperature |
-20 ~ 60 °C |
Applications:
The LTM10C313U is suitable for industrial control panels, medical equipment displays, POS systems, and other embedded devices requiring a mid-size, reliable TFT-LCD solution with a standard LVDS interface.
