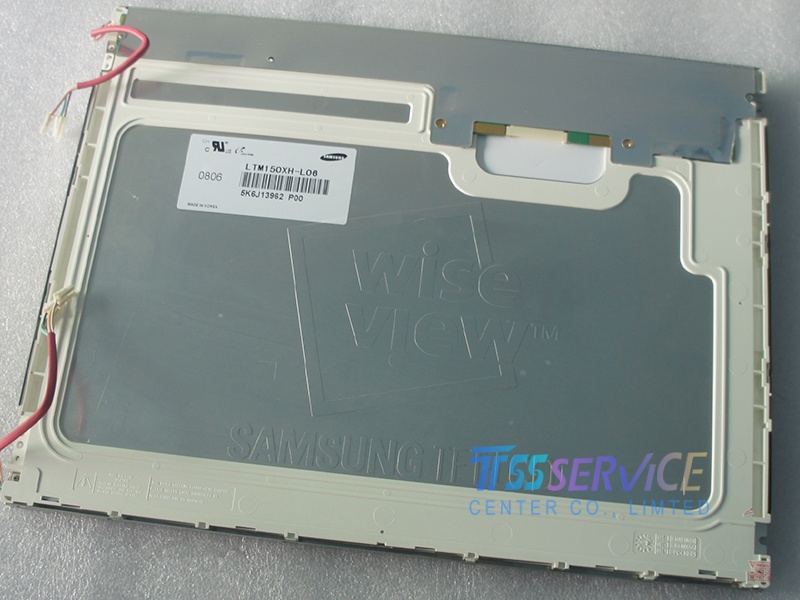

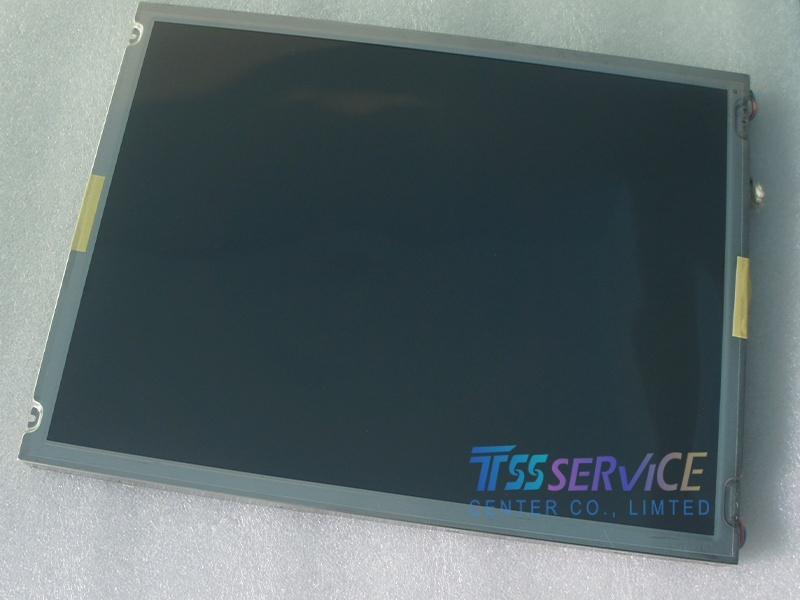

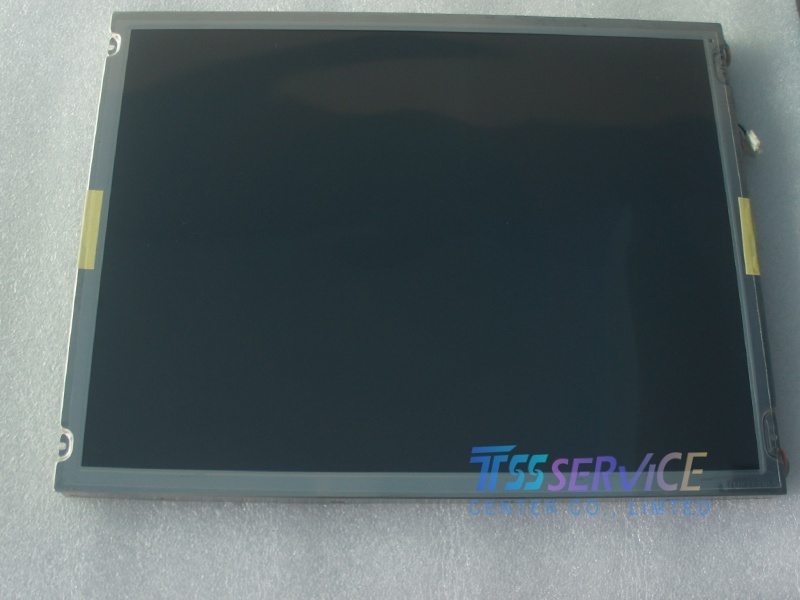

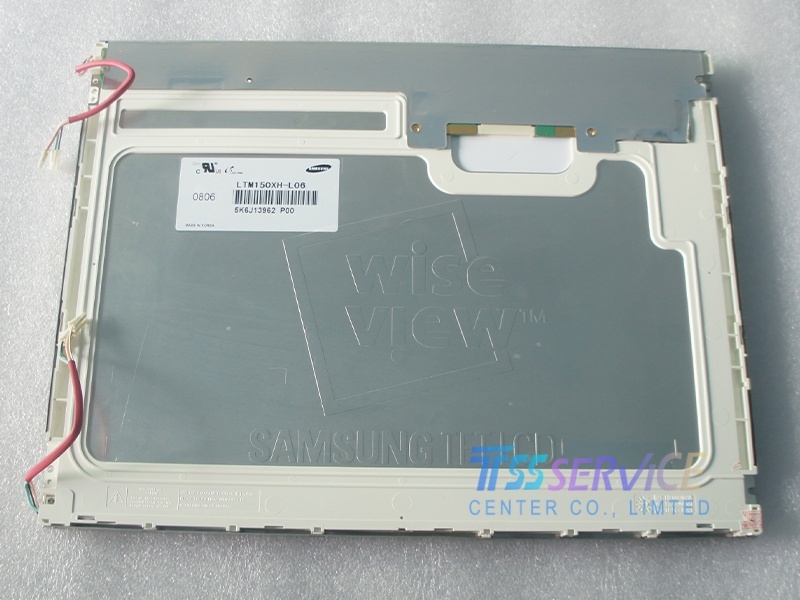

LTM150XH-L06 | Samsung 15.0" XGA TN Industrial TFT-LCD Panel
LTM150XH-L06 is a 15-inch XGA industrial-grade a-Si TN TFT LCD panel manufactured by Samsung. It adopts 4-lamp CCFL backlight, single-channel 8-bit LVDS 20-pin interface, 400 cd/m² high brightness, matte anti-glare 3H hard coating, standard industrial temperature resistance and classic 4:3 XGA resolution. It features stable optical performance, long backlight service life and mature signal compatibility, widely used for industrial HMI, rack-mounted monitors, medical auxiliary equipment, test instruments and legacy automation screen replacement projects.
Specification Parameter Table
| Parameter Item |
Specification Details |
| Part Number |
LTM150XH-L06 |
| Manufacturer |
Samsung Electronics |
| Display Size |
15.0 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
1024(RGB) × 768 pixels (XGA) |
| Display Technology |
a-Si TFT-LCD, TN mode, Normally White, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.297 × 0.297 mm |
| Active Area (AA) |
304.128 mm (W) × 228.096 mm (H) |
| Overall Outline Dimension |
331.6 × 254.8 × 13 mm |
| Typical Brightness |
400 cd/m² |
| Typical Contrast Ratio |
400:1 |
| Viewing Angle (L/R/U/D, CR≥10) |
70° / 70° / 60° / 65°, optimal viewing direction: 6 o'clock |
| Response Time (Tr/Td) |
5 ms / 20 ms (Typ.) |
| Display Color Depth |
16.2M true colors (8-bit), 65% CIE1931 color gamut |
| Backlight System |
4 CCFL lamps, service life ≥ 35,000 hours, without built-in driver |
| Signal Interface |
Single-channel LVDS, 8-bit, 20-pin FPC connector |
| Logic Supply Voltage |
3.3 VDC (Typ.) |
| Refresh Rate |
60 Hz |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
-25°C ~ +60°C |
| Touch Function |
Without touch panel (resistive/capacitive touch can be customized externally) |
| Surface Treatment |
Matte anti-glare polarizer (Haze 25%), 3H scratch-resistant hard coating |
| Net Weight |
Max 1.35 kg |
| Compliance Standard |
RoHS compliant |
| Production Status |
Discontinued legacy industrial panel, mass stock for equipment maintenance replacement |
