LTM170EU-L25 17 inch 1280×1024 a-Si TFT-LCD Module For Samsung

Name: LTM170EU-L25 17 inch 1280×1024 a-Si TFT-LCD Module For Samsung
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LTM170EU-L25
Price: 95 USD
Availability: InStock

SKU: LTM170EU-L25

Model: LTM170EU-L25
Panel Size: 17.0 inches (diagonal)
Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
Resolution: 1280 (RGB) × 1024 (SXGA), 96 PPI

0.0 (0 Reviews)

0 Sold

~~$98.00~~ $95.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

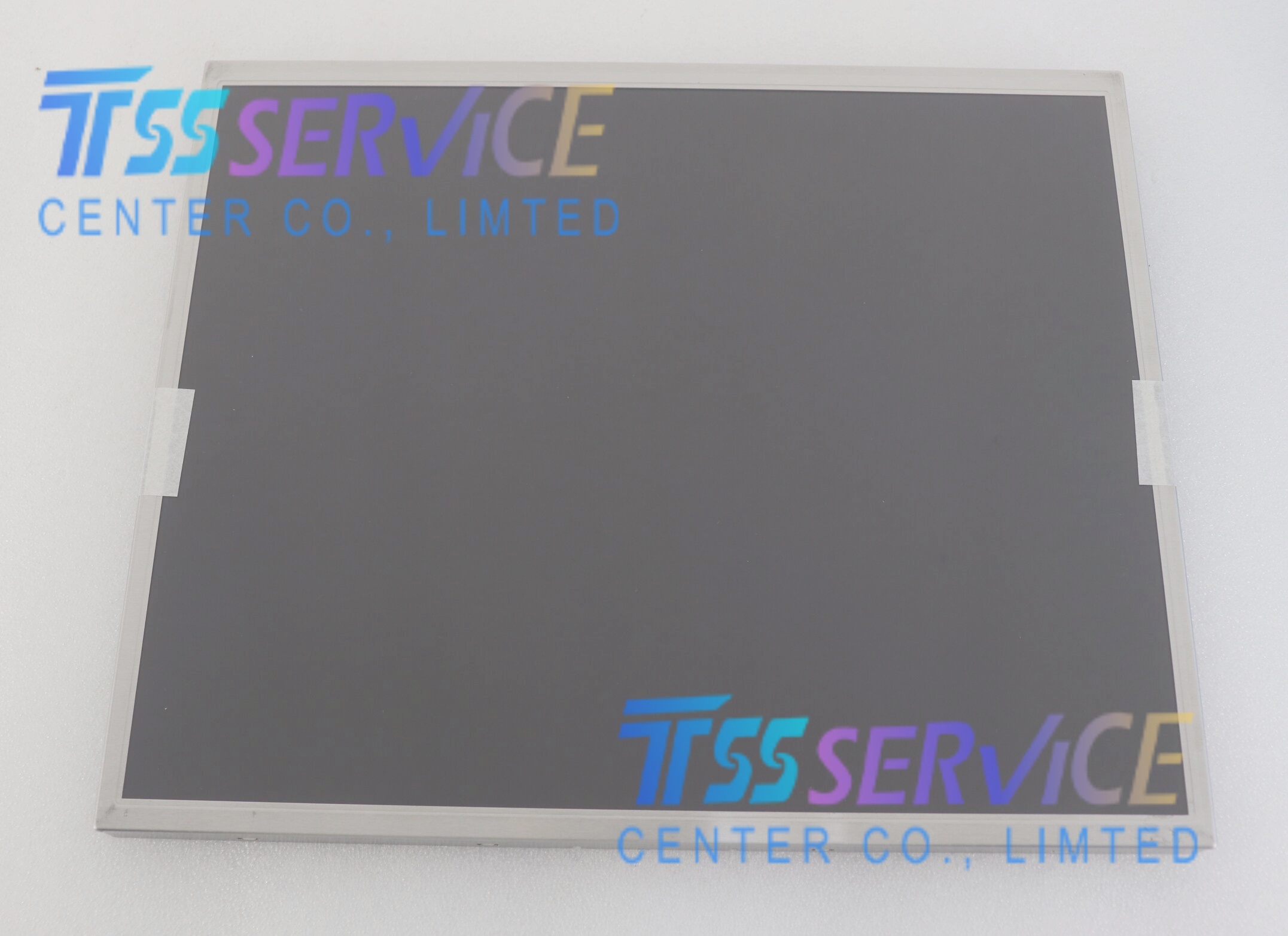

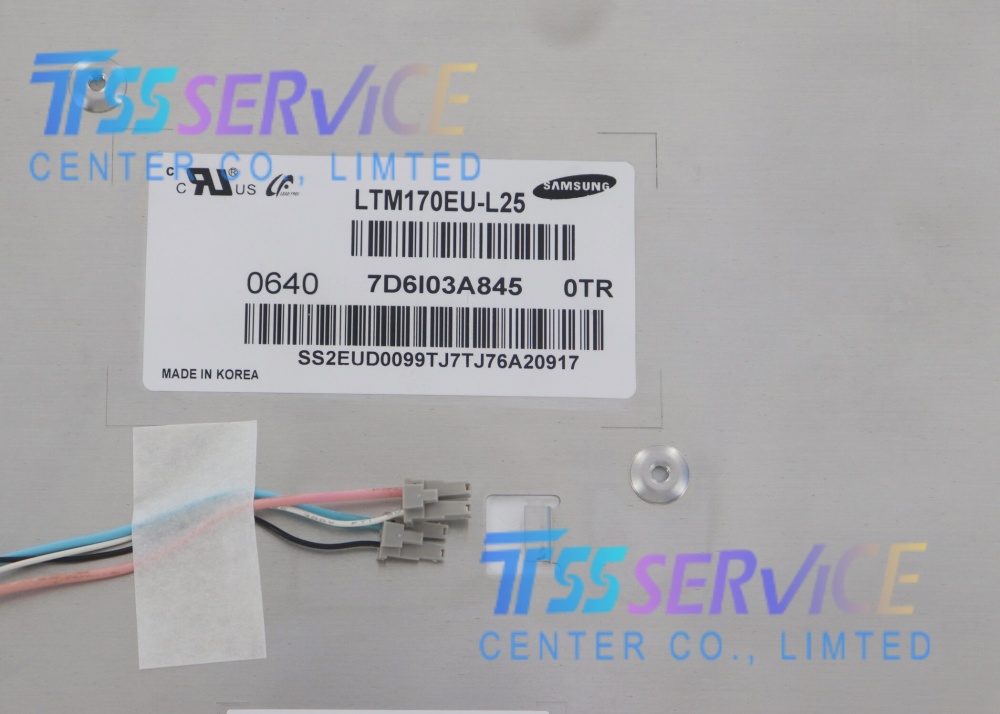

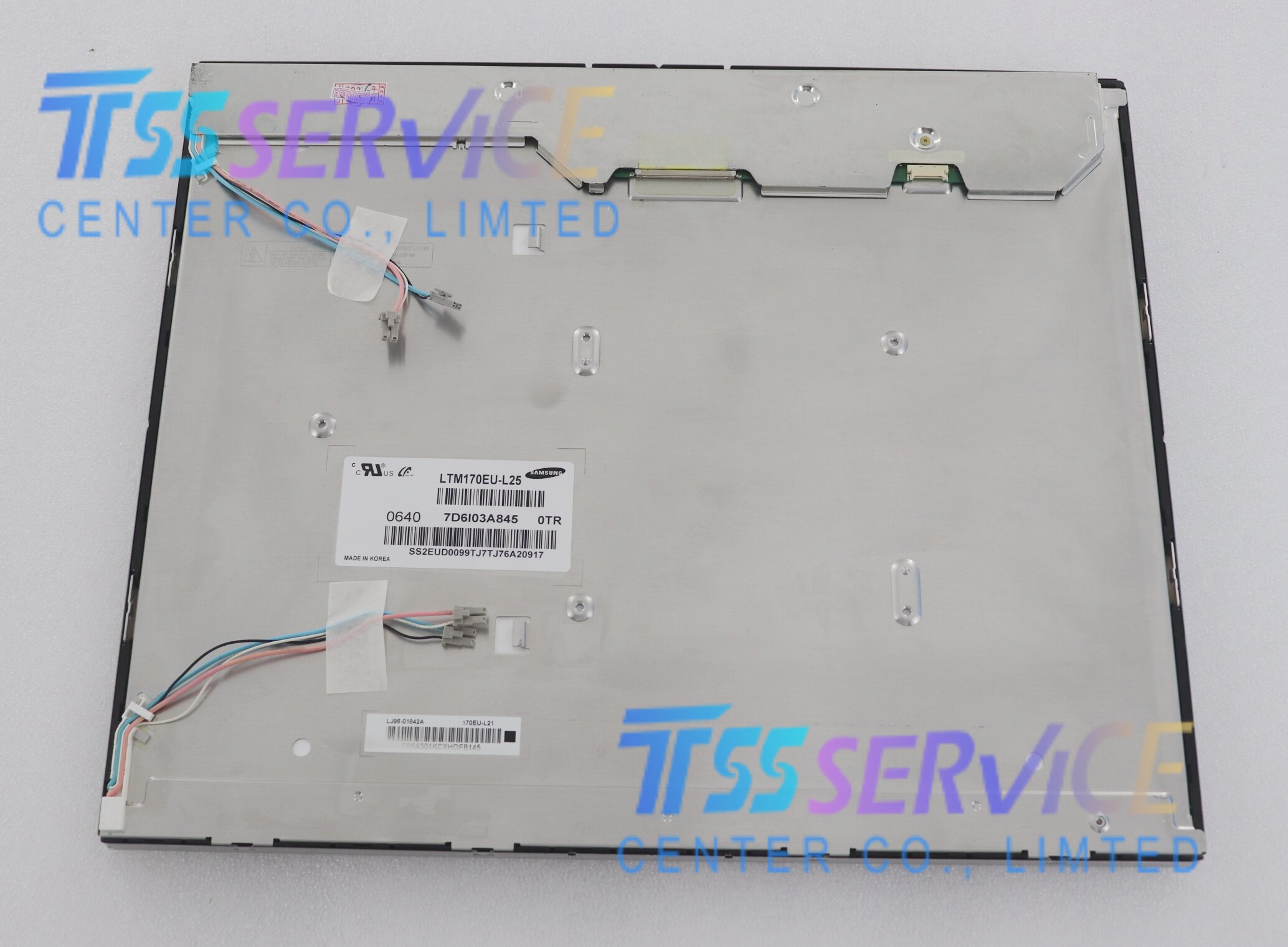

LTM170EU-L25 17 inch 1280×1024 a-Si TFT-LCD Module For Samsung

Parameter	Specification
Brand	Samsung
Model	LTM170EU-L25
Panel Size	17.0 inches (diagonal)
Panel Type	a-Si TFT-LCD, LCM (Liquid Crystal Module)
Resolution	1280 (RGB) × 1024 (SXGA), 96 PPI
Display Area	337.92 mm (W) × 270.336 mm (H)
Pixel Configuration	RGB Vertical Stripe
Pixel Pitch	0.264 mm × 0.264 mm (H×V)
Display Mode	TN, Normally White, Transmissive
Brightness	400 cd/m² (Typical)
Contrast Ratio	700:1 (Typical)
Viewing Angle	70°/70°/75°/60° (L/R/U/D, CR≥10)
Response Time	2/6 ms (Typical, Tr/Td)
Color Depth	16.2M colors, 72% NTSC
Backlight	4 × CCFL (Cold Cathode Fluorescent Lamp), no driver
Interface	30-pin LVDS (2 channels, 8-bit)
Input Voltage	5.0V (Typical)
Overall Dimensions	358.5 mm (W) × 296.5 mm (H) × 17.5 mm (D)
Weight	Approx. 1.95 kg (Max.)
Aspect Ratio	5:4 (Landscape)
Surface Treatment	Glossy (Haze 0%), Hard coating (2H), Anti-reflective
Operating Temperature	0 ~ 50°C
Storage Temperature	-25 ~ 60°C
Compliance	RoHS Certified

Typical Applications

Industrial Automation: Industrial control panels, PLC/HMI interfaces, and machinery operation monitors for factory automation.
Medical Devices: Medical imaging displays, patient monitoring systems, and diagnostic equipment requiring reliable visual output.
Desktop Monitors: Standard and industrial-grade desktop monitors for office and professional environments.
Embedded Systems: Human-machine interfaces for embedded devices, test/measurement equipment, and smart display terminals.
Retail & Kiosks: Industrial-grade monitors for point-of-sale (POS) systems and self-service kiosks.
