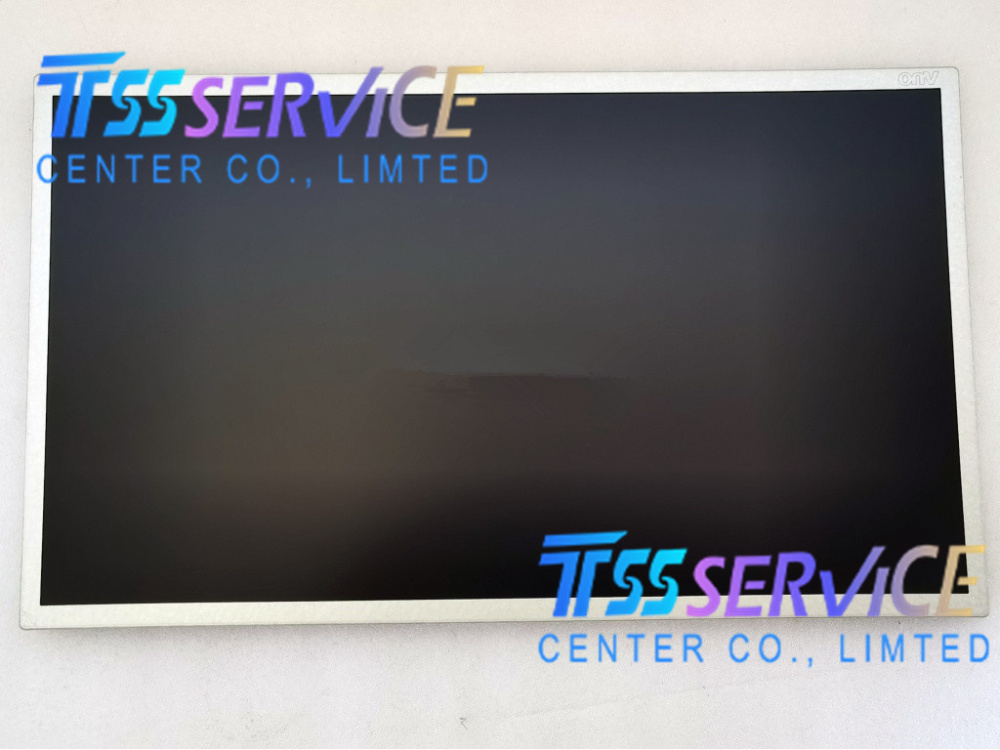

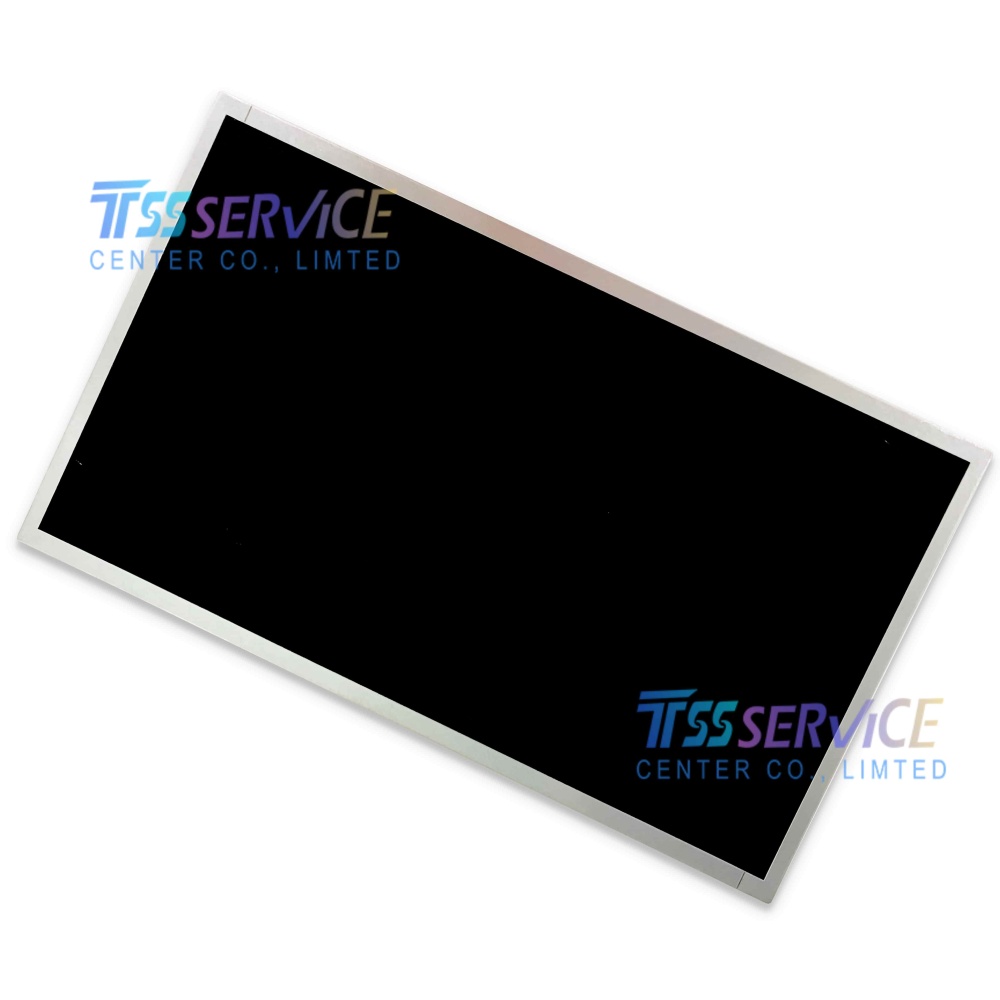

Samsung 18.5 inch 1366×768 LCD Panel Display LTM185AT04 For Industrial
| Category |
Parameter |
Details |
| General |
Model |
LTM185AT04 |
|
Brand |
Samsung |
|
Panel Type |
a-Si TFT-LCD (Transmissive, TN Mode, Normally White) |
|
Size |
18.5 inches (Diagonal) |
|
Aspect Ratio |
16:9 |
|
Resolution |
1366 × 768 (WXGA), 84 PPI |
|
Pixel Arrangement |
RGB Vertical Stripe |
| Optical |
Brightness |
250 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) |
|
Display Colors |
16.7M (6-bit Hi-FRC) |
|
Response Time |
5 ms (Typ., Tr+Td) |
|
Viewing Angle |
85/85/80/80 (Typ.)(CR≥10) |
|
Surface Treatment |
Matte (Haze 25%), Hard-coating (3H) |
| Mechanical |
Active Display Area |
409.8 (H) × 230.4 (V) mm |
|
Module Outline |
430.37 (H) × 254.6 (V) × 12.3 (D) mm |
|
Weight |
1.60 kg (Max.) |
| Electrical & Interface |
Signal Interface |
LVDS (1 ch, 8-bit), 30-pin Connector |
|
Input Voltage |
5.0 V (Typ.) |
|
Backlight |
WLED (12S4P), 30K Hours Life |
|
Operating Frequency |
60 Hz (Typ.) |
| Environment |
Operating Temperature |
0 ~ 50 °C |
|
Storage Temperature |
-25 ~ 60 °C |
|
Compliance |
RoHS, TCO'03 |
The LTM185AT04 is widely used in professional display systems, including：
- Workstation & Desktop Monitors
Delivers sharp, clear visuals for office work, design, and daily computing with its 1366×768 resolution and 250 cd/m² brightness, ensuring comfortable long-hour viewing.
- AV Application Products
Ideal for display terminals in audio-visual equipment, such as conference systems, educational devices, and home theater setups, thanks to its compact size and low power consumption.
- Industrial Machine Monitors
Suited for industrial control systems, medical equipment, and automated machinery interfaces. Its robust TN panel and wide operating temperature range (0~50°C) ensure stable performance in industrial environments.
