LCD Display for SAMSUNG 19" TFT LCD PANEL LTM190E4-L02 For Industrial

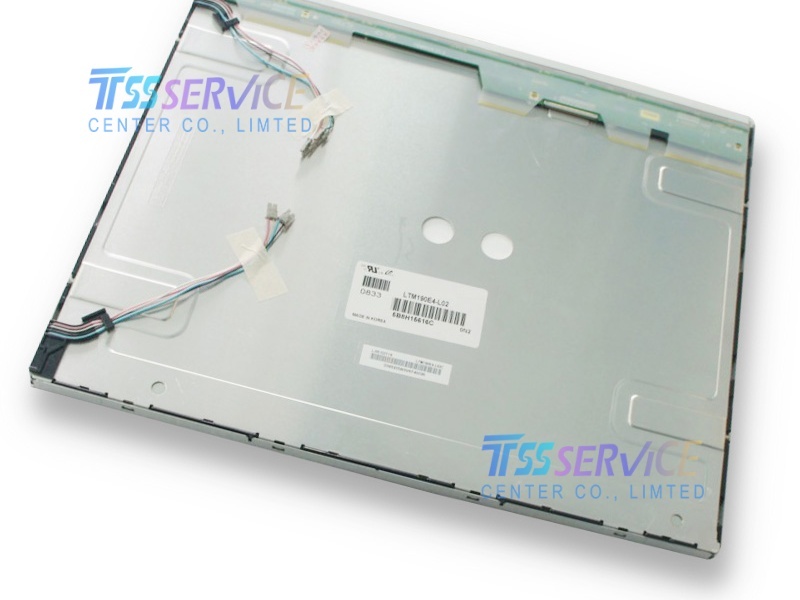

Name: LCD Display for SAMSUNG 19" TFT LCD PANEL LTM190E4-L02 For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LTM190E4-L02
Price: 95 USD
Availability: InStock

SKU: LTM190E4-L02

Condition: New Original
Warranty: 90 days
Shipping: DHL/ Fedex/ 4PX express/ SF express
Lead time: 1-3 days
Packaging: Bubble pad+Paper box

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $95.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

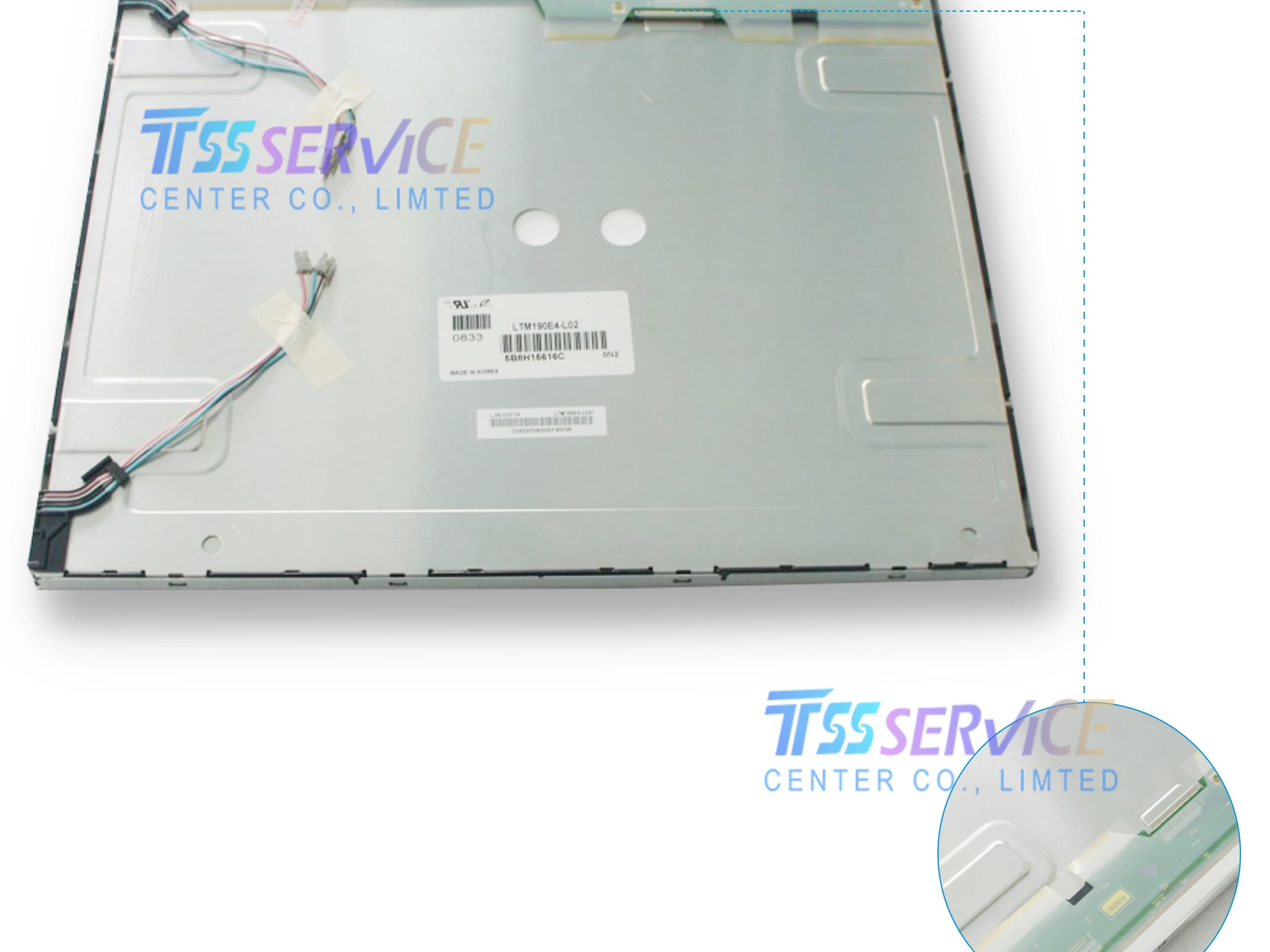

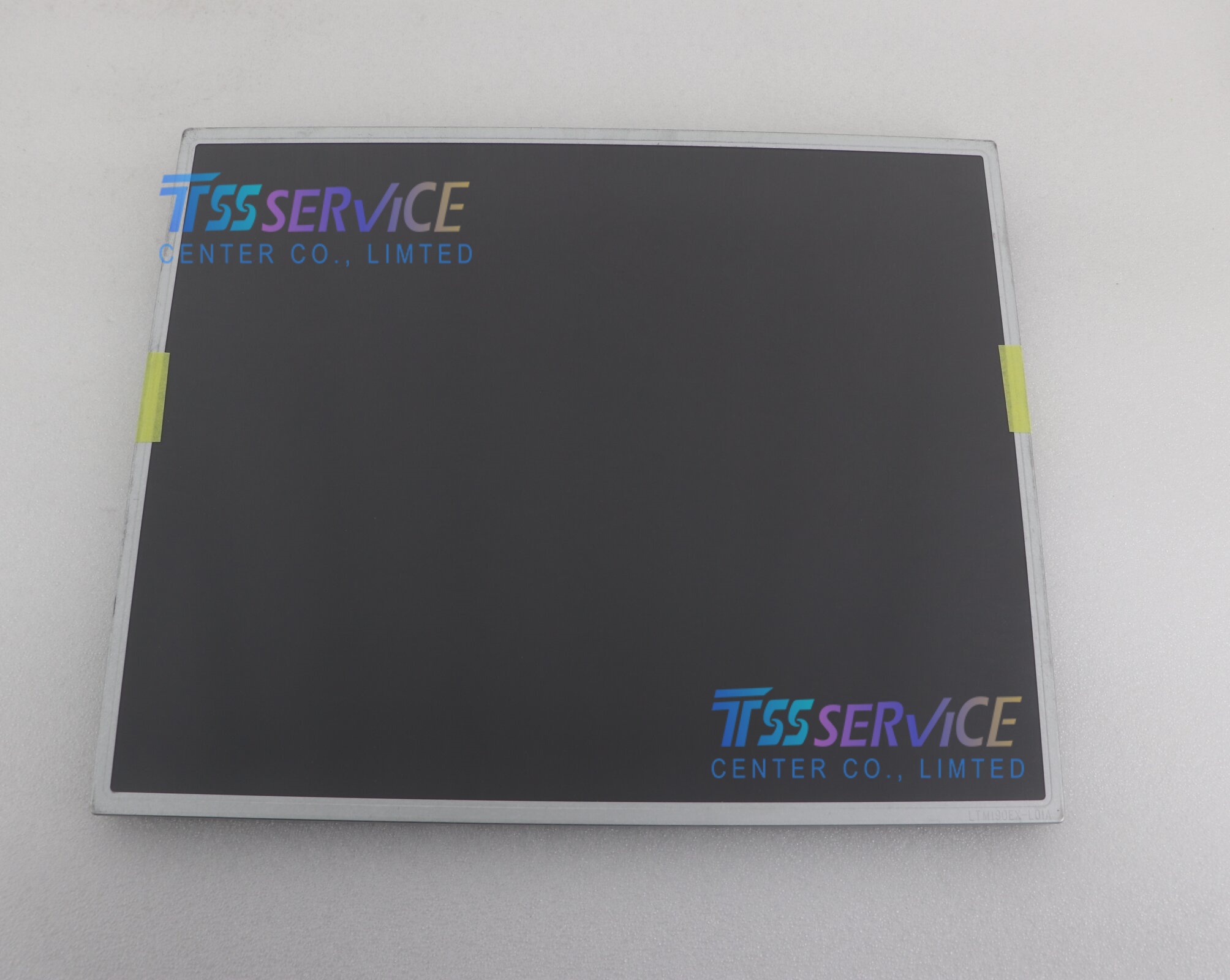

LTM190E4-L02 LCD Display is a 19-inch LCD screen from Samsung brand without touch. It has a resolution of 1280x1024 pixels (SXGA), a brightness of 250 cd/m ², a input voltage of 5.0V, and a working frequency of 75Hz. With a contrast ratio of 1500:1 and a wide operating temperature, this LCD screen is mainly used in these fields: Factory automation equipment field.

SPECIFICATION

Diagonal Size	19.0"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI	Pixel Format	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm	Bezel Opening	380.2(W)×305.0(H) mm
Signal Type	LVDS (2 ch, 8-bit) , 30 pins Connector	Voltage Supply	5.0V (Typ.)
