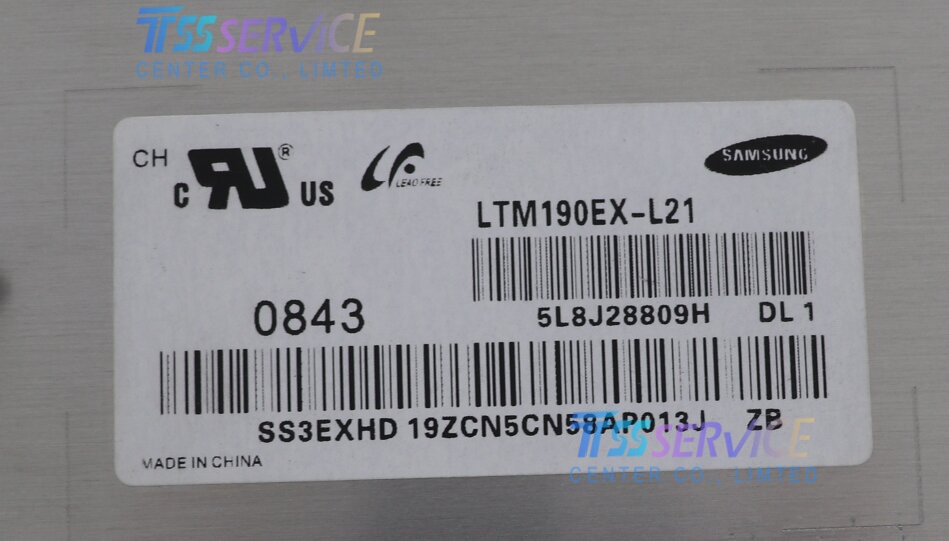

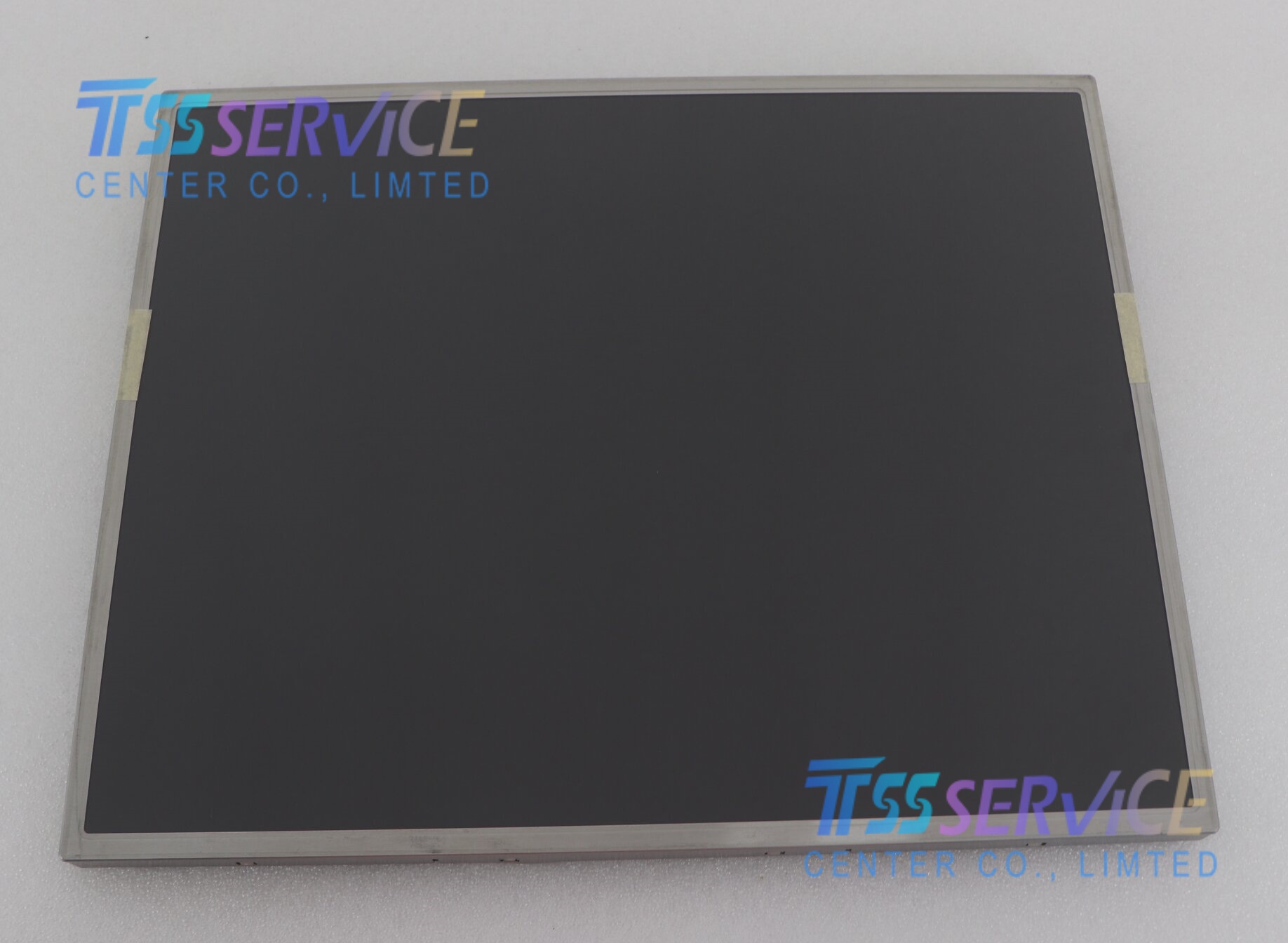

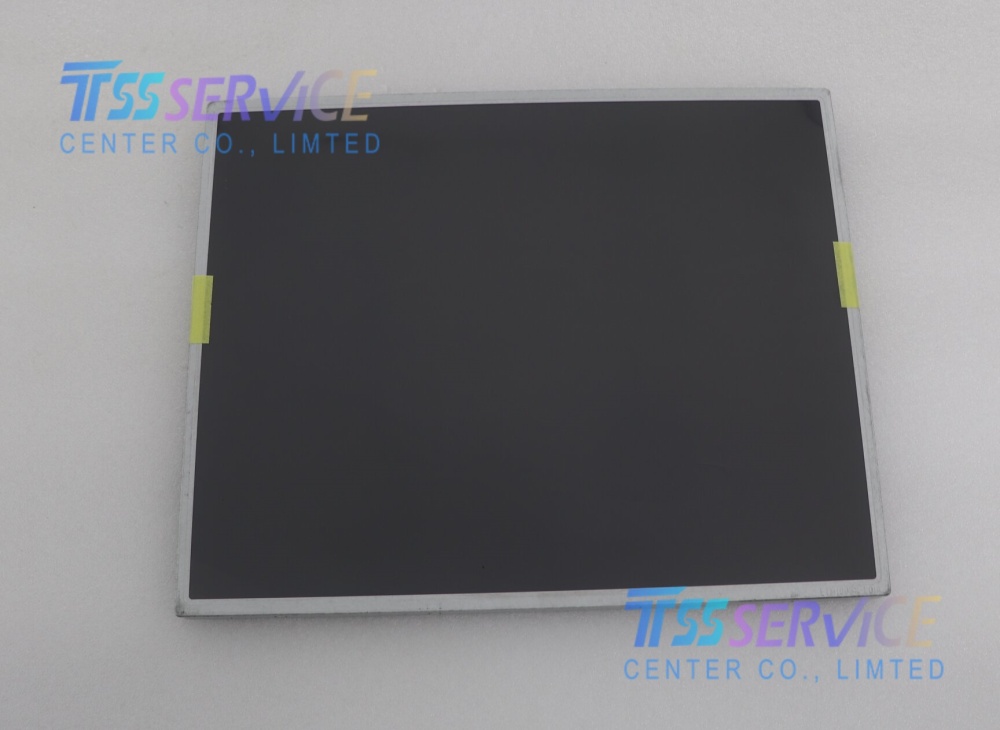

Samsung LTM190EX-L21 19 inch 1280×1024 LCD Panel For Industrial

Name: Samsung LTM190EX-L21 19 inch 1280×1024 LCD Panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LTM190EX-L21
Price: 118 USD
Availability: InStock

SKU: LTM190EX-L21

Model P/N: LTM190EX-L21
Diagonal Size: 19"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1280(RGB)×1024, SXGA 86PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$120.00~~ $118.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Samsung LTM190EX-L21 19 inch 1280×1024 LCD Panel For Industrial

Parameter	Value
Manufacturer	Samsung
Panel Model	LTM190EX-L21
Panel Type	a-Si TFT-LCD, TN, Normally White, Transmissive
Diagonal Size	19.0"
Resolution	1280 × 1024 (SXGA)
Aspect Ratio	5:4
Active Area	376.32 × 301.056 mm
Outline Dimensions	396.0 × 324.0 × 17.0 mm (Max.)
Pixel Format	RGB Vertical Stripe
Pixel Pitch	0.294 × 0.294 mm
Brightness	300 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.)
Color Depth	16.7M (8-bit)
Color Gamut	72% NTSC (CIE1931)
Response Time	1.7 / 6.3 ms (Typ.) (Tr / Td)
Viewing Angle	75/75/75/60° (L/R/U/D, CR≥10)
Surface	Anti-glare (Haze 25%), Hard coating (3H)
Backlight	CCFL, 4 lamps, 50,000 hrs, No driver
Refresh Rate	60 Hz
Signal Interface	LVDS (2 ch, 8-bit), 30 pins
Supply Voltage	5.0 V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-25 ~ 60 °C
Weight	2.25 kg (Max.)
Status	EOL (Mass Production: Q4 2005)
