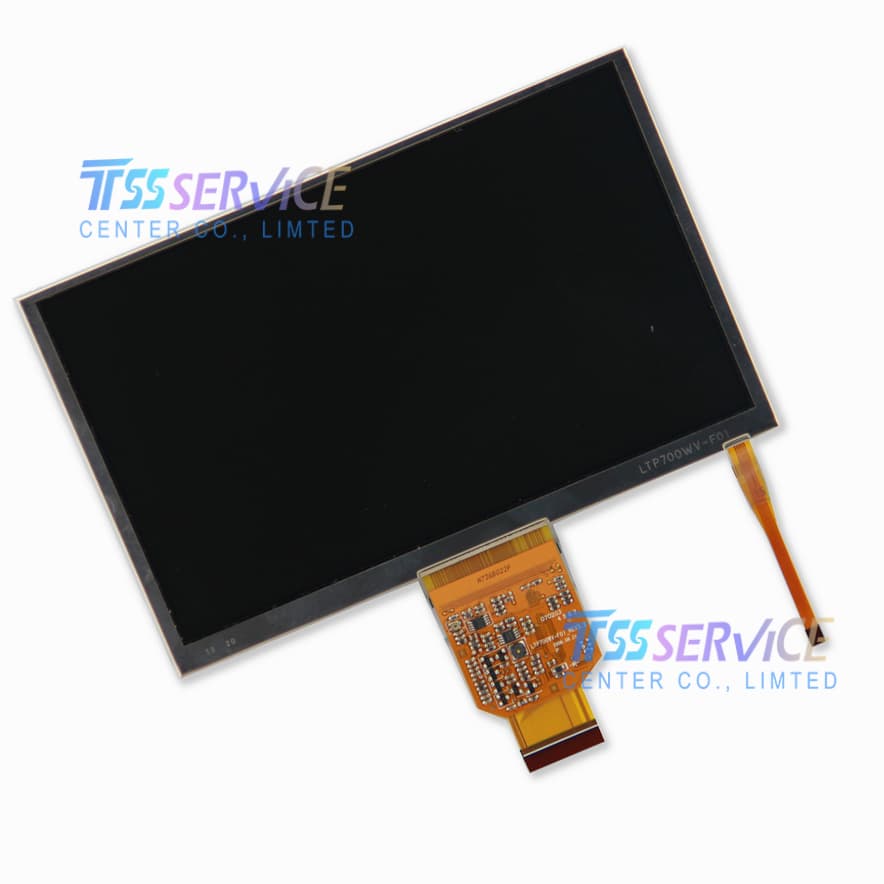

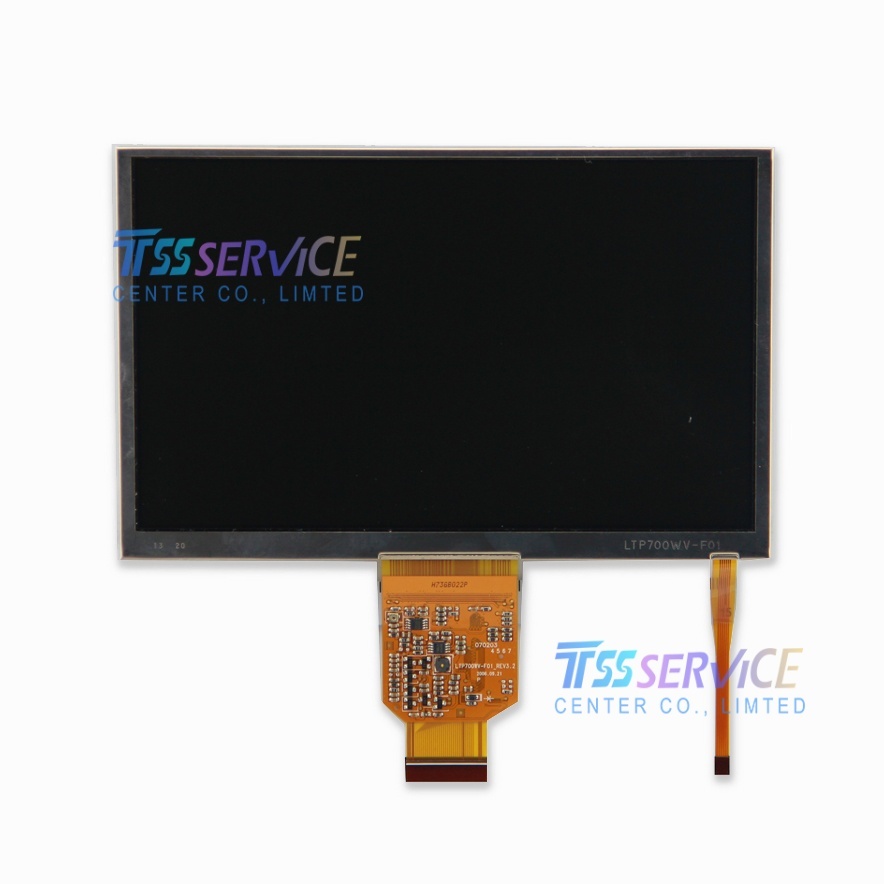

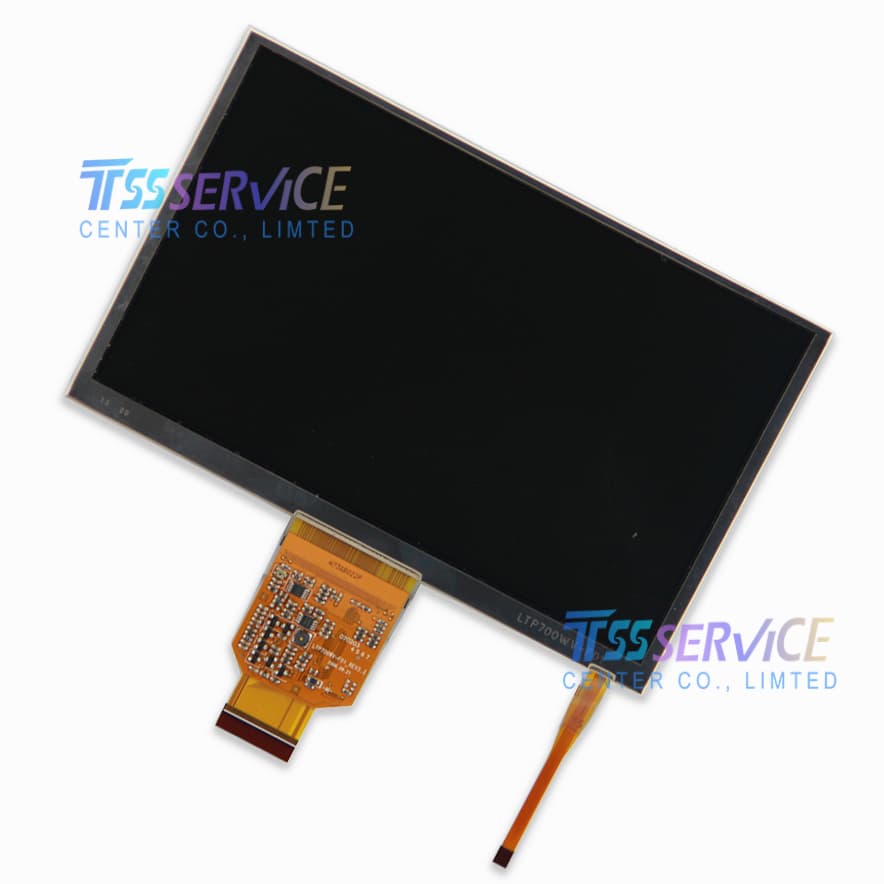

Samsung LTP700WV-F01 7 Inch 800×480 TFT LCD Panel Industrial Display Screen for HMI

Name: Samsung LTP700WV-F01 7 Inch 800×480 TFT LCD Panel Industrial Display Screen for HMI
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LTP700WV-F01
Price: 33 USD
Availability: InStock

SKU: LTP700WV-F01

Model No.: LTP700WV-F01
Brand: Samsung
Screen Size: 7.0 Inch Diagonal
Display Type: a-Si TFT-LCD, TN Normally White
Native Resolution: 800 × 480 (WVGA, RGB)

0.0 (0 Reviews)

0 Sold

~~$35.00~~ $33.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Samsung LTP700WV-F01 7 Inch 800×480 TFT LCD Panel Industrial Display Screen for HMI

Item	Detailed Parameter
Model No.	LTP700WV-F01
Brand	Samsung
Screen Size	7.0 Inch Diagonal
Display Type	a-Si TFT-LCD, TN Normally White
Native Resolution	800 × 480 (WVGA, RGB)
Aspect Ratio	15:9
Active Display Area	152.4 mm × 91.44 mm
Outline Dimension	163.2 mm × 104.0 mm × 3.6 mm
Typical Brightness	350 cd/m²
Contrast Ratio	300:1
Viewing Angle (U/D/L/R)	65° / 65° / 50° / 60° (CR≥10)
Response Time (Tr+Td)	22.7 ms Typical
Display Color	16.7M Colors
Refresh Rate	60Hz
Backlight	WLED (8S3P, without driver IC)
Signal Interface	40Pin FPC, Single Channel 8-bit Parallel RGB
Input Voltage	3.3V (VCC)
Net Weight	105g
Operating Temperature	-20℃ ~ +60℃
Storage Temperature	-30℃ ~ +70℃
Pixel Arrangement	RGB Vertical Stripe
Surface Treatment	Standard flat surface
