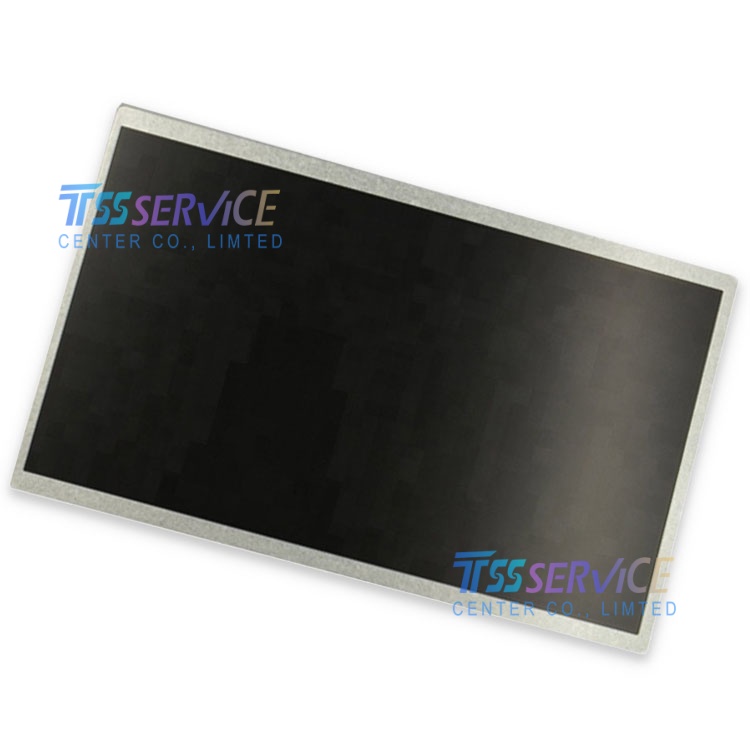

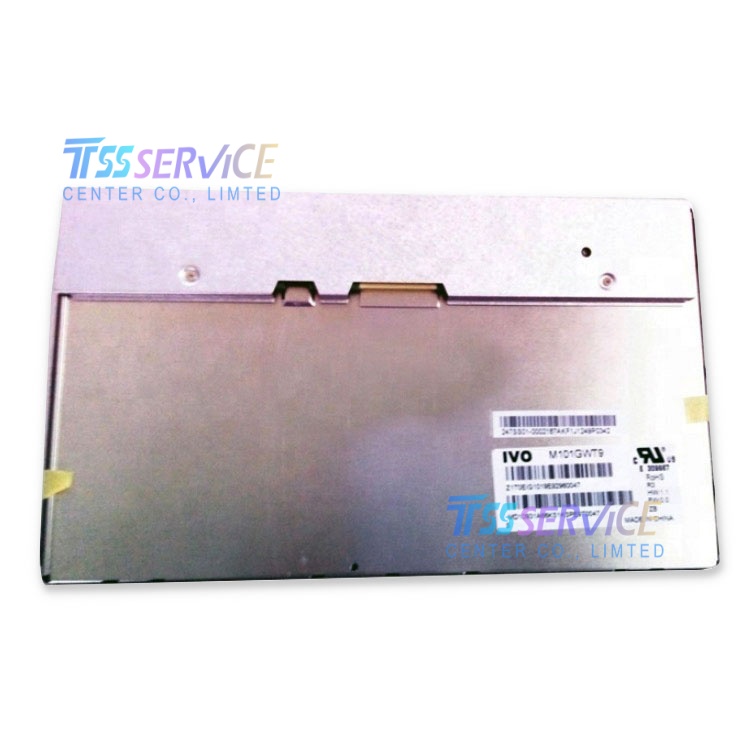

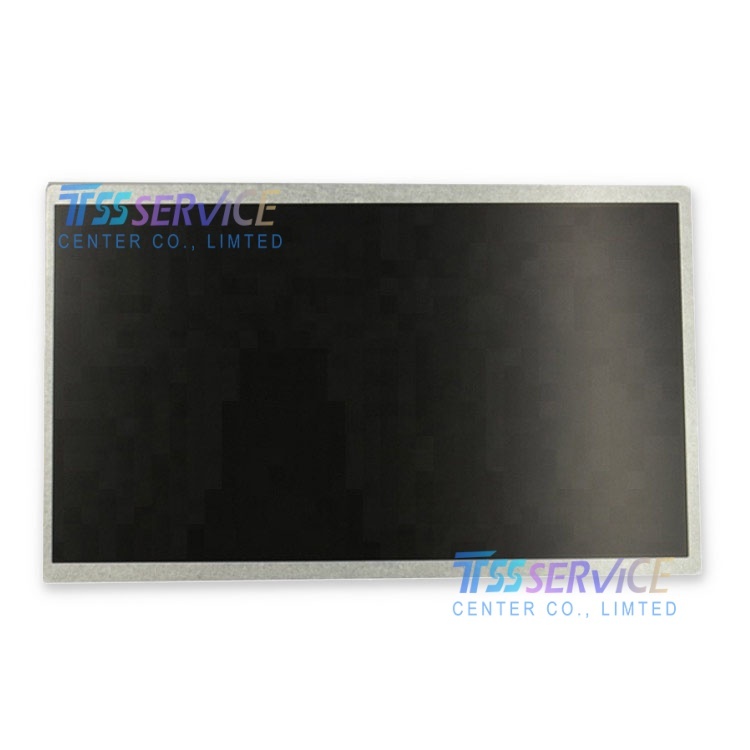

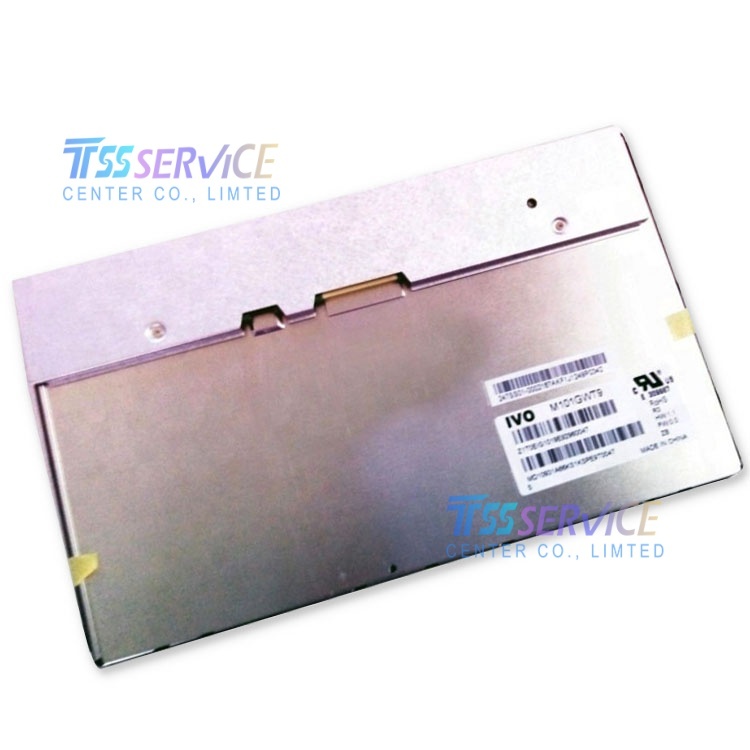

IVO 10.1 inch 1024×600 M101GWT9 R3 LCD Display Screen For Industrial
| Parameter |
English Details |
| Model |
M101GWT9 R3 |
| Brand |
IVO |
| Display Size |
10.1 inches |
| Panel Type |
a‑Si TFT‑LCD, LCM, TN, Normally White, Transmissive |
| Resolution |
1024(RGB) × 600, 16:9 WSVGA |
| Pixel Structure |
RGB Vertical Stripe |
| Display Area |
222.72(W) × 125.28(H) mm |
| Outline Size |
244(W) × 143(H) × 12.9(D) mm |
| Panel Weight |
400/440g (Typ./Max.) |
| Brightness |
640 cd/m² (Typ.) |
| Contrast Ratio |
800:1 (Typ.) (TM) |
| Viewing Angle |
80°/80°/80°/80° (Typ., CR ≥ 10) |
| Display Mode |
TN, Normally White, Transmissive |
| View Direction |
12 o'clock |
| Response Time |
16 ms (Typ., Tr+Td) |
| Display Colors |
262K/16.7M, 50% NTSC |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Light Source |
7S2P WLED, 50,000 hrs lifespan, with LED driver |
| Power Consumption |
4.85W (Typ.) |
| Interface |
LVDS (1 channel, 6/8‑bit), 20‑pin connector |
| Input Voltage |
3.3V (Typ.) |
| Operating Temperature |
-30 ~ +85 °C |
| Storage Temperature |
-40 ~ +95 °C |
| Vibration Resistance |
2.9G (28.4 m/s²) |
| Surface Treatment |
Antiglare, Hard coating (3H) |
Typical Applications (English)
- Automotive Displays: Infotainment systems, vehicle instrument clusters, rear‑seat entertainment, and commercial vehicle dashboards.
- Industrial HMI & Control: CNC machinery, factory automation terminals, PLC panels, and industrial PCs.
- Outdoor & Bright‑Light Environments: Outdoor kiosks, parking systems, and field‑test equipment (thanks to 640 cd/m² sunlight‑readable brightness).
- Medical Devices: Portable diagnostic equipment, patient monitors, and lab instruments requiring wide‑temperature reliability.
- Transportation & Special Vehicles: Forklifts, construction machinery, agricultural vehicles, and marine instrument panels.
