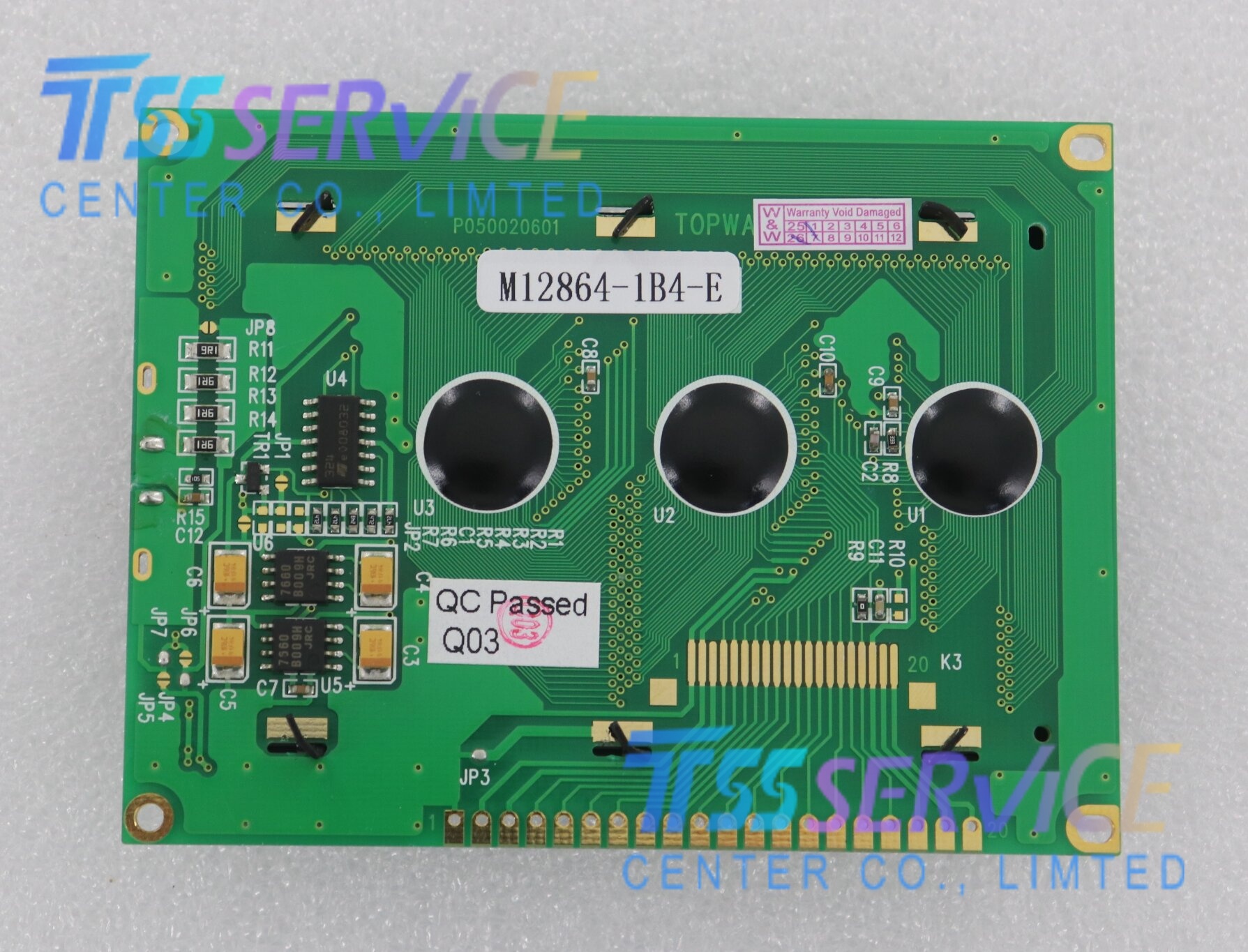

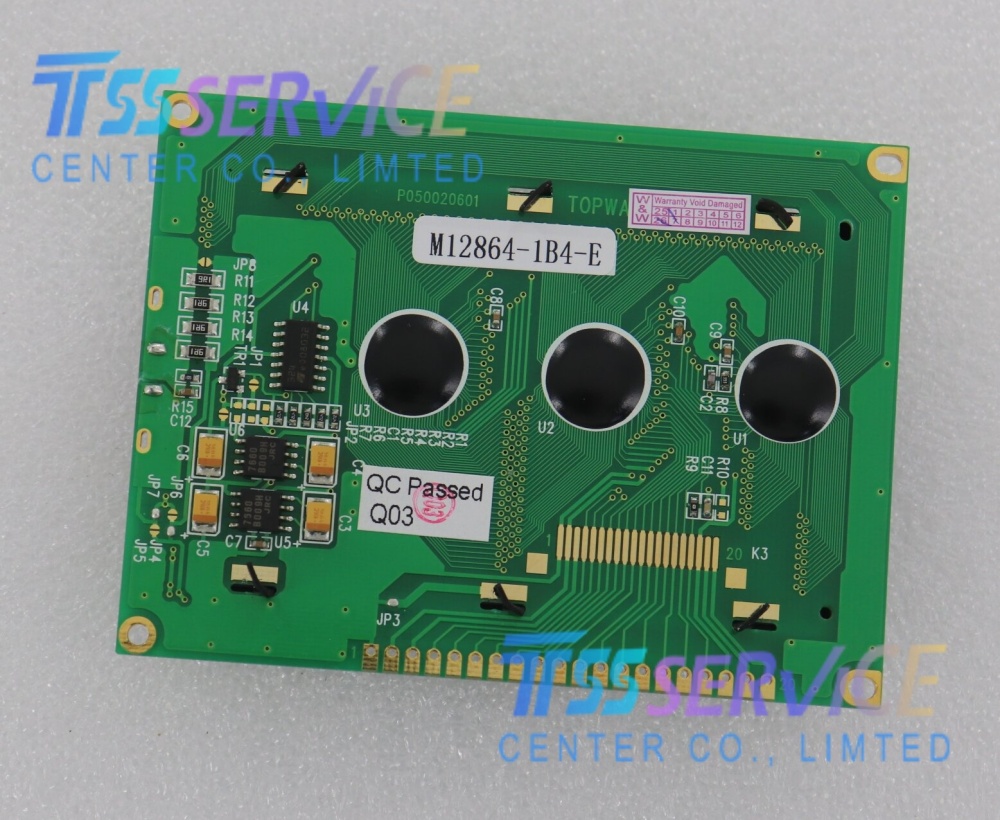

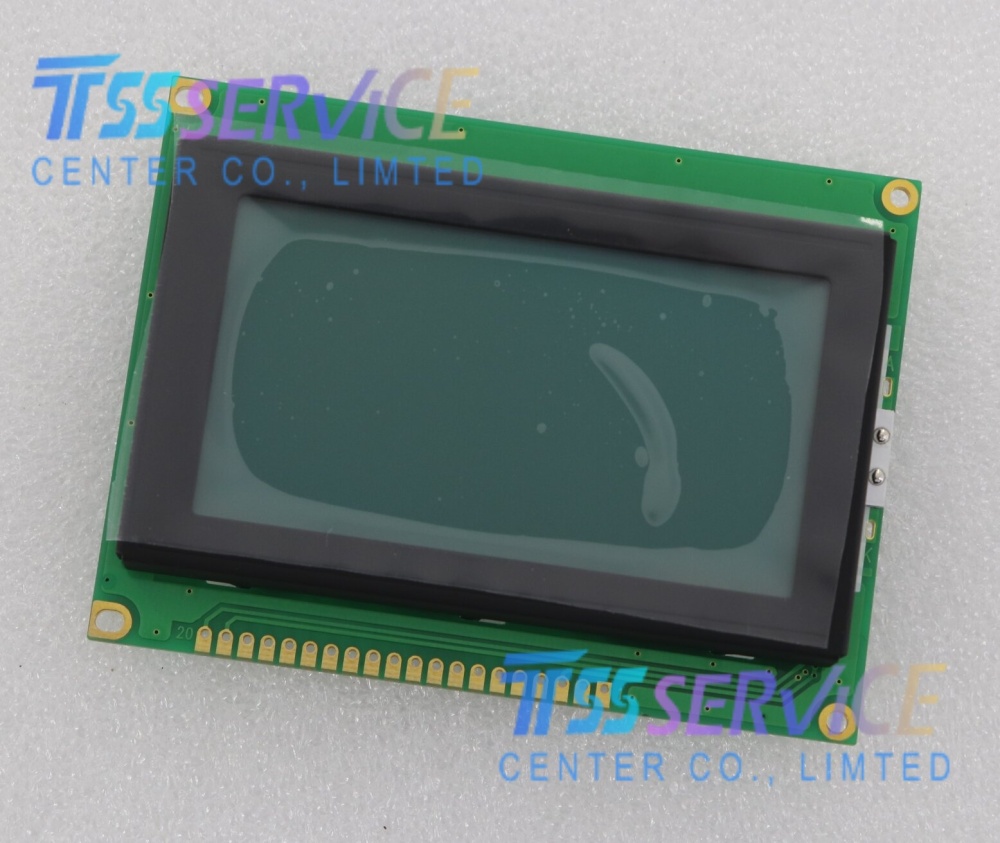

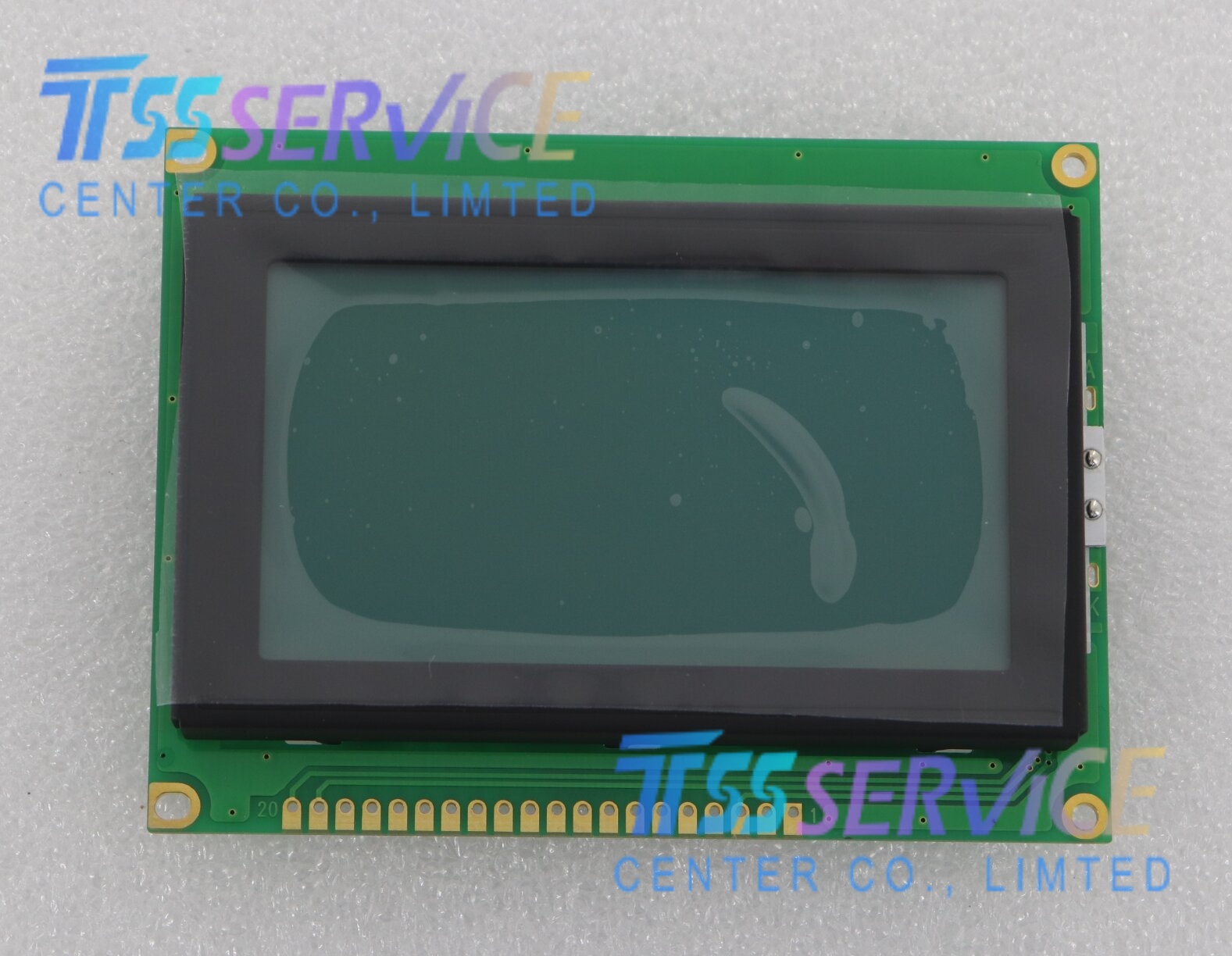

M12864-1B4-E Compatible LCD Panel Screen For Industrial

SKU: M12864-1B4-E
Model: M12864-1B4-E
Display Type: STN, Semi-transparent, Positive/Negative, Blue Film
Resolution: 128 × 64 pixels
Display Size: 5.7 inches
0.0 (0 Reviews)
0 Sold
$78.00 $72.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
1/1
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
  • M12864-1B4-E Compatible LCD Panel Screen For Industrial
  • Description
M12864-1B4-E Compatible LCD Panel Screen For Industrial
Parameter Specification
Model M12864-1B4-E
Display Type STN, Semi-transparent, Positive/Negative, Blue Film
Resolution 128 × 64 pixels
Display Size 5.7 inches
Viewing Direction 6 o’clock
Driver Duty/Bias 1/64 Duty, 1/9 Bias
Power Supply (VDD) 3.0V – 5.5V DC
Operating Current ≤200mA (without backlight)
Backlight Side-mounted high-brightness LED (Yellow/Blue/White)
Built-in Font 8192 × 16×16 Chinese characters, 128 × 16×8 ASCII characters
Interface 4/8-bit parallel, 2/3-wire serial
Controller T6963C (compatible)
Operating Temperature 0°C ~ +55°C
Storage Temperature -20°C ~ +60°C
RoHS Status Lead-free / RoHS Compliant

Typical Applications

  1. Industrial Control Panels
    • PLC/HMI interfaces, factory automation displays.
    • Real-time data visualization (pressure, temperature, flow).
  2. Medical Equipment
    • Patient monitors, diagnostic devices, portable medical instruments.
    • Clear text/graphics for medical parameters.
  3. Test & Measurement Instruments
    • Oscilloscopes, spectrum analyzers, power meters.
    • High contrast for lab/field environments.
  4. Embedded Systems & IoT Devices
    • Smart home controllers, gateway devices, data loggers.
    • Low power, wide voltage, easy MCU integration.
  5. Consumer Electronics
    • POS terminals, ticket printers, industrial handhelds.
    • Cost-effective for monochrome graphic needs.
