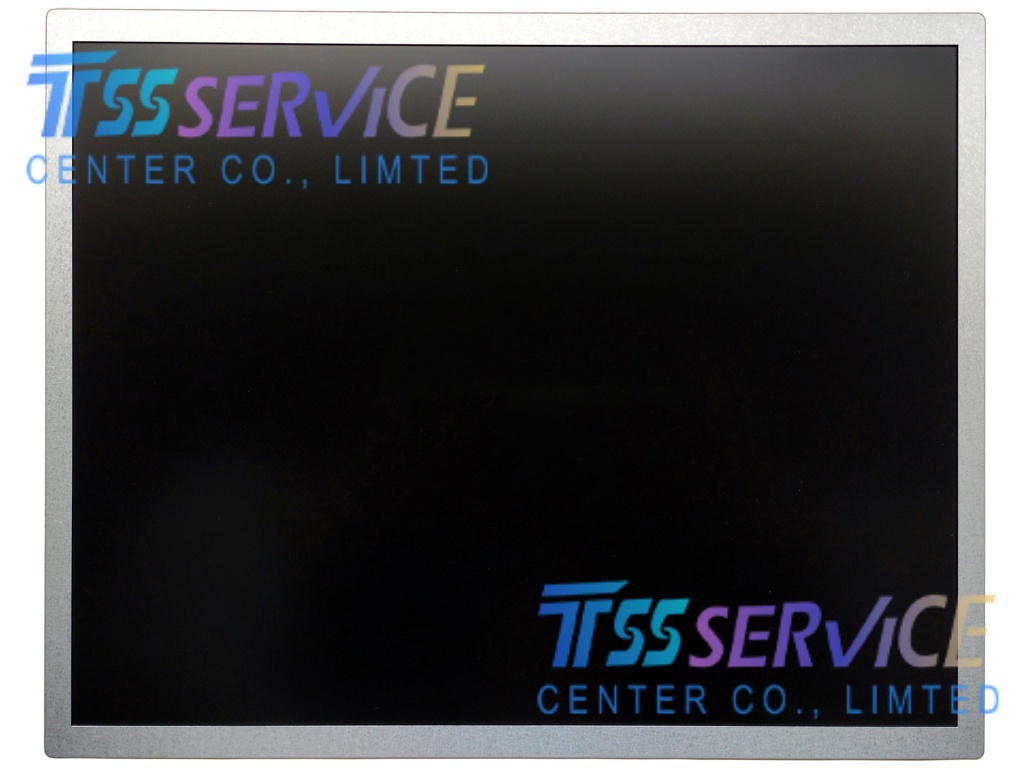

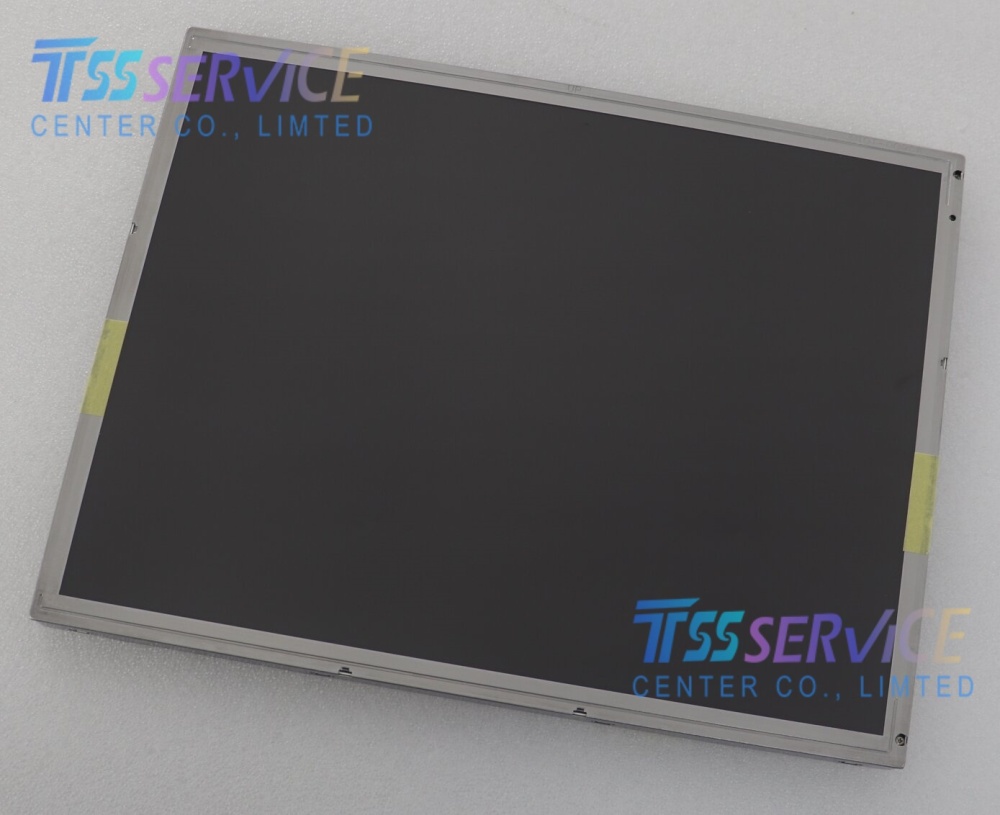

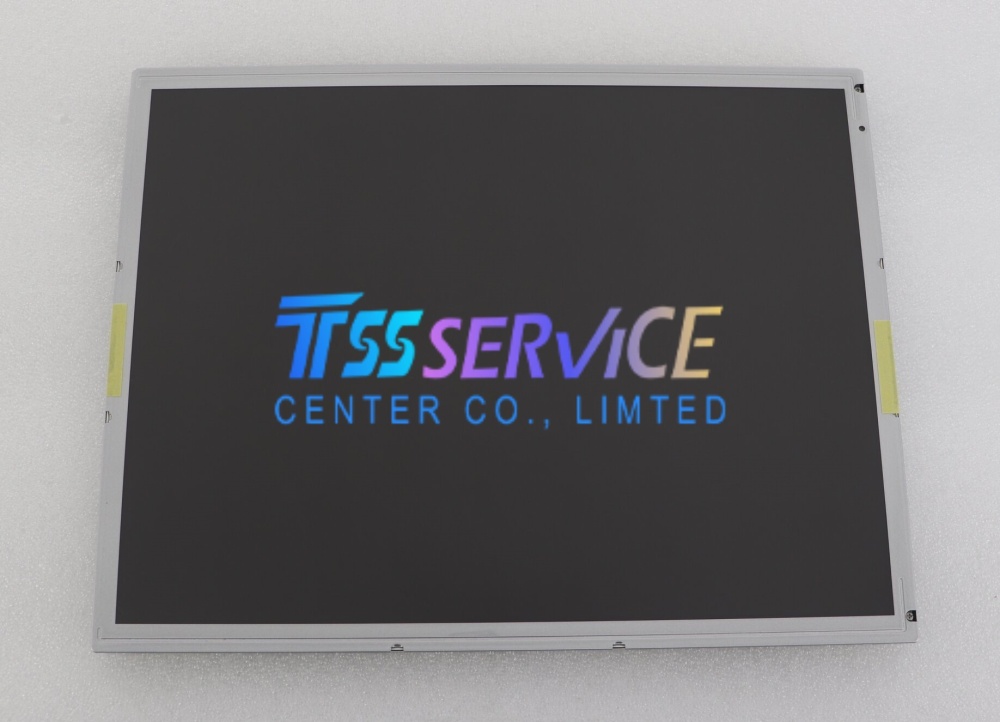

IVO M150GWX3 R0 15 inch 1024×768 LCD Display Screen For Industrial
| Parameter |
English Details |
| Model |
M150GWX3 R0 |
| Brand |
IVO |
| Display Size |
15.0 inches |
| Panel Type |
a‑Si TFT‑LCD, LCM, IPS, Normally Black, Transmissive |
| Resolution |
1024(RGB) × 768, 4:3 XGA |
| Pixel Format |
RGB Vertical Stripe |
| Display Area |
304.13(W) × 228.1(H) mm |
| Outline Size |
326.5(W) × 253.5(H) × 12.9(D) mm |
| Panel Weight |
1.67 Kgs (Max.) |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
800:1 (Typ.) (TM) |
| Viewing Angle |
85°/85°/85°/85° (Typ., CR ≥ 10) |
| Display Mode |
IPS, Normally Black, Transmissive |
| View Direction |
Symmetry |
| Response Time |
25 ms (Max., Tr+Td) |
| Display Colors |
16.7M, 70% NTSC |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Light Source |
WLED, 50,000 hrs lifespan, with LED driver |
| Power Consumption |
14.5W (Max.) |
| Interface |
LVDS (1 channel, 8‑bit), 20‑pin connector |
| Input Voltage |
3.3V (Typ.) |
| Operating Temperature |
-20 ~ +70 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Surface Treatment |
Antiglare, Hard coating (3H) |
Typical Applications (English)
- Industrial HMI & Control: CNC machinery, factory automation terminals, PLC control panels, industrial PCs.
- Medical Equipment: Diagnostic devices, patient monitors, and lab instruments requiring stable color reproduction.
- Retail & POS Systems: Industrial touch displays, kiosks, and self‑service terminals.
- Transportation & Special Vehicles: Construction machinery dashboards, marine instrument panels, and forklift terminals.
- Embedded Systems: Industrial all‑in‑one computers, embedded industrial displays, and smart cabinet terminals.
