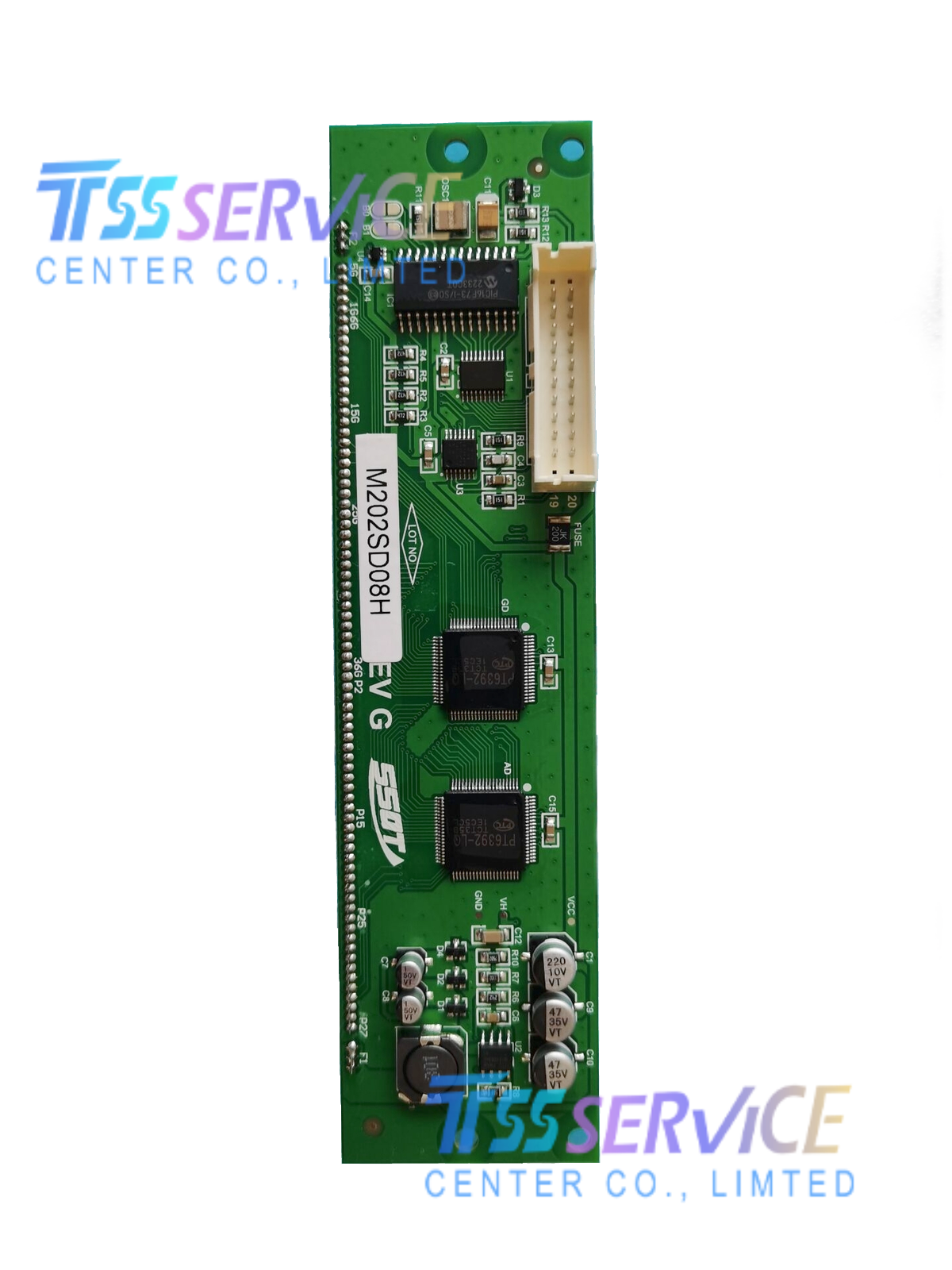

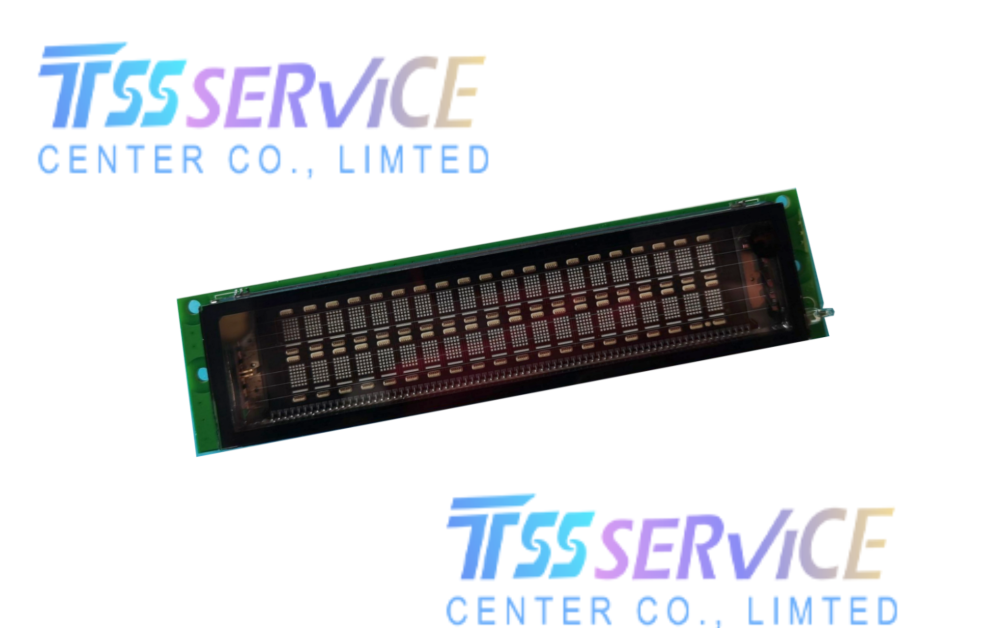

M202SD08N compatible LCD Display Screen For Industrial

Name: M202SD08N compatible LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: M202SD08N
Price: 318 USD
Availability: InStock

SKU: M202SD08N

Model: M202SD08N
Display Type: VFD (Vacuum Fluorescent Display)
Display Format: 20 Characters × 2 Lines (5×7 dots + cursor)

0.0 (0 Reviews)

0 Sold

~~$320.00~~ $318.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

M202SD08N compatible LCD Display Screen For Industrial

Item	Specification	Unit
Model	M202SD08N	–
Display Type	VFD (Vacuum Fluorescent Display)	–
Display Format	20 Characters × 2 Lines (5×7 dots + cursor)	–
Active Area (W×H)	102.3 × 17.5	mm
Outer Dimensions (W×H×T)	155.0 × 39.0 × 20.6 (max)	mm
Dot Pitch	0.75 × 0.75	mm
Dot Size	0.5 × 0.5	mm
Character Size	3.5 × 5.0	mm
Illumination Color	Green (λp=505 nm)	–
Luminance	Typ. 500, Min. 350	cd/m²
Operating Voltage	Logic: 5.0 (4.5–5.5) / LCD: 4.8 (4.4–5.2)	V
Operating Current	Typ. 4.5	mA
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-40 ~ +85	°C
Humidity (Op./Stg.)	20–85 / 20–90 (non-condensing)	%RH
Weight	Approx. 100	g
Interface	Parallel (8-bit) / TTL level	–

Typical Applications

Industrial Control & HMI: Injection molding machines, CNC equipment, factory automation panels.
Medical Equipment: Patient monitors, diagnostic devices, lab instruments.
Automotive & Transportation: On-board displays, vehicle navigation, industrial vehicle dashboards.
POS & Banking: ATMs, cash registers, ticket terminals.
Smart Home & Appliances: High-end ovens, HVAC controllers, industrial refrigerators.
Marine & Avionics: Navigation displays, instrument panels (high reliability, wide temp).
