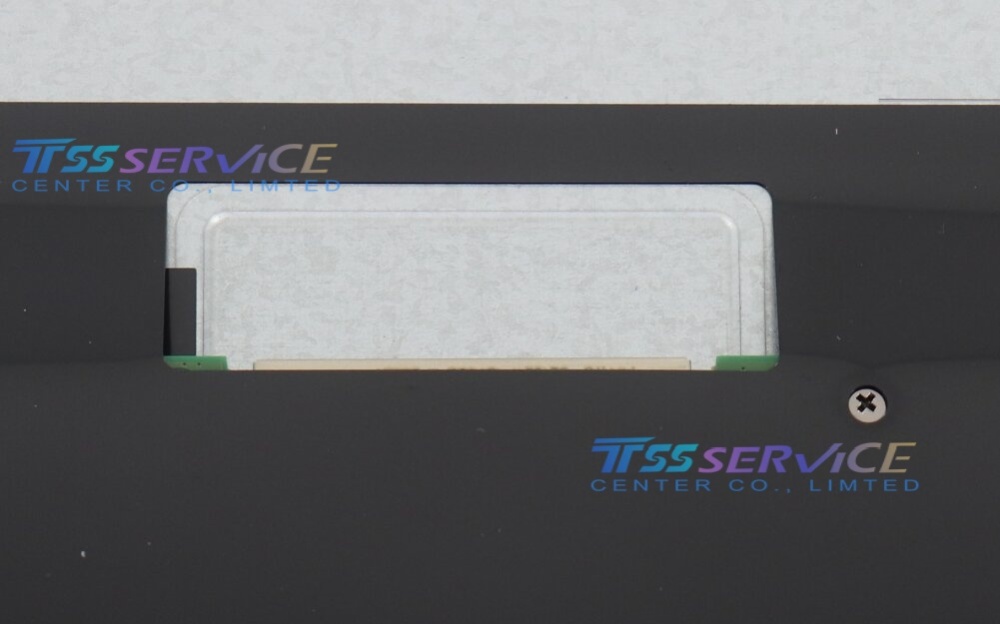

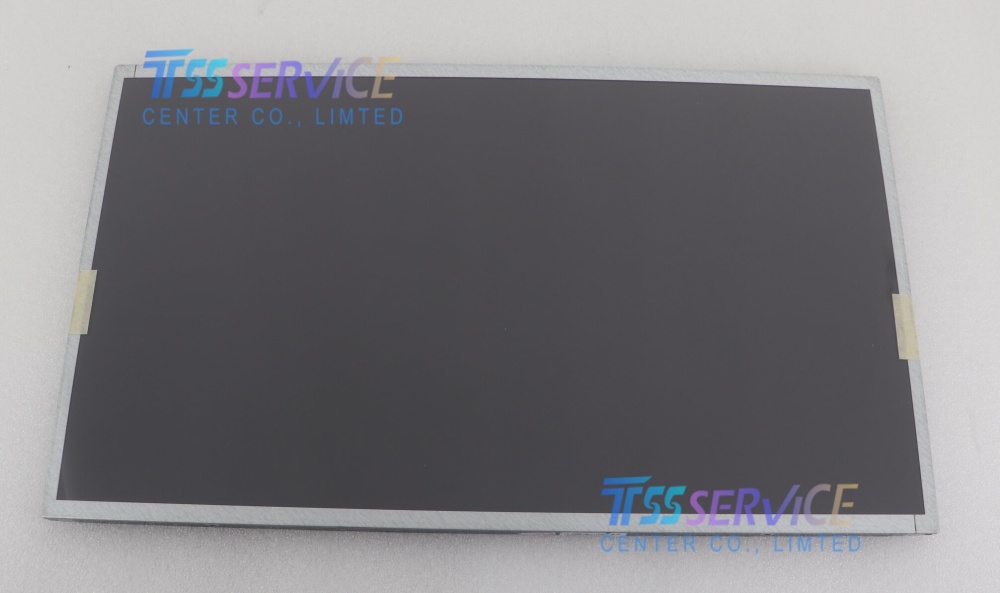

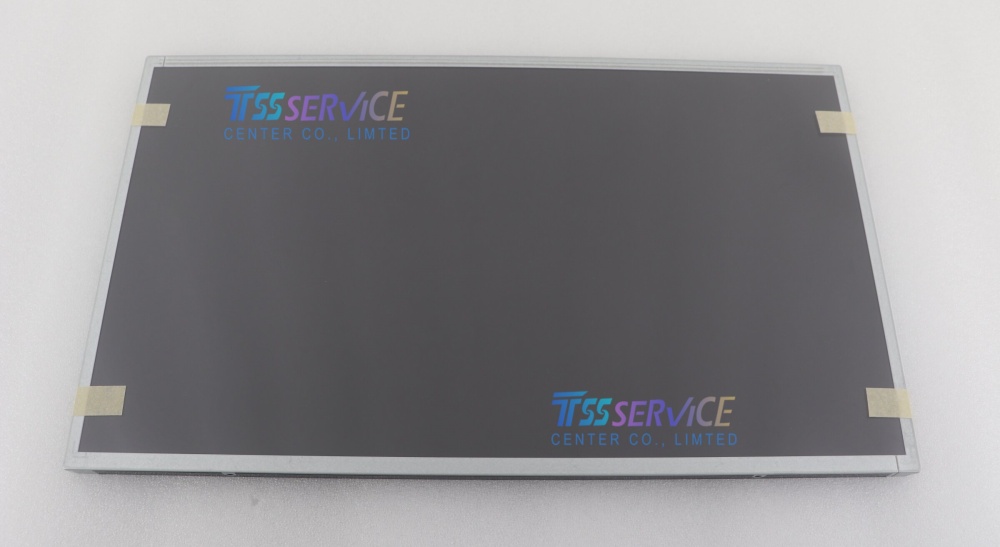

Innolux NEW 21.5 inch LCD Display Panel M215HJJ-L30 Rev.C1 for Industrial
| Parameter |
Specification |
Details / Notes |
| Brand |
Innolux |
Original Manufacturer |
| Model Number |
M215HJJ-L30 |
Rev.C1 |
| Screen Size |
21.5 Inch |
Diagonal Measurement |
| Resolution |
1920(RGB) × 1080 |
FHD Format, 16:9 Aspect Ratio |
| Pixel Arrangement |
RGB Vertical Stripes |
Standard TFT Matrix |
| Display Mode |
MVA, Normally Black, Transmissive |
Full Viewing Angle |
| Brightness |
250 cd/m² (Typ.) |
Suitable for indoor use |
| Contrast Ratio |
3000:1 (Typ.) |
Transmissive Mode |
| Viewing Angle |
89/89/89/89 (Typ.) |
Left / Right / Up / Down (CR≥10) |
| Response Time |
20 / 5 ms (Typ.) |
Tr / Td |
| Display Colors |
16.7 Million |
8-bit Color Depth, 72% NTSC |
| Backlight |
WLED (Side-in) |
4 Strings, 40K Hours Lifespan |
| Interface |
LVDS (2 ch, 8-bit) |
30 Pins, Terminal Connector |
| Supply Voltage |
5.0V (Typ.) |
Logic Supply Voltage |
| Refresh Rate |
60Hz |
Typical Vertical Frequency |
| Operating Temp. |
0°C ~ 50°C |
Standard Operating Range |
| Storage Temp. |
-20°C ~ 60°C |
Extreme Temperature Tolerance |
| Surface Treatment |
Anti-Glare, Hard Coating (3H) |
Foggy / Matte Finish |
| Dimensions (W×H×D) |
495.6 × 292.2 × 11.5 mm |
Outline Dimensions |
| Active Area |
476.064 × 267.786 mm |
Display Area |
| Weight |
1.91 / 2.10 kg |
Typ. / Max. |
-
-
-
-
-
-
- Desktop & All-in-One PCs: Desktop monitors, All-in-One (AIO) computer displays, and commercial desktop terminals.
- Digital Signage & Commercial Displays: Indoor digital signage, advertising displays, and interactive kiosks.
- Industrial Automation & Control: Human-Machine Interfaces (HMI), PLC control panels, CNC machine displays, and factory automation equipment.
- Medical Equipment: Diagnostic imaging displays, laboratory instrumentation, and medical carts.
- Gaming & Entertainment: Arcade machines, casino slot machines, and commercial gaming kiosks.
Innolux
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
