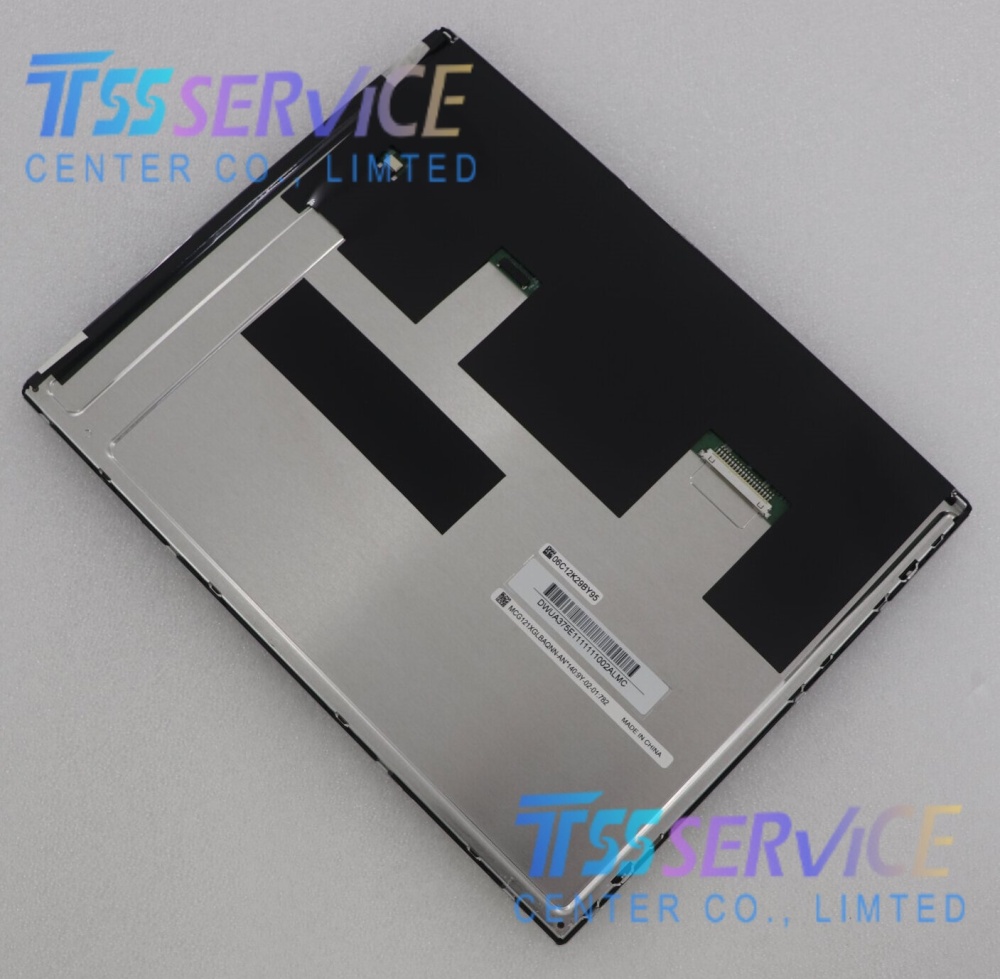

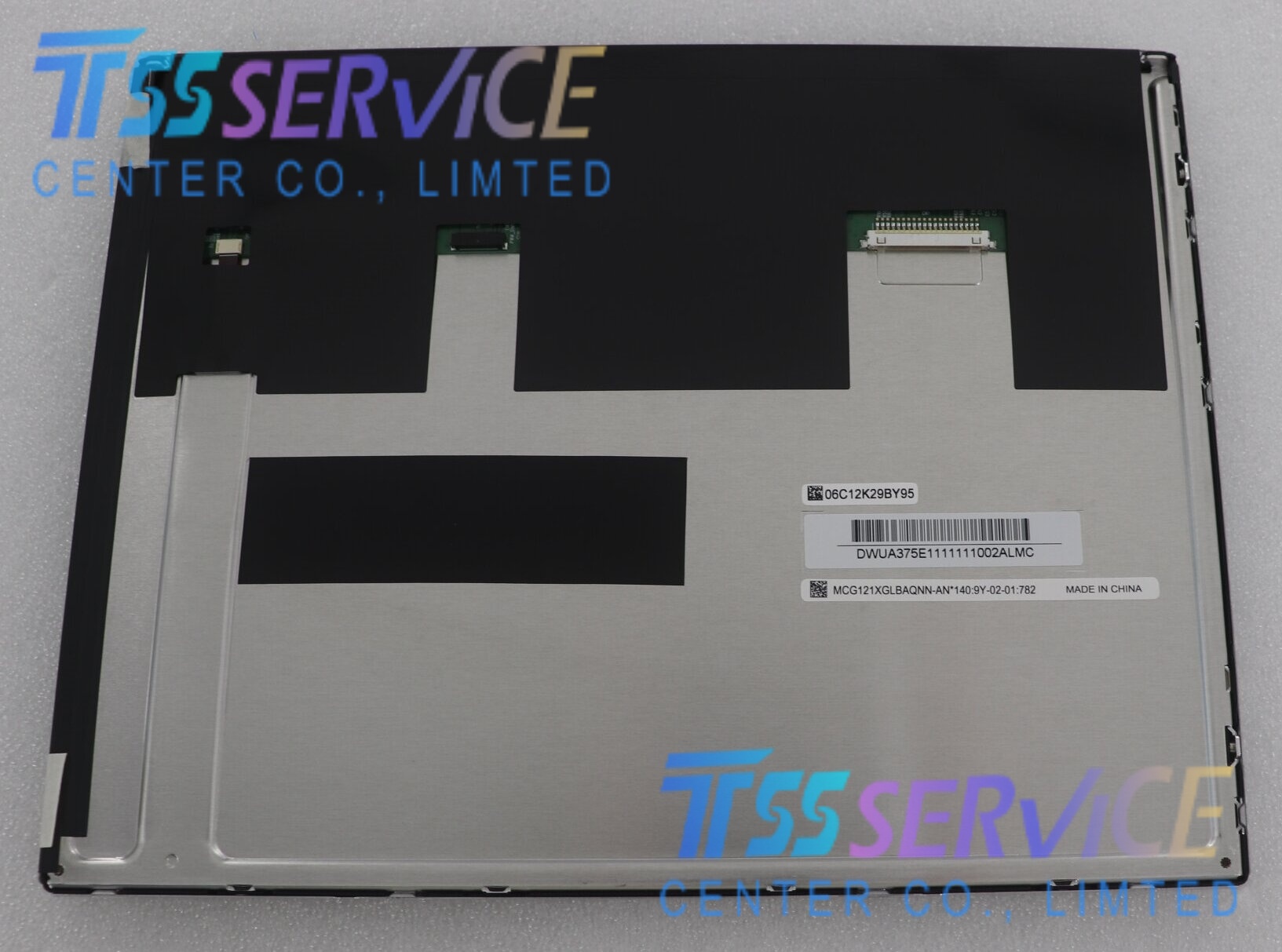

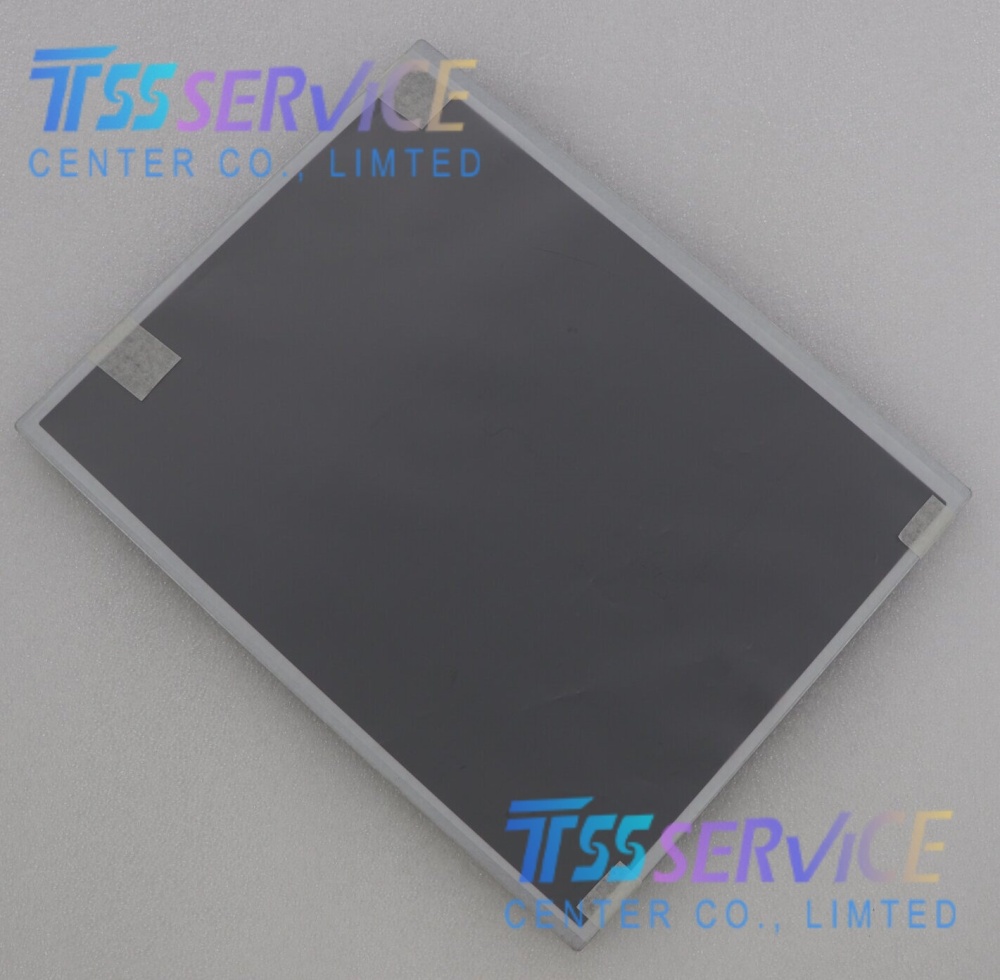

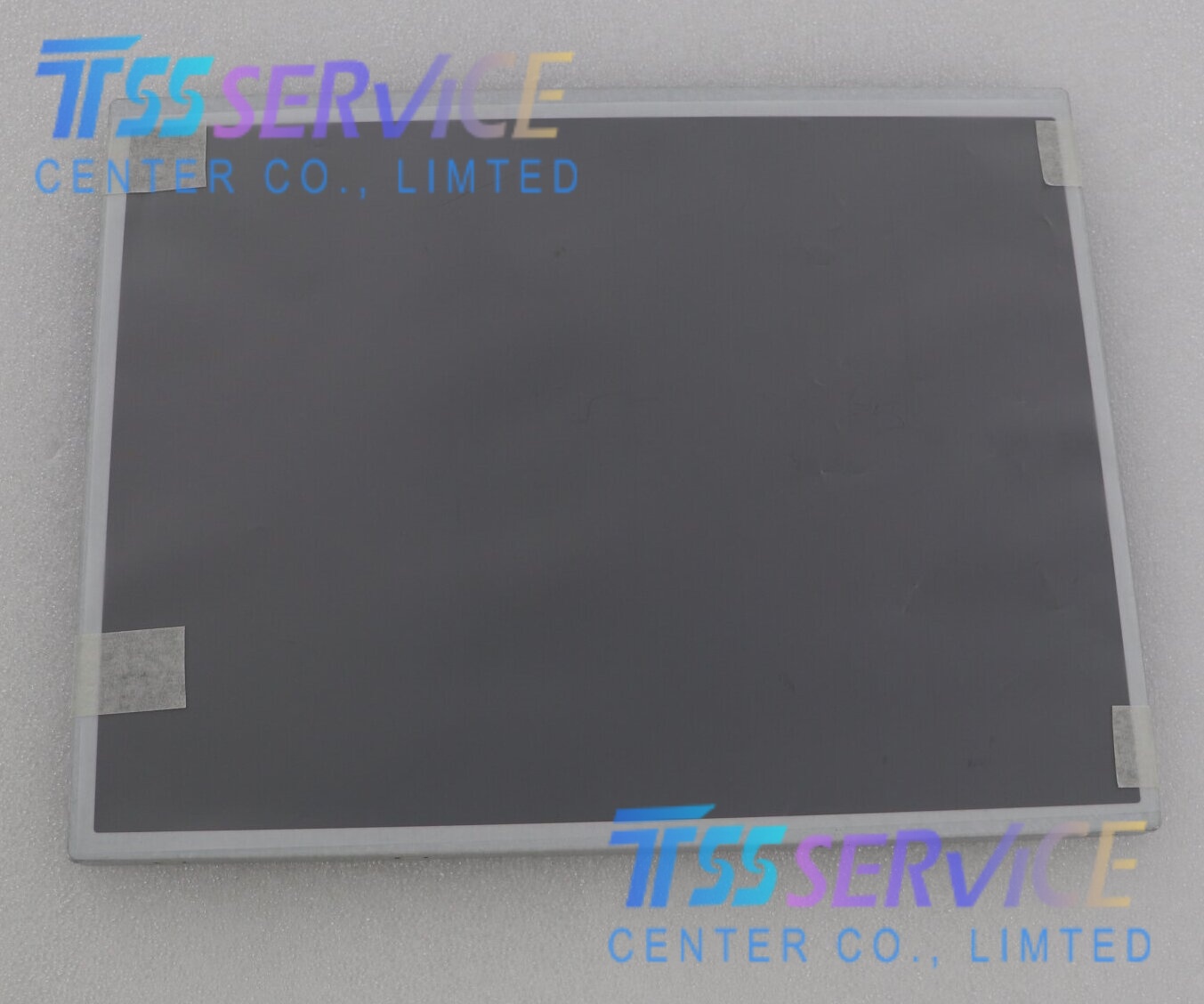

12.1 Inch Kyocera MCG121XGLBAQNN-ANX140 1024×768 Industrial TFT LCD Screen Display Panel

Name: 12.1 Inch Kyocera MCG121XGLBAQNN-ANX140 1024×768 Industrial TFT LCD Screen Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: MCG121XGLBAQNN-ANX140
Price: 200 USD
Availability: InStock

SKU: MCG121XGLBAQNN-ANX140

Model Number: MCG121XGLBAQNN-ANX140
Brand: KYOCERA Industrial Grade a-Si TFT-LCD LCM
Diagonal Size: 12.1 Inch
Native Resolution: 1024(RGB) × 768 XGA, Classic 4:3 Aspect Ratio
Display Mode: Normally Black, Transmissive Industrial TFT

0.0 (0 Reviews)

0 Sold

~~$210.00~~ $200.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

12.1 Inch Kyocera MCG121XGLBAQNN-ANX140 1024×768 Industrial TFT LCD Screen Display Panel

Item	Specification Parameter
Model Number	MCG121XGLBAQNN-ANX140
Brand	KYOCERA Industrial Grade a-Si TFT-LCD LCM
Diagonal Size	12.1 Inch
Native Resolution	1024(RGB) × 768 XGA, Classic 4:3 Aspect Ratio
Display Mode	Normally Black, Transmissive Industrial TFT
Backlight	Edge-lit WLED, Lifespan ≥50,000 Hours, 12V Input
Typical Brightness	600 cd/m²
Contrast Ratio	1000:1 (Typical)
Viewing Angle L/R/U/D (CR≥10)	89° / 89° / 89° / 89° Full Symmetric Ultra Wide View
Color Depth	16.2M True Color (6-bit + FRC)
Signal Interface	Single Channel LVDS Industrial Connector
Refresh Rate	60Hz Standard Industrial Frequency
Surface Treatment	Anti-Glare Hard Coating, Anti-scratch, Low Glare
Touch Function	Without Touch Digitizer (Resistive/Capacitive Touch Glass Optional)
Operating Temperature	-30℃ ~ +85℃ Ultra Wide Industrial Temperature Range
Storage Temperature	-40℃ ~ +90℃ Extreme Low Temp Storage Support
Panel Net Weight	Approx 1.0 KG
Outline Structure	Standard Metal Mount Frame for Equipment Integration
Quality Grade	Original New Grade A, Full Aging & Pixel Function Tested Before Shipment
Production Status	Mass Production Stable Supply

Applications

Outdoor & Harsh Environment Industrial HMI & Automation Terminals
CNC machine operation panels, factory outdoor monitoring workstations, injection molding machine control screens, packaging equipment human-machine interfaces, mining site industrial parameter display consoles, robotic workshop control monitors.
Medical Diagnostic & Clinical Monitoring Equipment
Hospital fixed patient bedside monitors, portable emergency medical diagnostic devices, veterinary inspection workstations, medical imaging auxiliary display panels, clinical lab analysis equipment main screens, ambulance onboard medical terminals.
Construction, Agricultural & Special Engineering Vehicle On-board Displays
Excavator cabin control dashboards, tractor operation monitoring screens, forklift high-bright parameter terminals, heavy truck auxiliary central displays, agricultural spraying machinery control panels, special engineering vehicle monitoring modules.
Laboratory & Portable Precision Test Measuring Instruments
Industrial signal analyzers, power energy quality monitoring equipment, environmental gas detection analyzers, optical inspection measuring devices, pipeline underground inspection monitors, field portable industrial data recorders.
Outdoor Self-service & Special Fixed Industrial Equipment
Outdoor charging pile data display screens, factory safety centralized monitoring terminals, industrial information query kiosks, marine miniature instrument monitors, outdoor vending machine control display modules.
