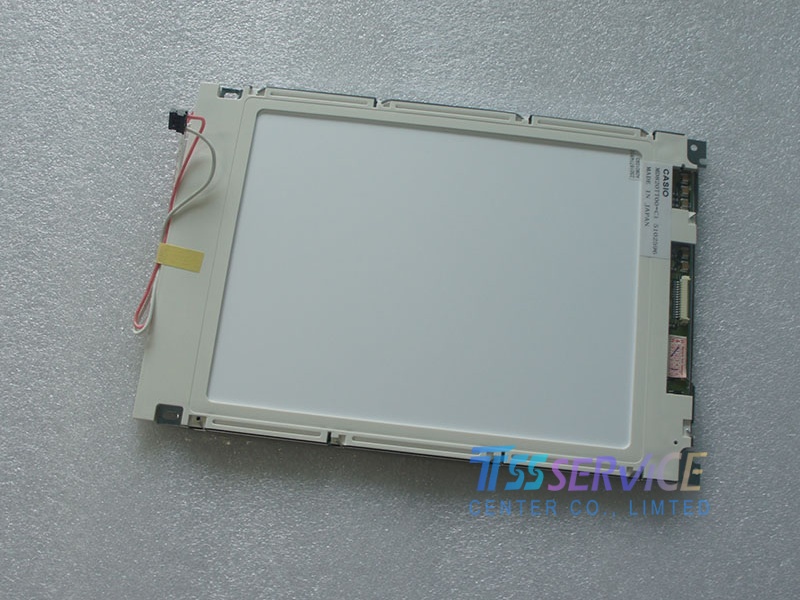

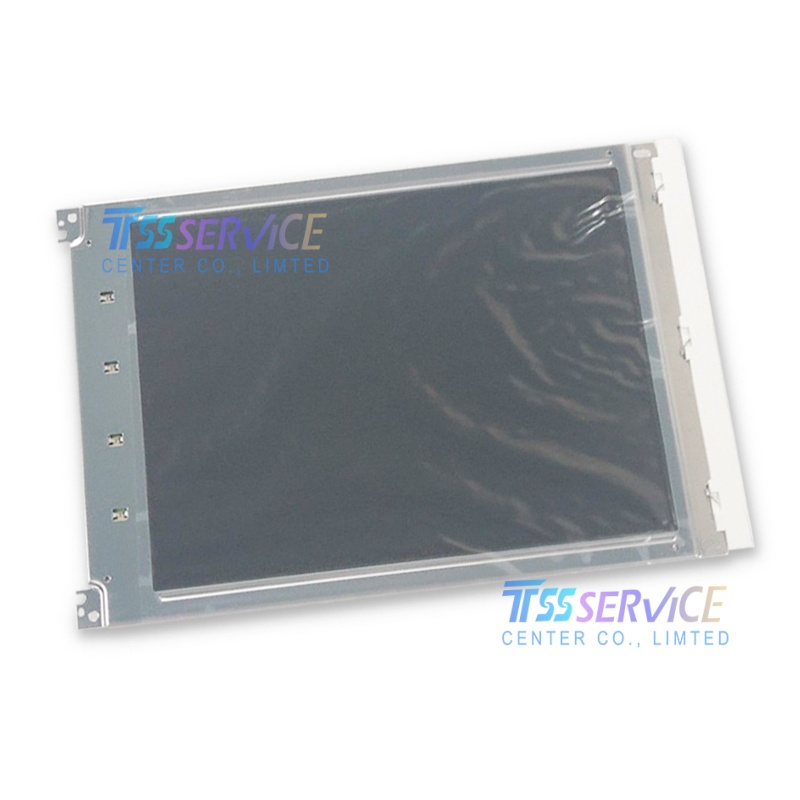

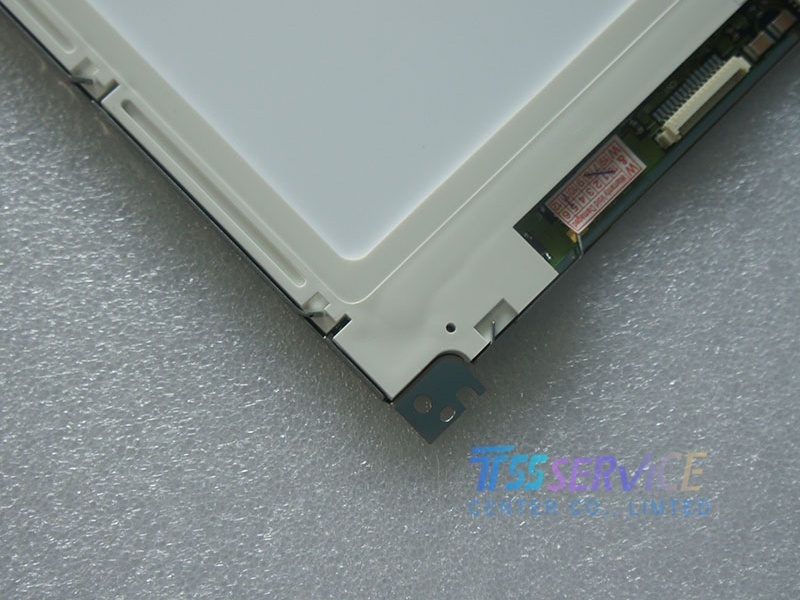

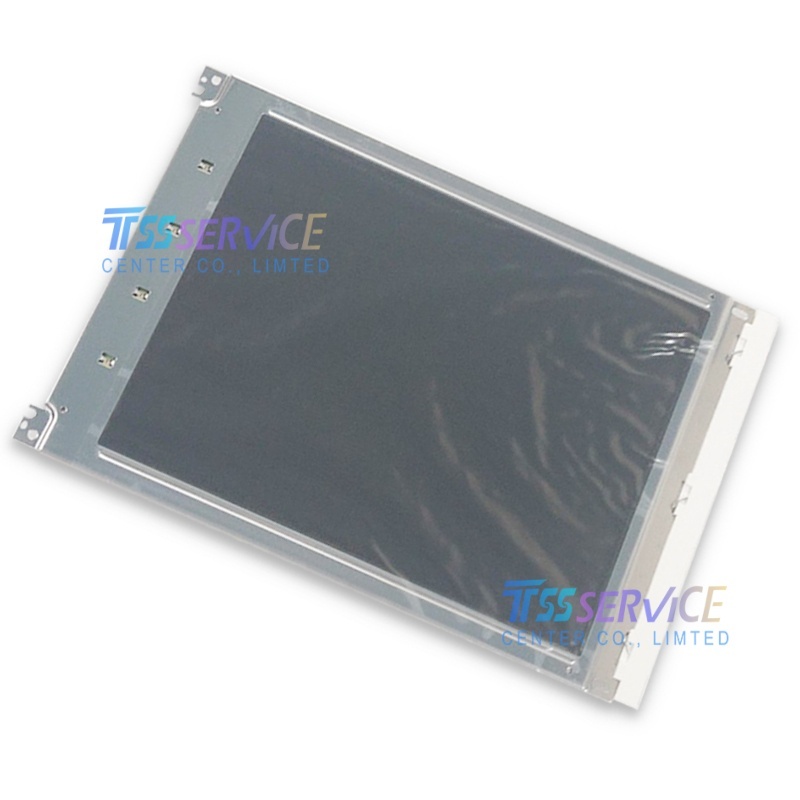

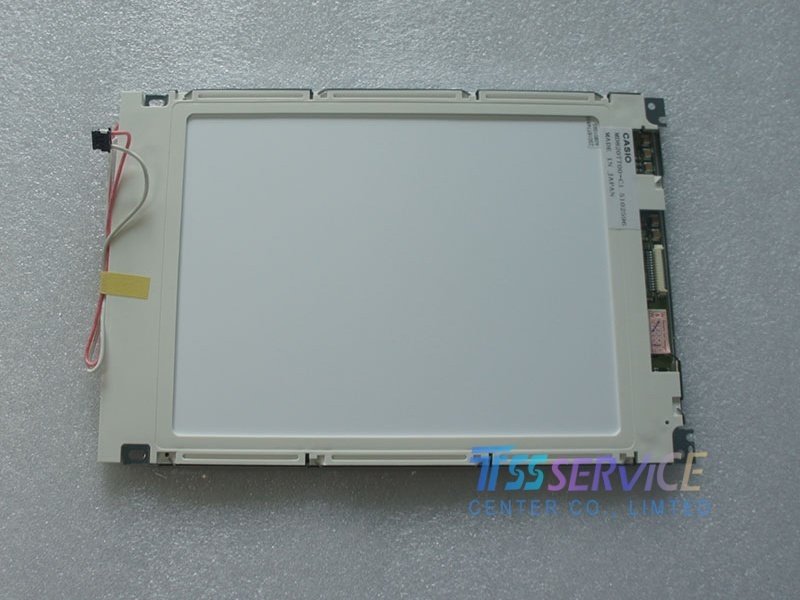

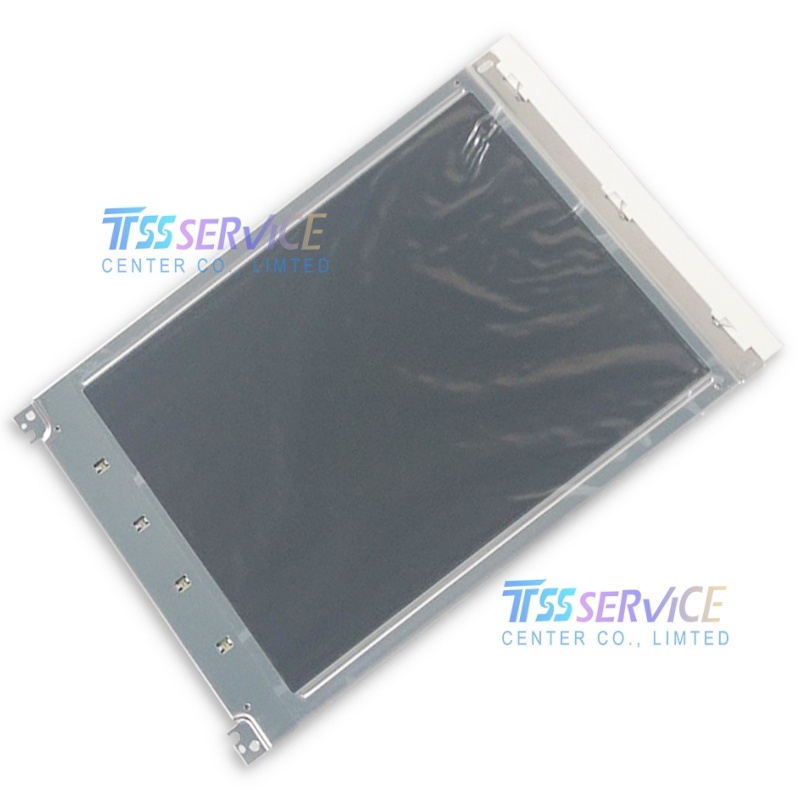

MD820TT00-C1 | Casio 9.4" VGA STN
MD820TT00-C1 is a 9.4-inch VGA (640×480) STN-LCD module by Casio, featuring compact size, wide viewing angle, standard 15-pin interface, and industrial-grade reliability for legacy industrial HMI, medical devices, and rugged embedded display applications.
| Parameter Item |
Specification Details |
| Part Number |
MD820TT00-C1 |
| Manufacturer |
Casio (卡西欧) |
| Display Size |
9.4 inch, landscape, 4:3 |
| Resolution |
640×480 pixels (VGA) |
| Technology |
STN-LCD, transmissive |
| Active Area |
190.08 × 142.56 mm (approx.) |
| Outline Dimension |
210 × 160 × 12 mm (approx.) |
| Pixel Pitch |
0.297 × 0.297 mm |
| Brightness |
250 cd/m² (typ.) |
| Contrast Ratio |
500:1 (typ.) |
| Viewing Angle |
160°/140° (L/R, CR≥10) |
| Display Colors |
Monochrome / 64K colors (option) |
| Backlight |
CCFL (1 lamp), lifespan ≥ 30,000 hours |
| Interface |
15-pin standard connector, LVDS compatible |
| Supply Voltage |
5.0 VDC (typ.) |
| Refresh Rate |
60 Hz |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
-20°C ~ +60°C |
| Touch Screen |
Without touch (customizable) |
| Surface Treatment |
Anti-glare (AG) |
| Weight |
Approx. 0.8 kg |
| Certifications |
RoHS compliant |
| Status |
Mature, mass production (legacy model) |
