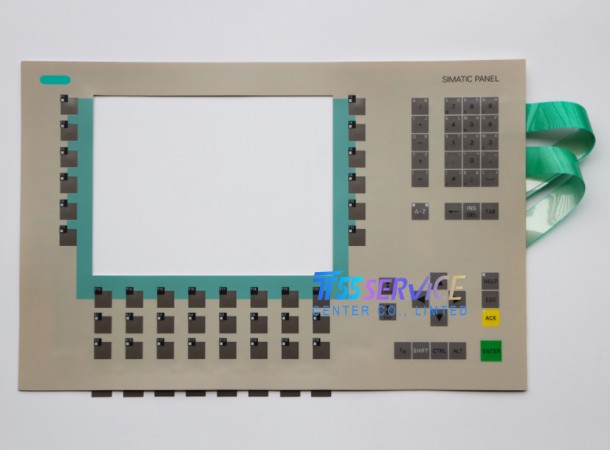

Membrane Keypad for Industrial monitor SIEMENS SIMATIC MP270B 6AV6542-0AG10-0AX0
Specifications
Basic Information
- Matching HMI Model: Siemens SIMATIC MP270B KEY-10 TFT (6AV6542-0AG10-0AX0)
- Product Name: Replacement Membrane Keypad / Membrane Switch
- Brand Compatible: Siemens
- Screen Size Matched: 10.4 inch industrial TFT LCD
- Outline Dimension: 445 mm (W) × 290 mm (H)
- Active Display Window: 213 mm (W) × 180 mm (H)
Keypad Mechanical & Material Parameters
- Substrate Material: Polyester PET film, double-layer conductive circuit
- Conductive Layer: Silver paste conductive circuit, anti-oxidation coating
- Surface Overlay: Matte anti-scratch PET with industrial silk-screen printing
- Key Quantity: Full set integrated function keys + numeric keypad + navigation arrow keys
- Key Tactile: Soft flat membrane touch, silent actuation
- Actuation Force: 120–180 gf standard industrial grade
- Service Life: ≥1,000,000 presses per single key
- FPC Connector: Flexible flat cable integrated, direct plug-and-play to mainboard
- Adhesive Back: 3M double-sided industrial tape for front panel bonding
- Flame Rating: UL94 V-0 fire retardant film
Electrical Specifications
- Working Voltage: 3.3 V DC signal circuit
- Insulation Resistance: ≥100 MΩ
- Contact Resistance: 10–50 Ω when key pressed
- Open Circuit Resistance: ≥100 MΩ
- Dielectric Withstand: 500 V AC / 1 min without breakdown
- Leakage Current: ≤1 μA
Environmental Specifications
- Operating Temperature: 0 ℃ ~ +55 ℃
- Storage Temperature: -20 ℃ ~ +70 ℃
- Humidity Range: 5%–90% RH non-condensing
- Front Panel Protection: IP65 after full assembly with gasket
- Anti-corrosion: Resist weak acid, oil, industrial dust
Typical Applications
- Industrial automation machine control HMI replacement & repair
- Packaging machinery, injection molding machines, CNC equipment operation panel
- Factory production line monitoring, PLC system man-machine interaction
- Marine onboard control consoles, water treatment & energy equipment control terminals
