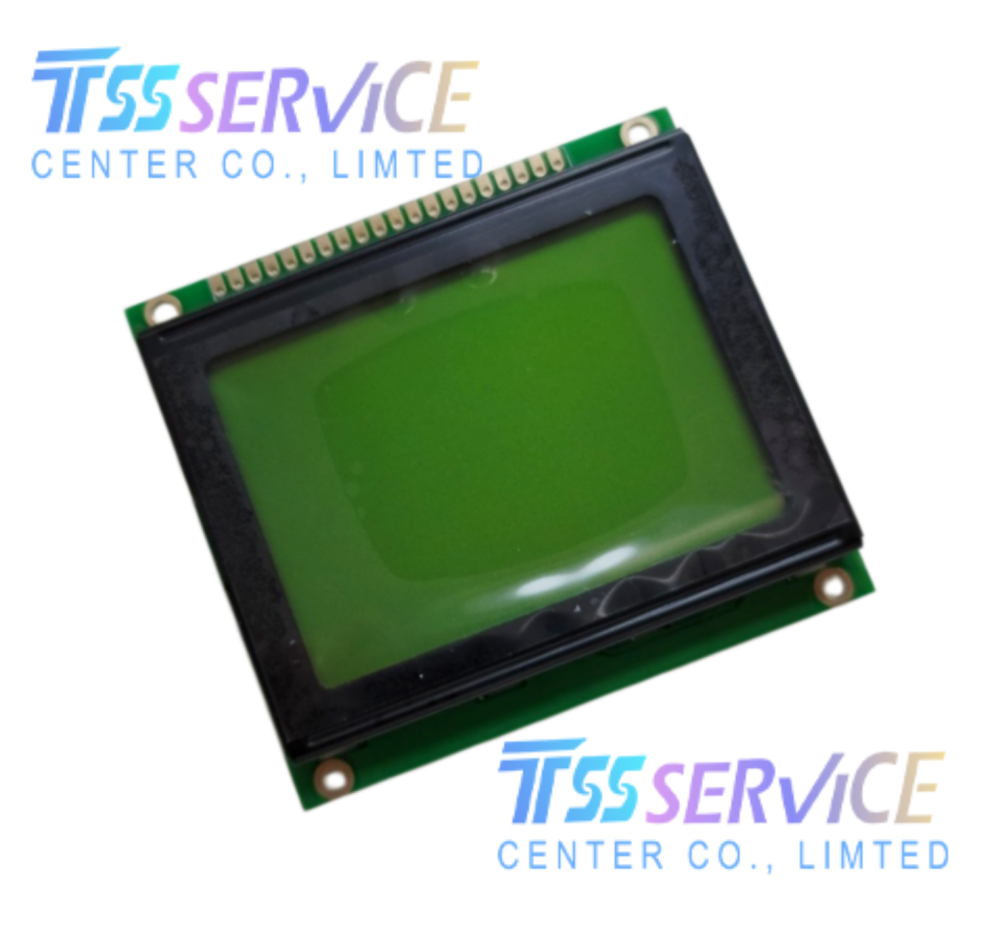

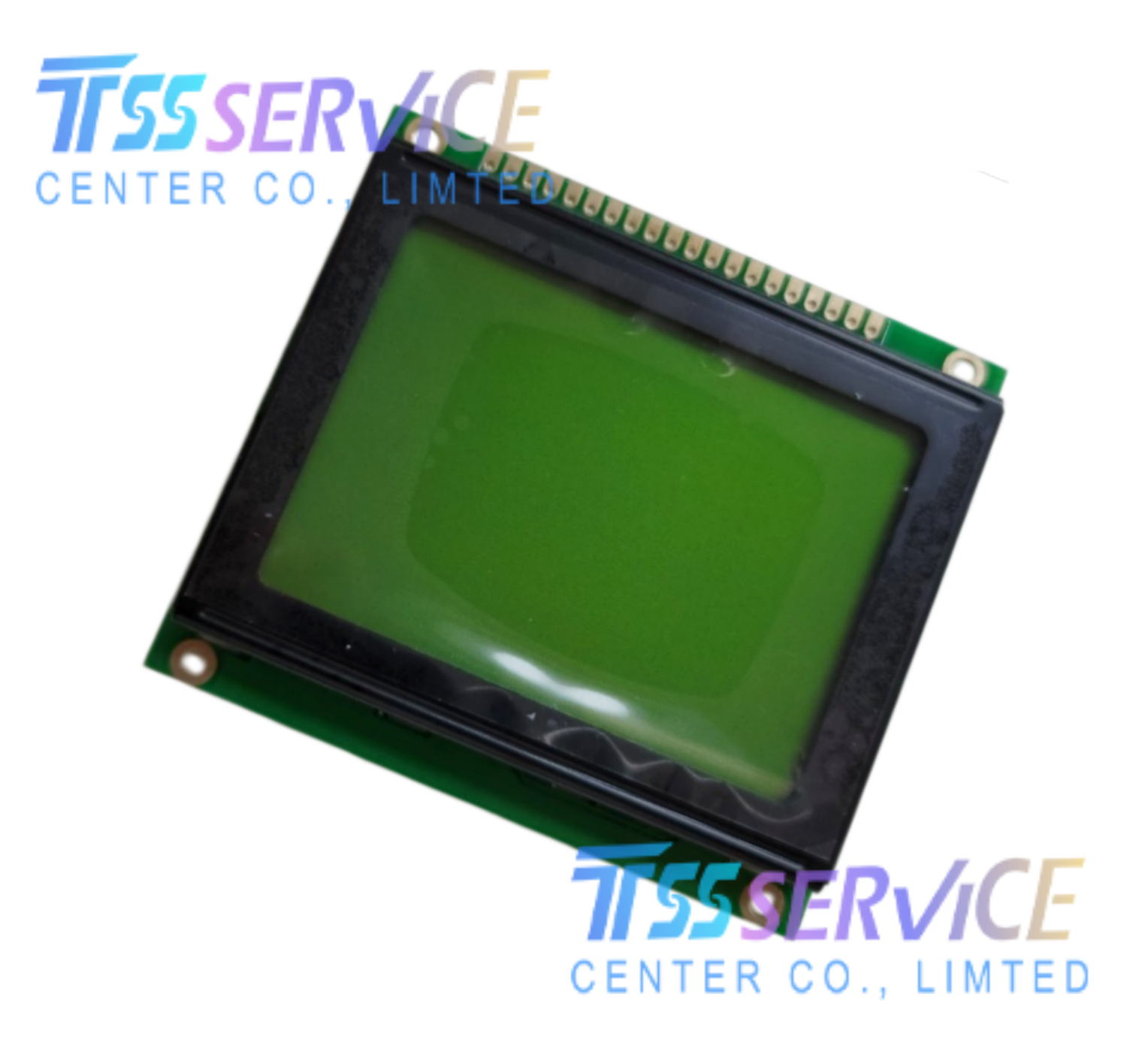

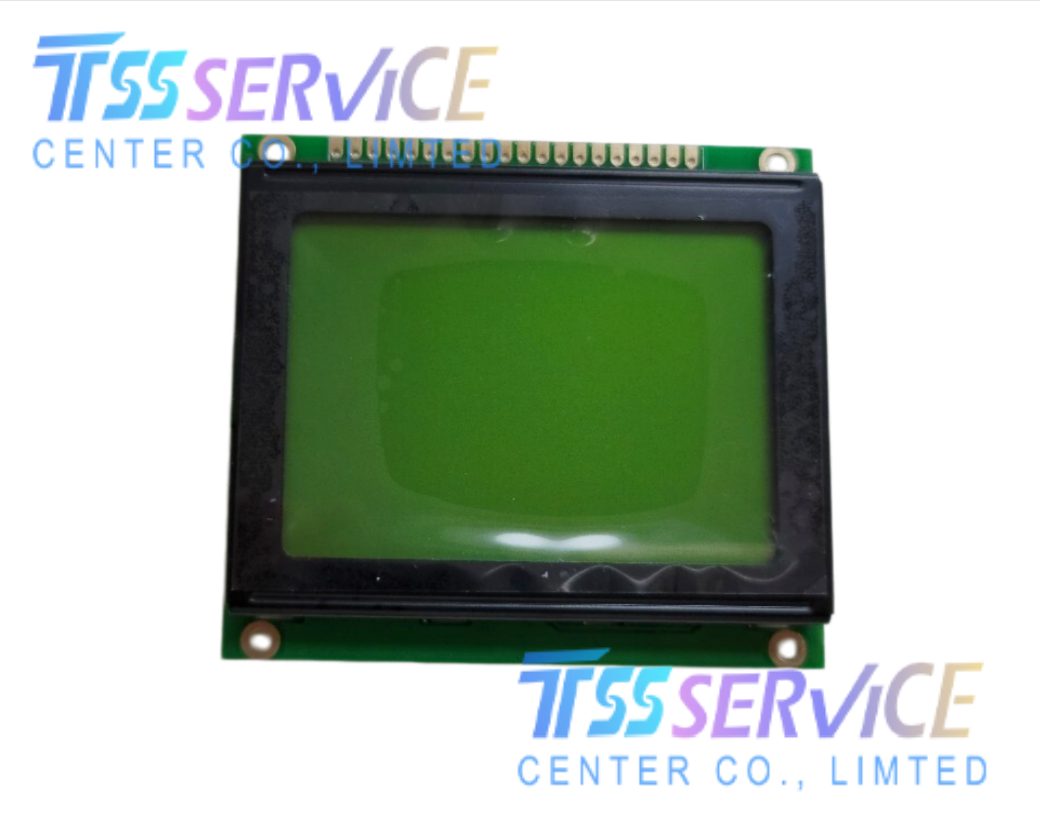

MGLS12864T-06 Replacement LCD Display Screen For Industrial

Name: MGLS12864T-06 Replacement LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: MGLS12864T-06
Price: 72 USD
Availability: InStock

SKU: MGLS12864T-06

Model Number: MGLS12864T-06
Diagonal Size: 4.7 inch
Resolution: 128 × 64
Display Type: STN, Monochrome
Display Mode: Positive, Transflective

0.0 (0 Reviews)

0 Sold

~~$75.00~~ $72.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

MGLS12864T-06 Replacement LCD Display Screen For Industrial

Parameter	Value
Model Number	MGLS12864T-06
Diagonal Size	4.7 inch
Resolution	128 × 64
Display Type	STN, Monochrome
Display Mode	Positive, Transflective
Viewing Direction	6 o’clock
Brightness	25–35 cd/m² (Typ.)
Contrast Ratio	10:1 (Typ.)
Backlight	LED (Yellow-Green)
Controller	KS0108 / HD61202 Compatible
Interface	8-bit Parallel (6800), 20 pins
Outline Dimension	78.0 × 70.0 × 12.5 mm (Max)
Viewing Area	62.0 × 44.0 mm
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
Weight	~65g
RoHS	Compliant

Typical Applications

Industrial Control & HMI
PLC panels, factory automation, CNC machinery, and industrial instrumentation.
Medical Devices
Portable diagnostic equipment, patient monitors, and lab analyzers requiring compact mono displays.
Test & Measurement Instruments
Oscilloscopes, multimeters, power meters, and data loggers for waveform/parameter display.
Embedded Systems & DIY Projects
STM32/8051/Arduino-based devices, smart home controllers, and consumer electronics.
Legacy Equipment Replacement
Drop-in upgrade for older Varitronix 128×64 STN modules in industrial and commercial devices.
