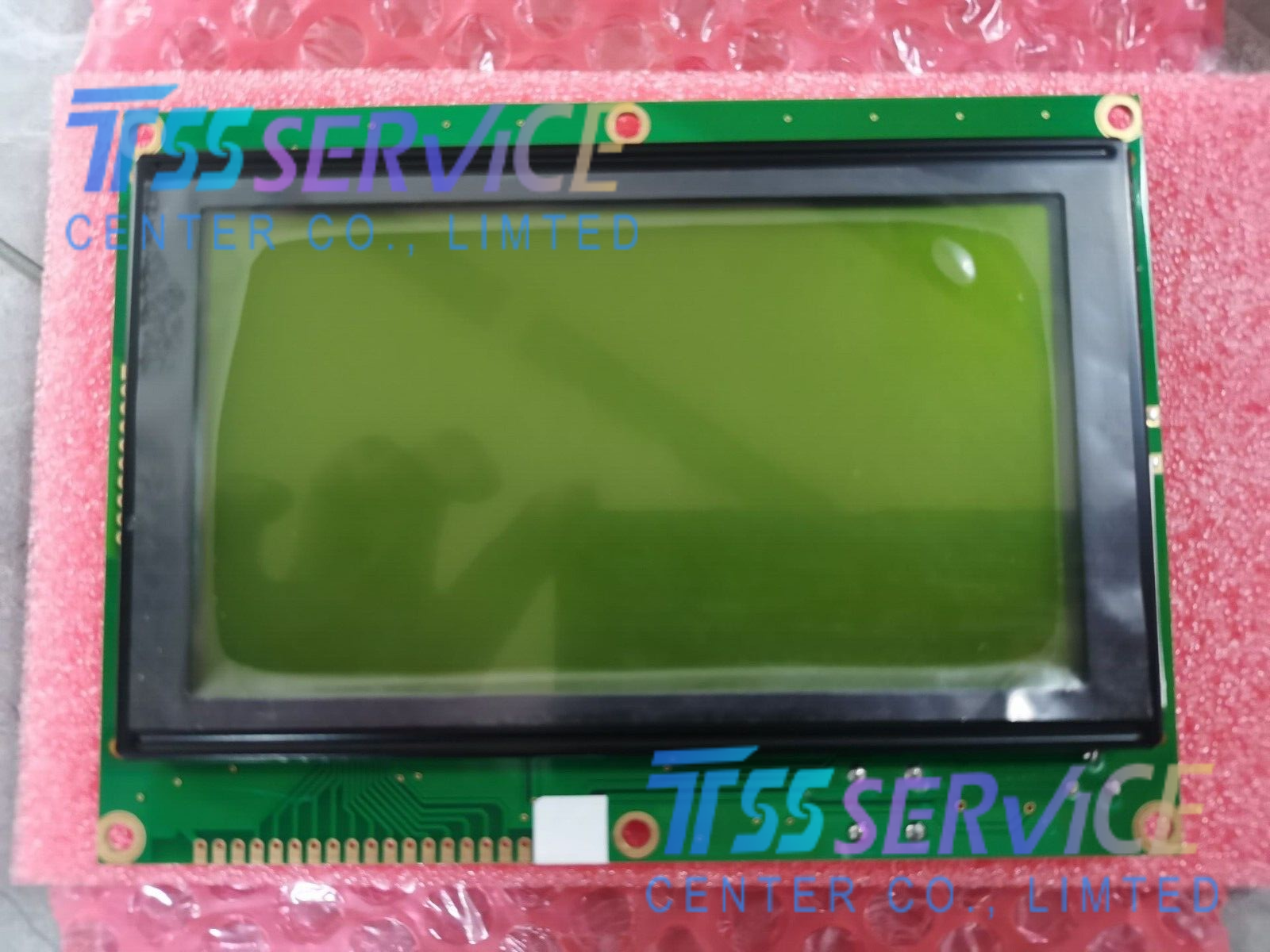

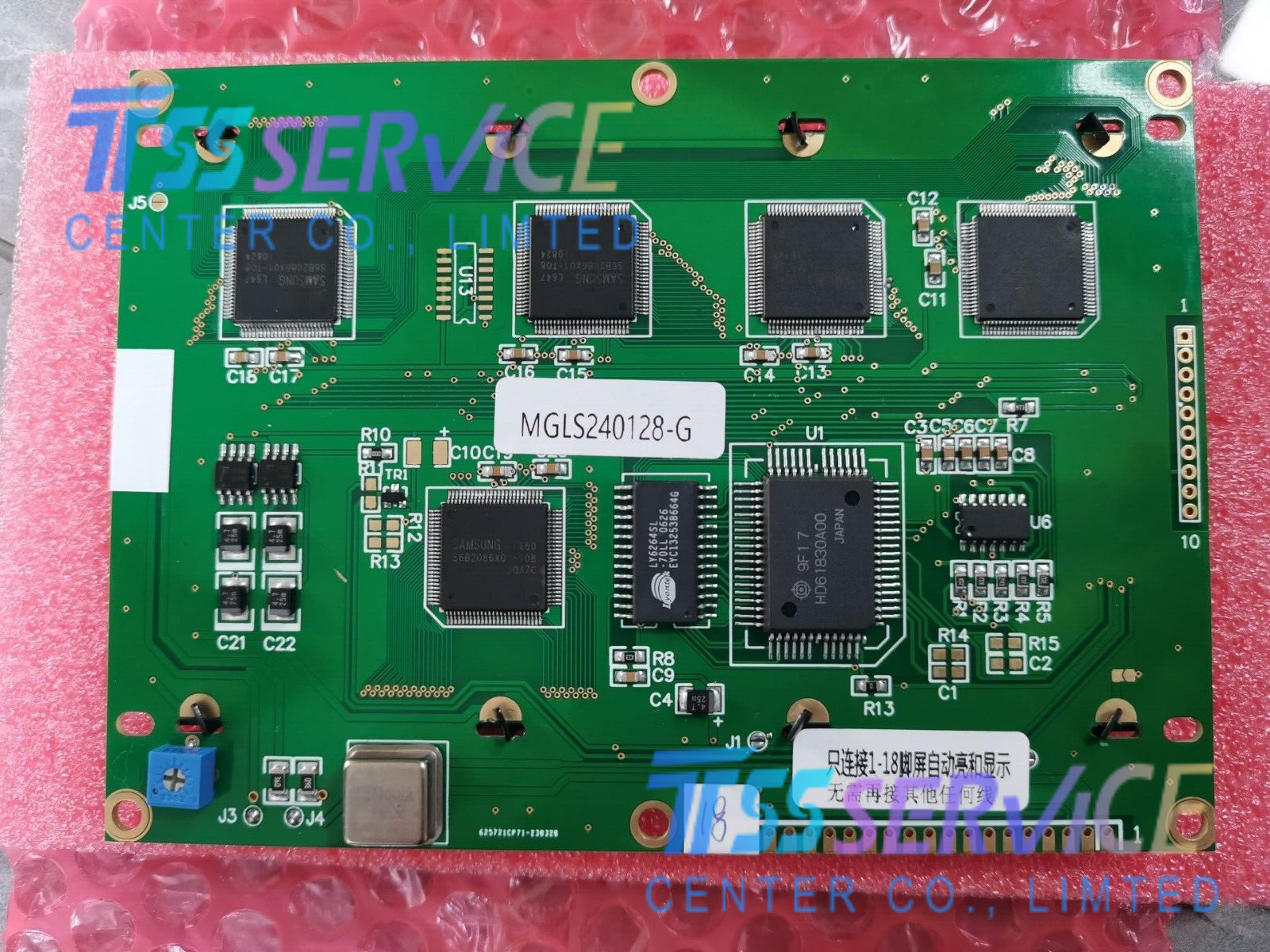

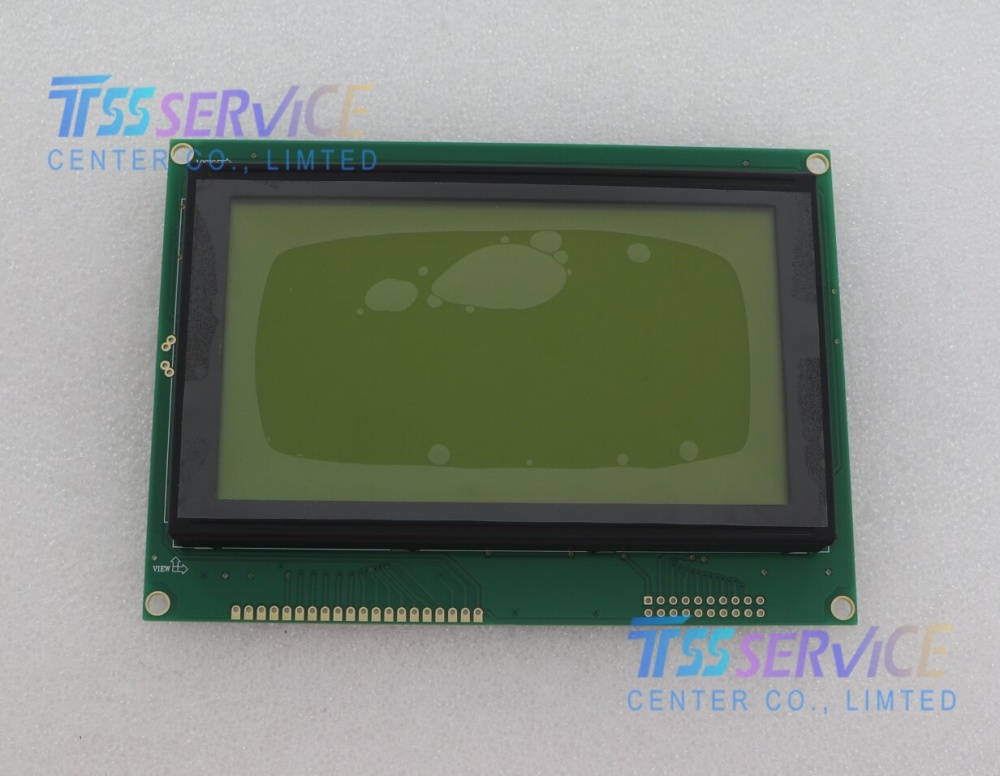

MGLS240128-G (led 03) lcd Varitronix LCD Display Screen For Industrial

Name: MGLS240128-G (led 03) lcd Varitronix LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: MGLS240128-G
Price: 90 USD
Availability: InStock

SKU: MGLS240128-G

Model: MGLS240128-G
Display Type: Graphic LCD Module, CCSTN, Monochrome
Resolution: 240 × 128 dots

0.0 (0 Reviews)

0 Sold

~~$96.00~~ $90.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

MGLS240128-G (led 03) lcd Varitronix LCD Display Screen For Industrial

Parameter	Details
Model	MGLS240128-G
Display Type	Graphic LCD Module, CCSTN, Monochrome
Resolution	240 × 128 dots
Viewing Area	114.0 (W) × 64.0 (H) mm
Dot Size	0.40 × 0.40 mm
Dot Pitch	0.45 × 0.45 mm
Controller IC	Built‑in T6963C
Display Mode	Text / Graphic / Mixed
Backlight	LED or EL (Electroluminescent)
Interface	8‑bit parallel (8080‑style MPU)
Power Supply	+5.0 V (typical)
Operating Temperature	−20 °C ~ +70 °C
Storage Temperature	−30 °C ~ +80 °C
Display Colors	Monochrome (usually green/yellow or blue)
Mass	Typical 120–150 g

Typical Applications

Industrial Control Panels – factory automation, PLC, CNC, process control
Test & Measurement – multimeters, oscilloscopes, data loggers
Medical Equipment – patient monitors, diagnostic devices, lab instruments
Smart Home & Building Automation – HVAC controllers, security panels
POS & Kiosk Systems – industrial terminals, vending machines
Portable Instruments – battery‑powered field devices (low power, wide temp range)
