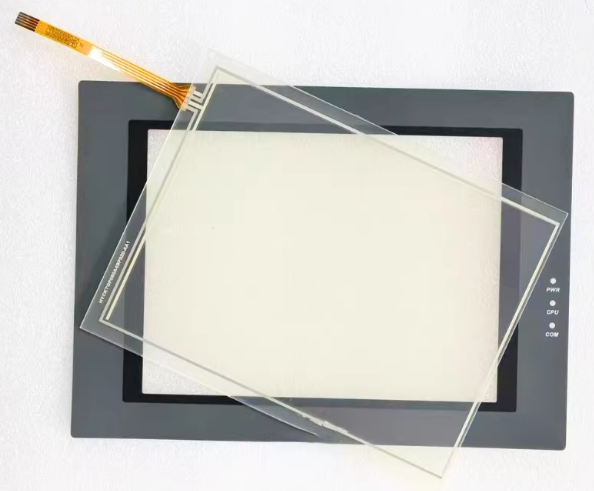

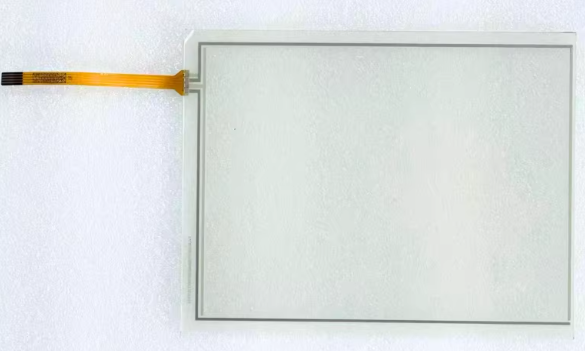

New Touch Screen MT4400
Parameter Specification
Display 8" TFT LCD (162.2 × 121.7 mm active area)
Resolution 640 × 480 pixels (VGA)
Color 65,536 colors
Brightness 350 cd/m²
Backlight 1 CCFL (50,000 hours lifespan)
Touch Screen 4-wire analog resistive (surface hardness 4H)
CPU 32-bit RISC @ 400 MHz
Memory 8 MB Flash + 16 MB SDRAM
Communication Ports COM0: RS232/RS485; COM1: RS232/RS485; COM2: RS232
Power Supply 24 VDC (21–28 VDC input range)
Power Consumption 12 W
Dimensions 235 × 172 × 53 mm
Panel Cutout 224 × 161 mm
Front Protection IP65 (dust-tight and protected against water jets)
Operating Temperature 0 to 45 °C
Weight 1.1 kg
