1. Display Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Display Type | 7" TFT LCD | 16:9 Widescreen format -1 |
| Resolution | 800 × 480 pixels | WVGA -2 |
| Display Colors | 65,536 colors | 16-bit high color -3 |
| Brightness | 300 cd/m² | -4 |
| Backlight Type | LED | Long-life LED backlight -5 |
| Backlight Lifetime | 50,000 hours | Typical half-life -6 |

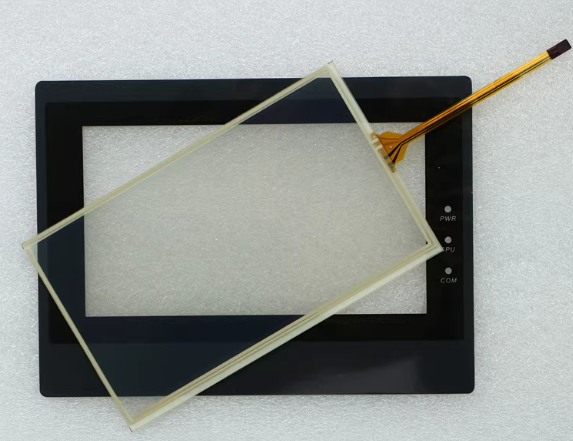

| Touch Screen Type | 4-wire Analog Resistive | Precision resistance network -7 |
| Surface Hardness | 4H | Scratch-resistant -8 |
2. Processor & Memory
| Parameter | MT4414T | MT4414TE / TE-CAN | Notes |
|---|---|---|---|
| CPU | 400MHz RISC | 800MHz RISC | High-speed processing -3 |
| Flash Memory | 128 MB | 128 MB | For user application storage -5 |
| SDRAM | 64 MB | 64 MB | -6 |
| RTC & Recipe Memory | 512 KB | 512 KB | Battery-backed real-time clock -1 |
| Expandable Storage | None | 1 × USB Host | Supports USB flash drive -2 |
3. Communication Interfaces
| Interface | MT4414T | MT4414TE | MT4414TE-CAN | Notes |
|---|---|---|---|---|
| COM0 | RS485-2W/4W, RS232 | RS485-2W/4W, RS232 | RS485-2W/4W, RS232 | Main serial port -4 |
| COM2 | RS232 | RS232 | RS232 | Auxiliary serial port -7 |
| Ethernet | Not supported | 10/100M | 10/100M | RJ45 connector -5 |
| CANopen | Not supported | Not supported | Yes | Built-in CANopen bus -3 |
| USB Host | Not supported | 1 × USB Host | 1 × USB Host | For peripherals -8 |
| USB Slave | Yes | Yes | Yes | For programming -6 |
| Program Download | USB / Serial | USB / Serial / Ethernet | USB / Serial / Ethernet | -2 |
| Print Interface | Serial | Serial / USB | Serial / USB | -1 |
4. Electrical Specifications
5. Physical Specifications
6. Environmental Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Front Panel Protection | IP65 | Dust-tight and protected against water jets -8 |
| Operating Temperature | 0°C to 50°C | Some sources list 45°C max -1-5 |
| Storage Temperature | -10°C to 60°C | -2 |
| Operating Humidity | 10% to 90% RH (non-condensing) | -3 |
| Vibration Resistance | 10 ~ 25 Hz, 2G for 30 min (X, Y, Z directions) | -4 |
7. Certifications
8. Software & Programming
