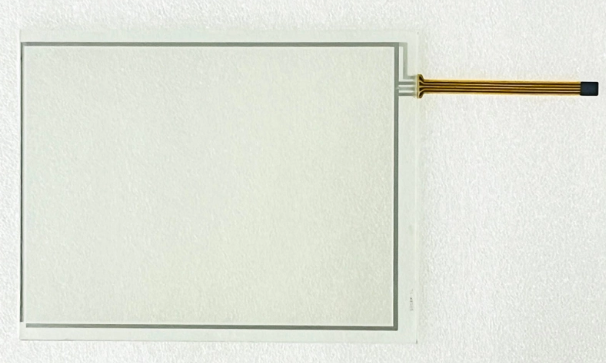

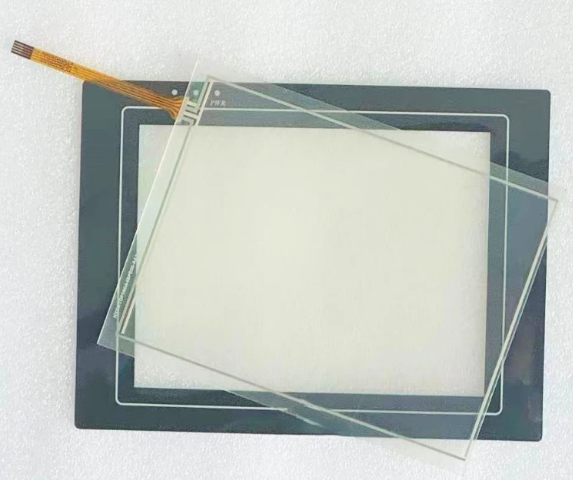

New Touch Screen Digitizer Touch glass MT508SV4CN

SKU: MT508SV4CN

Product Type	Industrial Touch Screen HMI Module
Display Technology	TFT LCD -7 -8 -10
Touch Technology	Projected Capacitive

0.0 (0 Reviews)

0 Sold

~~$49.00~~ $45.00

Received successfully

Coupon Code

Description

New Touch Screen Digitizer Touch glass MT508SV4CN

Product Overview

Attribute	Details
Manufacturer	Weintek / Weinview
Product Type	Industrial Touch Screen HMI Module
Display Technology	TFT LCD -7 -8 -10
Touch Technology	Projected Capacitive -1 -4 -7

Display Specifications

Attribute	Specification
Screen Size	5.0 inches (5.08" also noted)-5 -7 -8
Resolution	800 × 480 pixels -4 -5 -7
Colors	262,144 colors -1 -6
Brightness	≥500 cd/m² -4
Contrast Ratio	≥1000:1 -4
Response Time	≤5ms -4
Diagonal Viewing Angle	170° -4

Electrical Specifications

Attribute	Specification
Power Supply	DC 24V (±10% to ±20%) -1 -7 -8
Power Consumption	≤4W (approx. 400-500mA @ 24VDC)-1 -7 -8

Interface / Communication

Interface	Specification
Serial Ports	2 × COM ports (RS-232/485) -4 -5 -7
Ethernet	1 × RJ45 port -1 -4 -7
USB	USB Host port -1 -7
Protocols Supported	MPI 187.5k, CANopen, DeviceNet -1 -6

Physical Specifications

Attribute	Specification
Dimensions (W × H × D)	128 × 102 × 32 mm -1 -8
Weight	Approx. 0.2 – 0.3 kg -1 -10
Housing Material	Aluminum alloy -1 -7
Mounting Type	Panel mount

Environmental Specifications

Attribute	Specification
Protection Rating (Front)	IP65 (dust-tight, water jet protected)-1 -4 -8
Operating Temperature	-20°C to +60°C -1 -4 -7
Storage Temperature	-40°C to +70°C (up to +85°C per some sources)-1 -4 -7
Operating Humidity	5% to 95% RH (non-condensing)-1 -5

Memory & System

Attribute	Specification
Flash Storage	16 MB -5
SDRAM	64 MB
