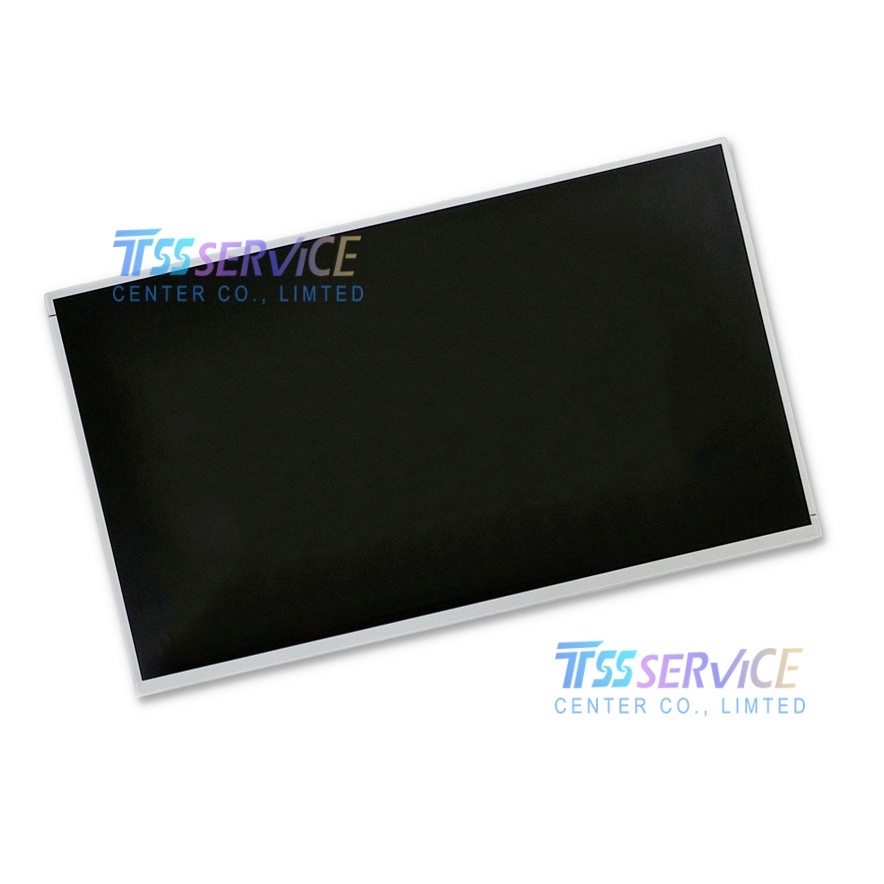

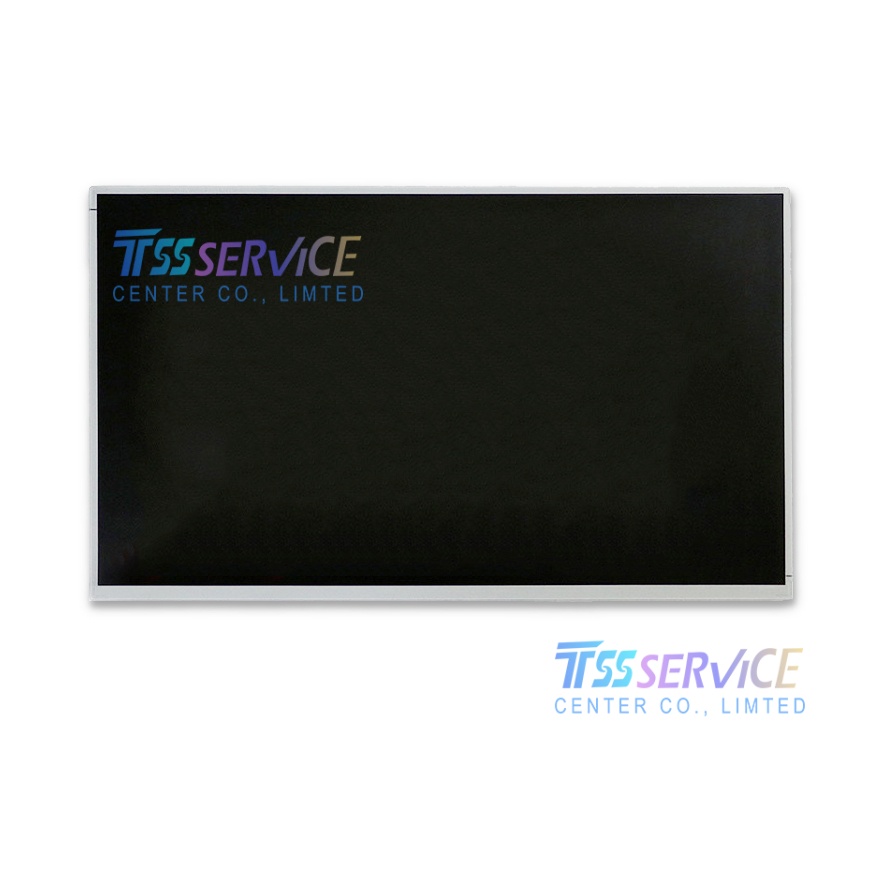

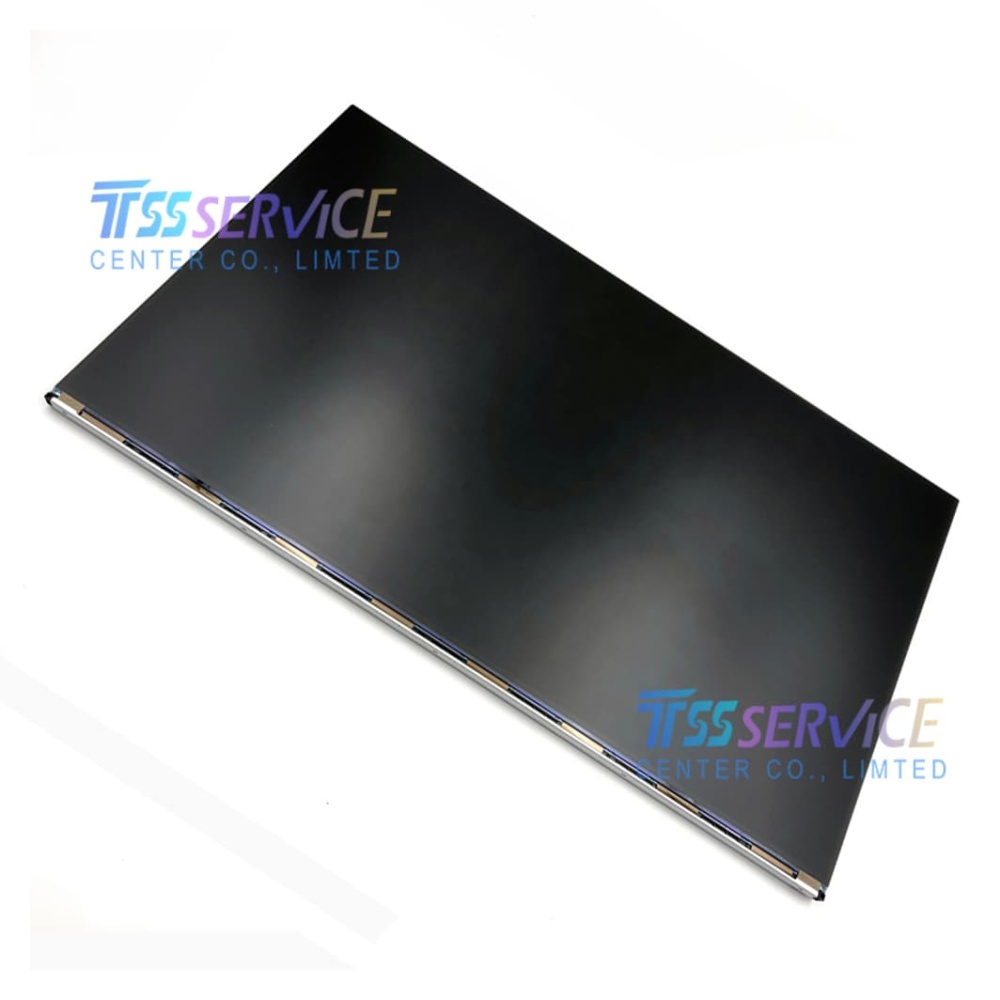

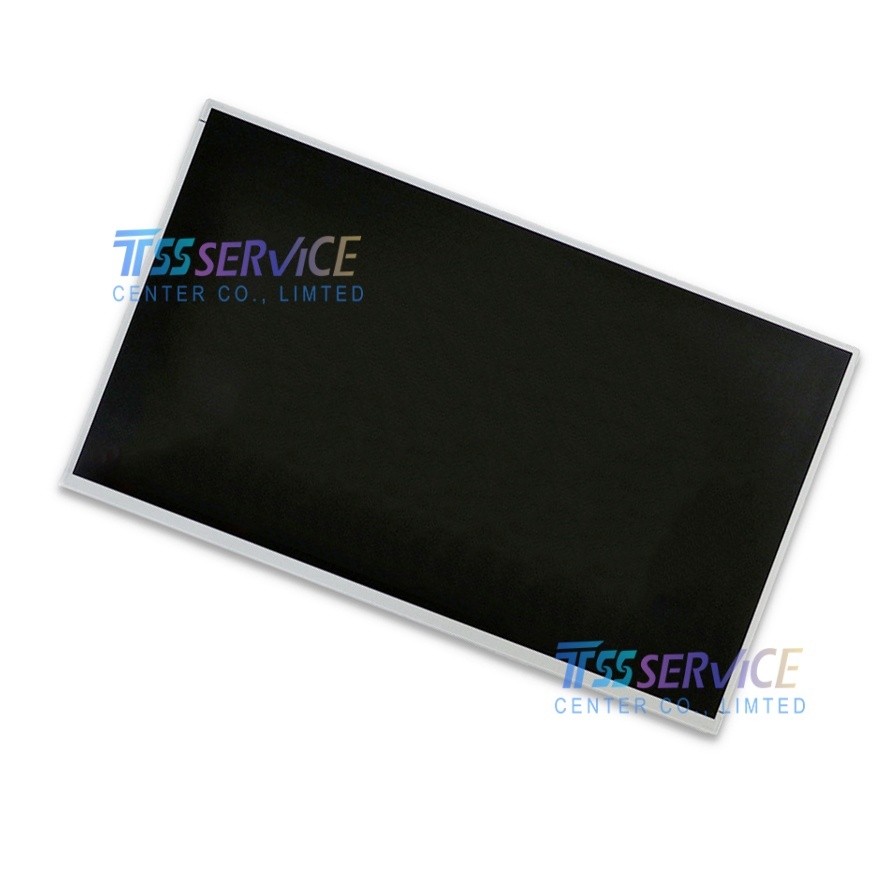

MV238FHM-NG2 23.8 inch 1920×1080 LCD Display Screen Panel For BOE
| Parameter |
Value |
Unit |
Remarks |
| Manufacturer |
BOE |
— |
— |
| Model |
MV238FHM‑NG2 |
— |
— |
| Panel Type |
a‑Si TFT‑LCD, ADS, Normally Black, Transmissive |
— |
— |
| Diagonal Size |
23.8 |
inch |
— |
| Resolution |
1920(RGB) × 1080 |
— |
FHD, 16:9 |
| Pixel Format |
RGB Vertical Stripe |
— |
— |
| Active Area |
527.04(W) × 296.46(H) |
mm |
— |
| Outline Dimension |
535.0(W) × 313.0(H) × 13.2(D) |
mm |
— |
| Surface |
Matte (Haze 25%), Hard Coating (3H) |
— |
— |
| Brightness |
350 |
cd/m² |
Typ. |
| Contrast Ratio |
1000:1 |
— |
Typ. (Transmission) |
| Viewing Angle |
89/89/89/89 |
° |
L/R/U/D, CR≥10 |
| Response Time |
5 |
ms |
G‑to‑G, Typ. |
| Refresh Rate |
240 |
Hz |
Vertical |
| Display Colors |
16.7M |
— |
8‑bit |
| Color Gamut |
100% sRGB |
— |
Typ. |
| Backlight |
WLED, Side‑Entry |
— |
30,000 hrs lifetime, No Driver |
| Signal Interface |
eDP (4 Lanes), 30 Pins |
— |
10.0V (Typ.) |
| Operating Temp. |
0 ~ 50 |
°C |
— |
| Storage Temp. |
−20 ~ 60 |
°C |
— |
| Features |
3‑Sided Bezel‑Less, ES8.0 Compliant |
— |
— |
| Status |
In Production |
— |
— |
MV238FHM‑NG2 is primarily designed for high‑performance gaming and professional displays:
- Gaming Monitors: 240Hz high refresh for competitive FPS/RTS gaming (e.g., Acer XV241 series).
- Professional Displays: Color‑accurate workstations for design, video editing, and content creation (100% sRGB).
- All‑in‑One (AIO) PCs: Slim, borderless integration for desktop computing.
- Industrial Displays: Stable performance for factory monitoring, control panels, and public information terminals.
- Consumer Electronics: High‑end desktop monitors requiring smooth motion and wide viewing angles.
