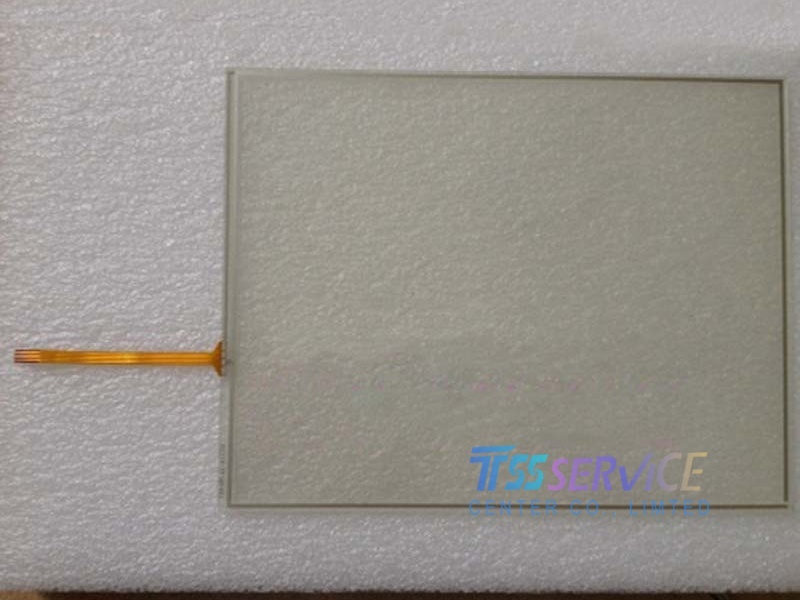

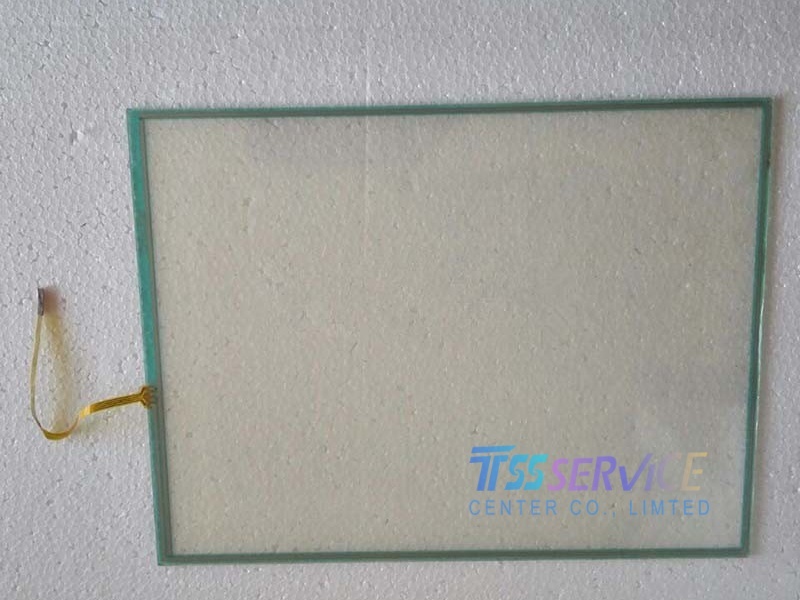

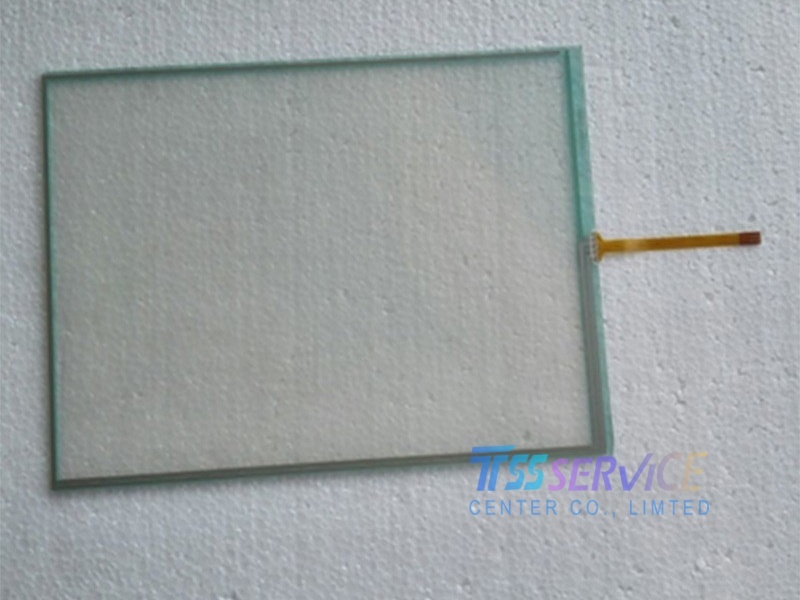

New Touch Screen N010-0554-X227
1. Physical Specifications
Parameter Specification Notes
Product Type Touch Screen Digitizer / Replacement Glass Panel
Screen Size 10.4 inches Diagonal measurement
Compatible Part Numbers Replaces N010-0554-X122/01, N010-0554-X022/01, and similar 10.4" panels Cross-compatible with multiple models in the N010 series
Touch Technology Analog Resistive 4-wire or 5-wire typical for industrial applications
Dimensions Standard 10.4" form factor Exact dimensions may vary by manufacturer
Construction Glass substrate with transparent conductive coating Durable for industrial use
2. Electrical & Interface Specifications
Parameter Specification Notes
Touch Interface Flexible flat cable (FFC) connector Standard resistive touch interface
Operating Voltage 3.3V - 5V DC Typical for resistive touch controllers
Activation Force 30-80 grams Light touch activation
Linearity < 1.5% Ensures accurate touch positioning
Transparency > 80% Good optical clarity
Touch Lifecycle > 1 million touches Durable for industrial use
3. Environmental Specifications
Parameter Specification Notes
Operating Temperature -20°C to +70°C Industrial temperature range
Storage Temperature -30°C to +80°C
Operating Humidity 10% to 90% RH (non-condensing)
Surface Hardness 3H - 6H pencil hardness Scratch-resistant
Chemical Resistance Resistant to mild industrial solvents Front surface only
4. Key Features
Feature Description
Direct Replacement Designed to replace cracked or unresponsive touch screens on industrial equipment
Plug-and-Play Matches original specifications for easy installation
Glove Compatibility Resistive technology allows operation with gloved hands (ideal for industrial environments)
Dust and Moisture Resistance Sealed edges prevent contamination when properly installed
Cost-Effective Repair Extends life of expensive industrial equipment without full display replacement
5. Typical Applications
Industry / Equipment Application
Industrial HMIs Replacement for damaged touch screens on operator panels
CNC Machine Controls Touch interface repair for machine tool controllers
Packaging Equipment Display repair for packaging line control panels
Medical Devices Touch screen replacement for diagnostic equipment
Test & Measurement Repair of laboratory instrument displays
Factory Automation General purpose touch screen replacement for various industrial equipment
6. Installation Notes
Consideration Recommendation
Compatibility Verification Confirm physical dimensions and connector type match original before installation
Adhesive May require double-sided adhesive tape for mounting (typically not included)
Controller Compatibility Ensure existing touch controller supports the replacement panel (resistive type is standard)
Calibration Recalibration may be required after installation
Professional Installation Recommended for optimal alignment and longevity
