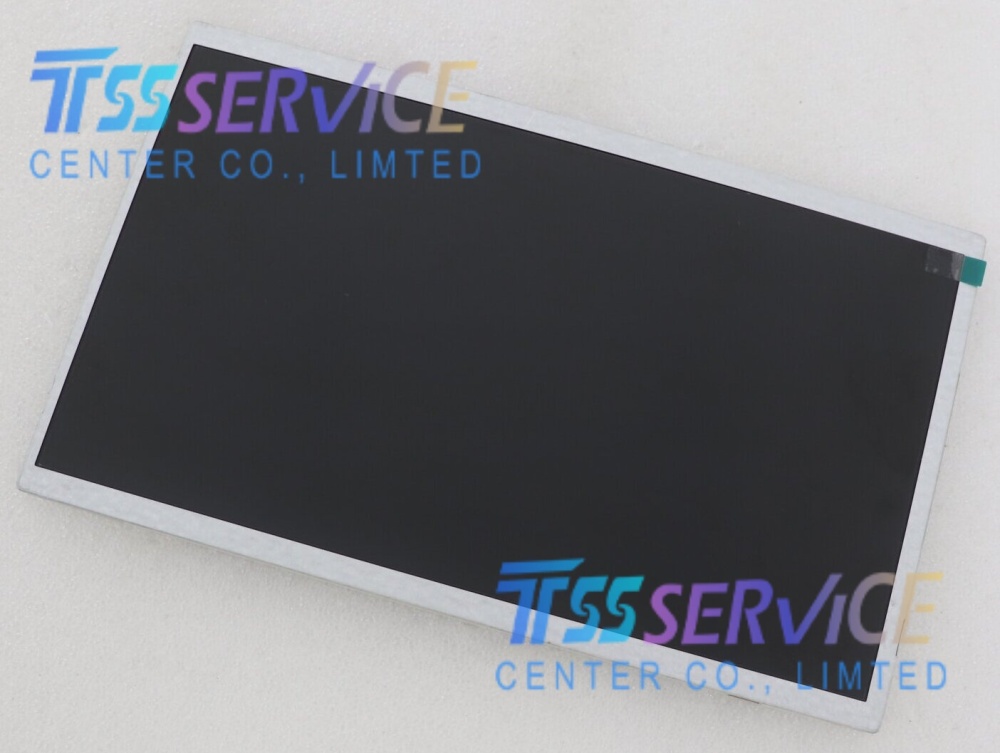

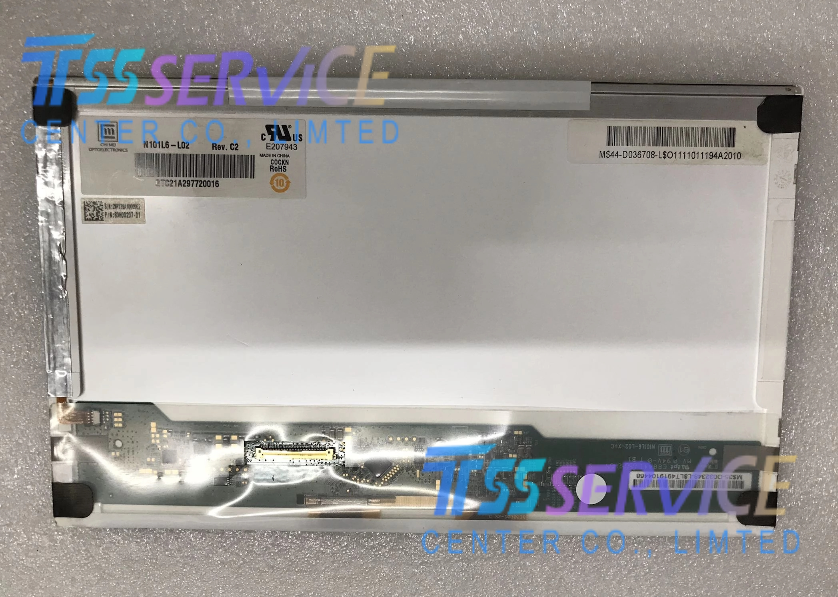

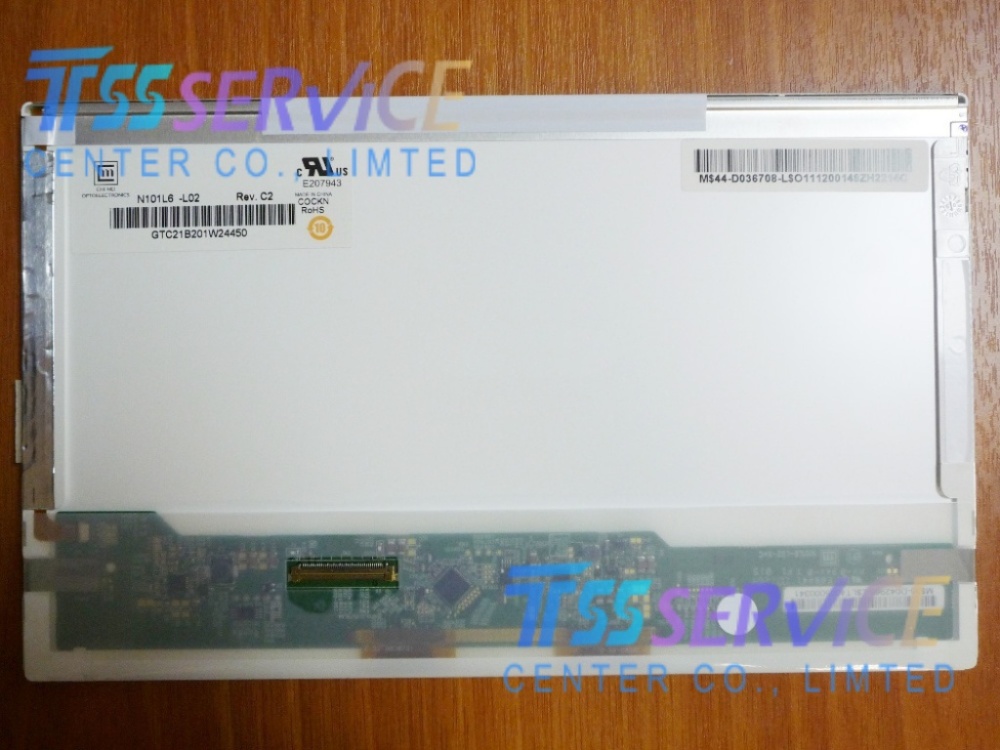

Chimei Innolux N101L6-L02 10.1 Inch 1024×600 TFT LCD Panel Display Screen for Industrial

Name: Chimei Innolux N101L6-L02 10.1 Inch 1024×600 TFT LCD Panel Display Screen for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: N101L6-L02
Price: 52 USD
Availability: InStock

SKU: N101L6-L02

Model Number: N101L6-L02 (Rev.C1 / Rev.C2, Alias: CMO1004)
Manufacturer: Chimei Innolux (CMO)
Diagonal Size: 10.1 inch (10.06" actual)
Native Resolution: 1024(RGB) × 600, WSVGA, 117 PPI, 17:10 Wide Ratio
Display Technology: a-Si TFT-LCD

0.0 (0 Reviews)

0 Sold

~~$58.00~~ $52.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Chimei Innolux N101L6-L02 10.1 Inch 1024×600 TFT LCD Panel Display Screen for Industrial

Item	Parameter Details
Model Number	N101L6-L02 (Rev.C1 / Rev.C2, Alias: CMO1004)
Manufacturer	Chimei Innolux (CMO)
Diagonal Size	10.1 inch (10.06" actual)
Native Resolution	1024(RGB) × 600, WSVGA, 117 PPI, 17:10 Wide Ratio
Display Technology	a-Si TFT-LCD, TN Mode, Normally White, Transmissive
Pixel Arrangement	RGB Vertical Strip
Active Display Area	222.72 mm (W) × 125.28 mm (H)
Overall Outline Dimension	235 (W) × 143 (H) × 5.2 (D) mm
Typical Brightness	200 cd/m²
Contrast Ratio	650:1 (Typical)
Viewing Angle (CR≥10)	Left/Right/Up/Down: 45° / 45° / 20° / 45°; Optimal View: 6 o’clock
Response Time	Tr=3ms / Td=7ms (Typ.)
Display Color Depth	262K Colors, 45% NTSC Color Gamut
Refresh Rate	60Hz, DE Only Mode
Backlight System	9S2P WLED, Built-in LED Driver, 15,000 Hours Lifespan
Signal Interface	Single Channel 6-bit LVDS, 40Pin Left-Side Connector
Supply Voltage	3.3V Logic Voltage
Surface Treatment	Glossy Glare Surface (Haze 0%), 3H Hard Anti-Scratch Coating
Touch Configuration	LCD Only, No Integrated Touch Glass
Operating Temperature	0°C ~ +50°C
Storage Temperature	-20°C ~ +60°C
Net Weight	180/190g (Typ./Max.)

Applications

Mini Netbook / Small Notebook PC Original & Replacement Screens (HP Mini, Toshiba NB series etc.)
Embedded Industrial HMI Control Terminals, Factory Automation Operation Panels
Portable Industrial PDA, Handheld Data Collection & Field Inspection Devices
Self-Service Mini Kiosks, Small Query & Information Display Terminals
Portable POS Payment Terminals, Retail Mini Cash Register Displays
Vehicle Rear Seat Entertainment Auxiliary Monitors, Small In-Car Displays
Indoor Video Intercom & Smart Video Door Phone Main Display Modules
Medical Auxiliary Portable Diagnostic Equipment, Vital Sign Monitoring Screens
CNC, Packaging & Textile Machinery Small Operator Control Panels
Environmental Test Instruments, Portable Data Logger & Measuring Equipment
Smart Home Central Control Panels, Building Access Monitoring Displays
Vintage Embedded Equipment LCD Replacement Spare Parts
