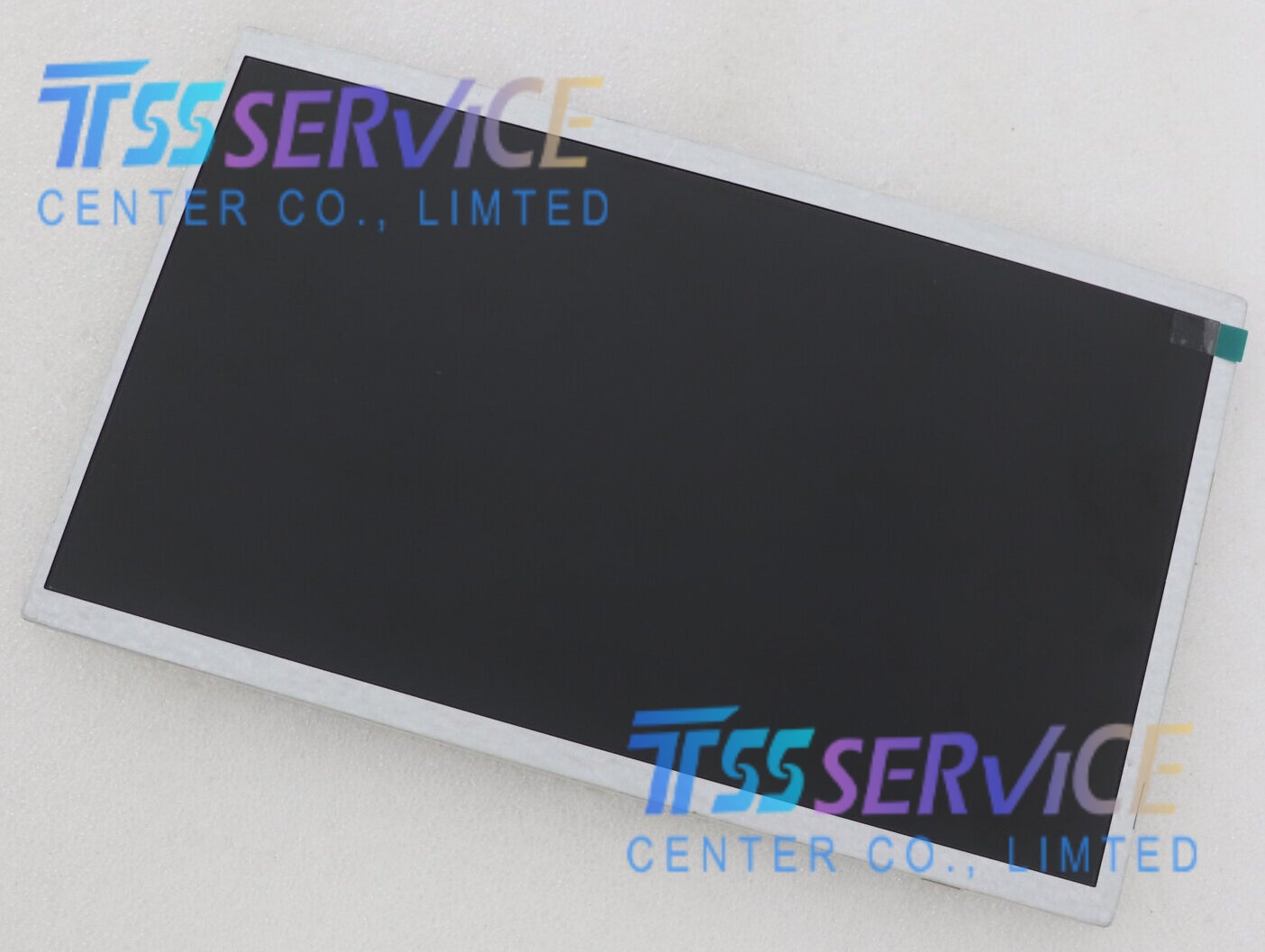

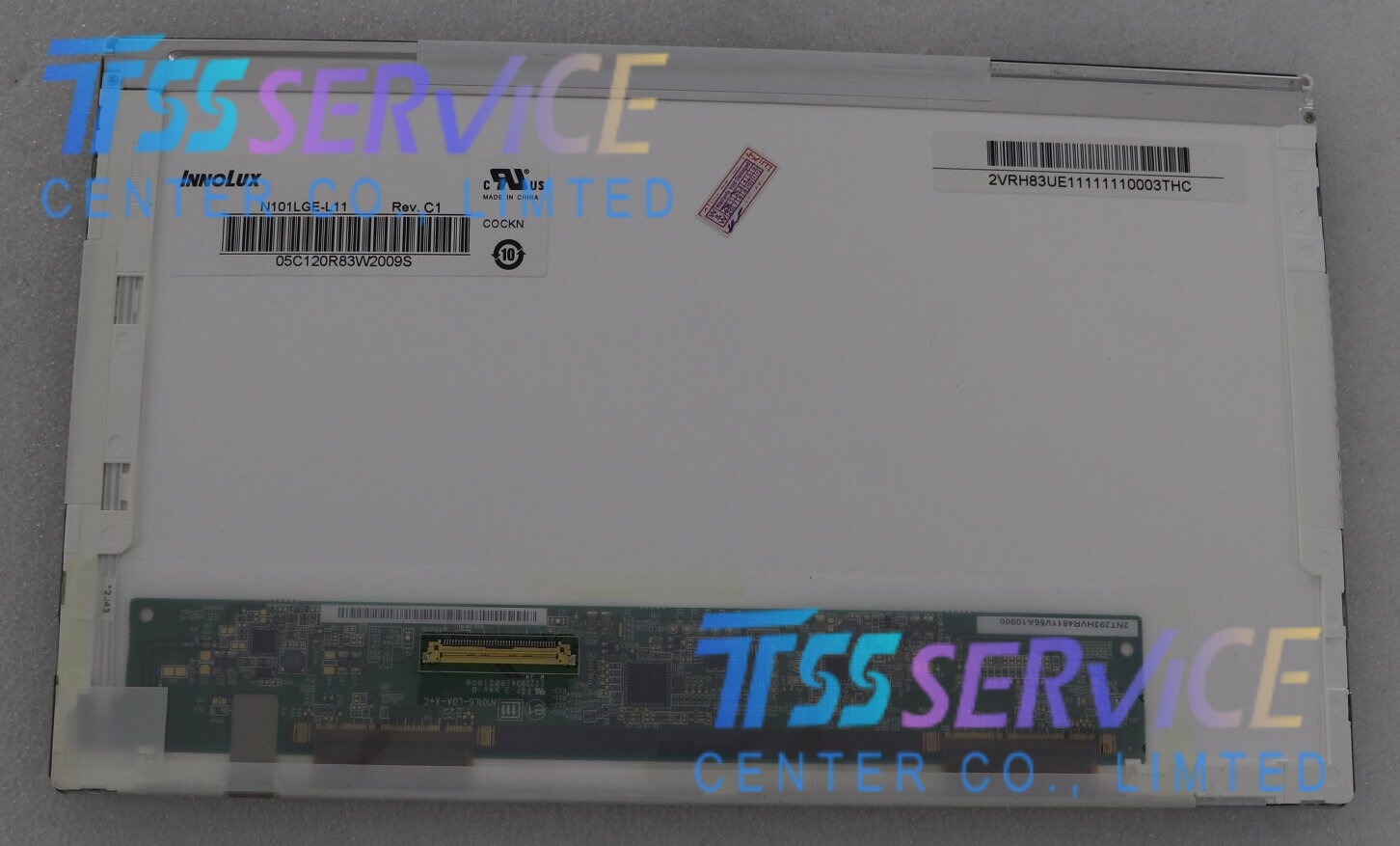

Innolux N101LGE-L11 10.1 Inch WSVGA TFT LCD Panel 1024×600 Display Screen for Netbook Portable Industrial Equipment

Name: Innolux N101LGE-L11 10.1 Inch WSVGA TFT LCD Panel 1024×600 Display Screen for Netbook Portable Industrial Equipment
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: N101LGE-L11
Price: 50 USD
Availability: InStock

SKU: N101LGE-L11

Model Number: N101LGE-L11
Diagonal Screen Size: 10.1"
Panel Type: a-Si TFT-LCD, TN Normally White Transmissive LCM
Native Resolution: 1024(RGB) × 600 (WSVGA), 16:9

0.0 (0 Reviews)

0 Sold

~~$55.00~~ $50.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Innolux N101LGE-L11 10.1 Inch WSVGA TFT LCD Panel 1024×600 Display Screen for Netbook Portable Industrial Equipment

Item	Detailed Parameter
Manufacturer (Mfr.)	Chimei Innolux
Model Number	N101LGE-L11
Diagonal Screen Size	10.06 Inch (10.1" nominal)
Panel Type	a-Si TFT-LCD, TN Normally White Transmissive LCM
Native Resolution	1024(RGB) × 600 (WSVGA), 16:9
Pixel Pitch	0.2175mm (W) × 0.2088mm (V)
Dot Layout	RGB Vertical Stripe
Active Display Area	222.72(W) × 125.28(H) mm
Overall Outline Dimension	235.0(W) × 143.0(H) × 5.2(D) mm
Panel Weight	180g (Min.) ~ 190g (Max.)
Surface Treatment	Antiglare Matte, 3H Hard Coating
Typical Brightness	200 cd/m²
Contrast Ratio	500:1 (Typ., TM Mode)
Viewing Angle (U/D/L/R)	45° / 45° / 20° / 45° (CR≥10)
View Direction	6 o'clock
Response Time	3ms Tr / 7ms Td (Typ.)
Display Colors	262K (6-bit color depth)
Refresh Frequency	60Hz
Light Source	WLED with built-in driver IC, 15,000 Hours Lifespan

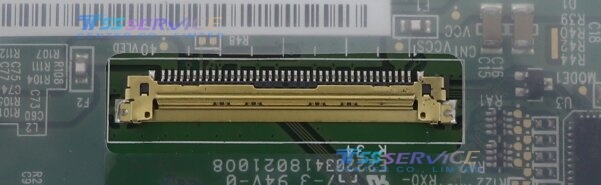

Signal Interface	LVDS (1 channel, 6-bit), 40 pins FPC Connector
Input Voltage	3.3V (Typ. VCC)
Touch Function	Without Touch Screen
Operating Temperature	0℃ ~ +50℃
Storage Temperature	-20℃ ~ +60℃
