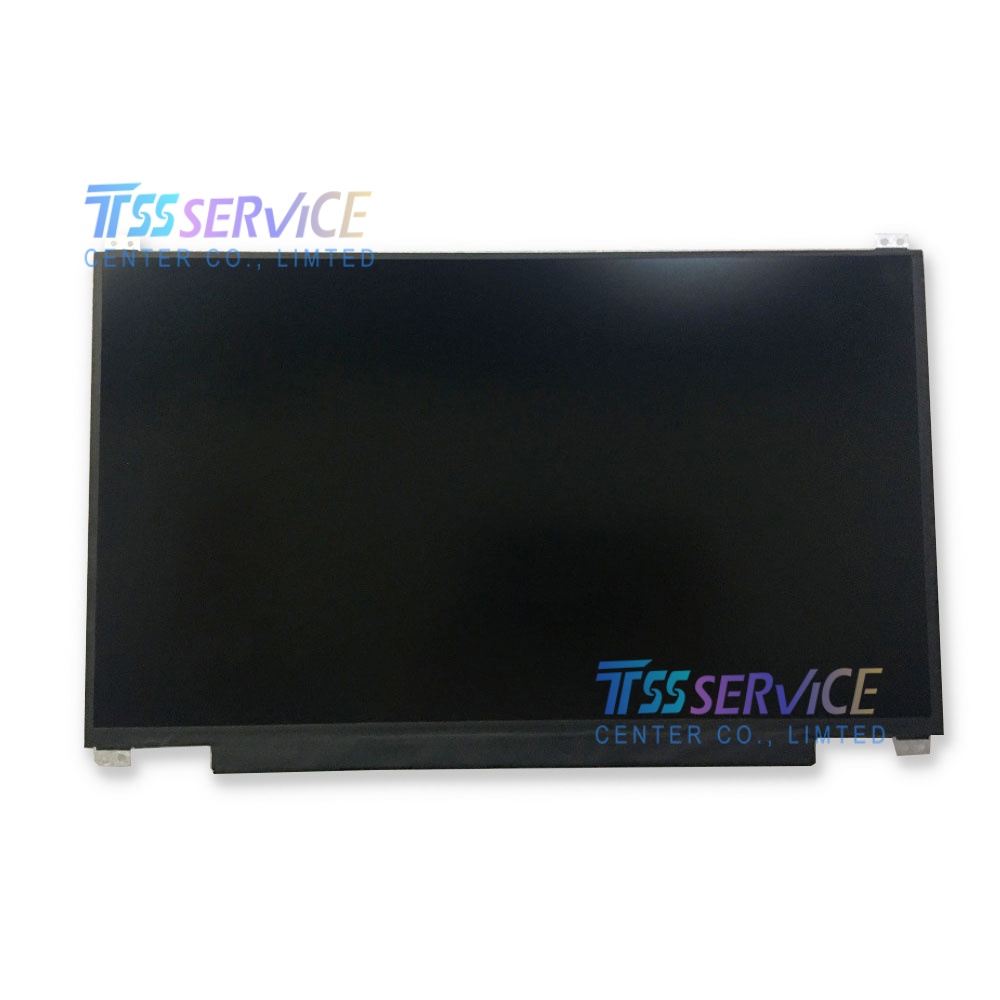

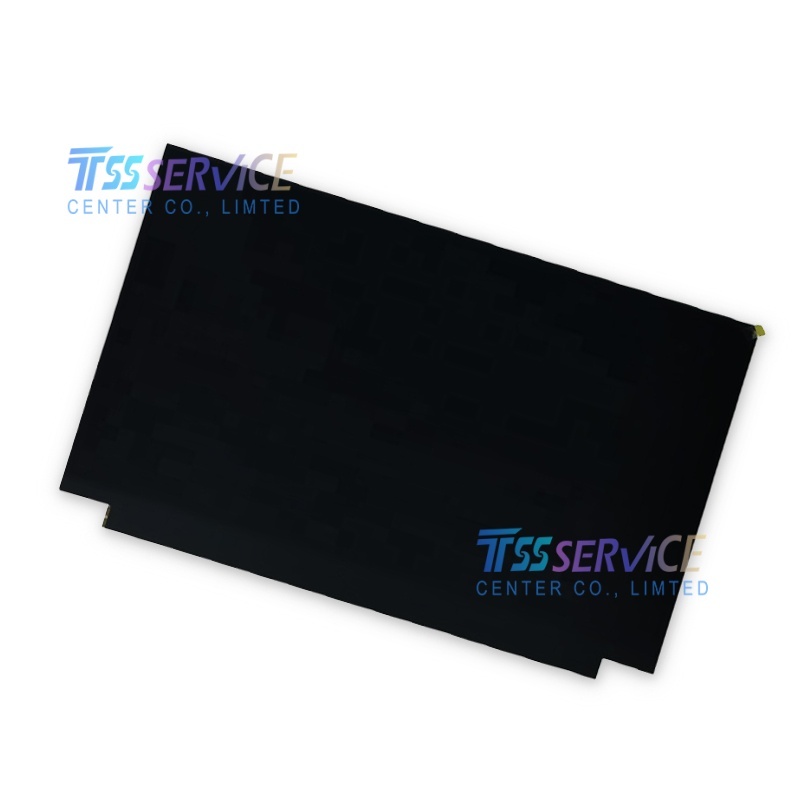

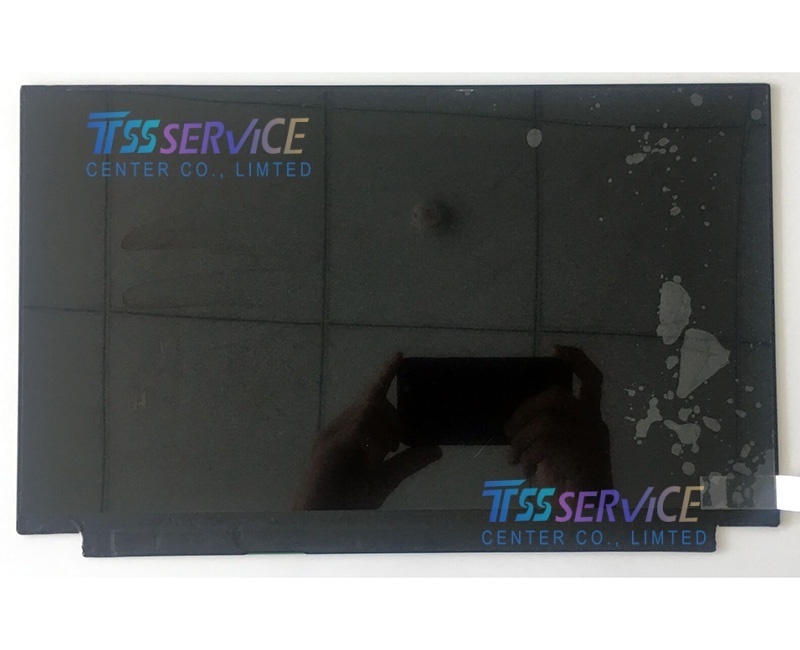

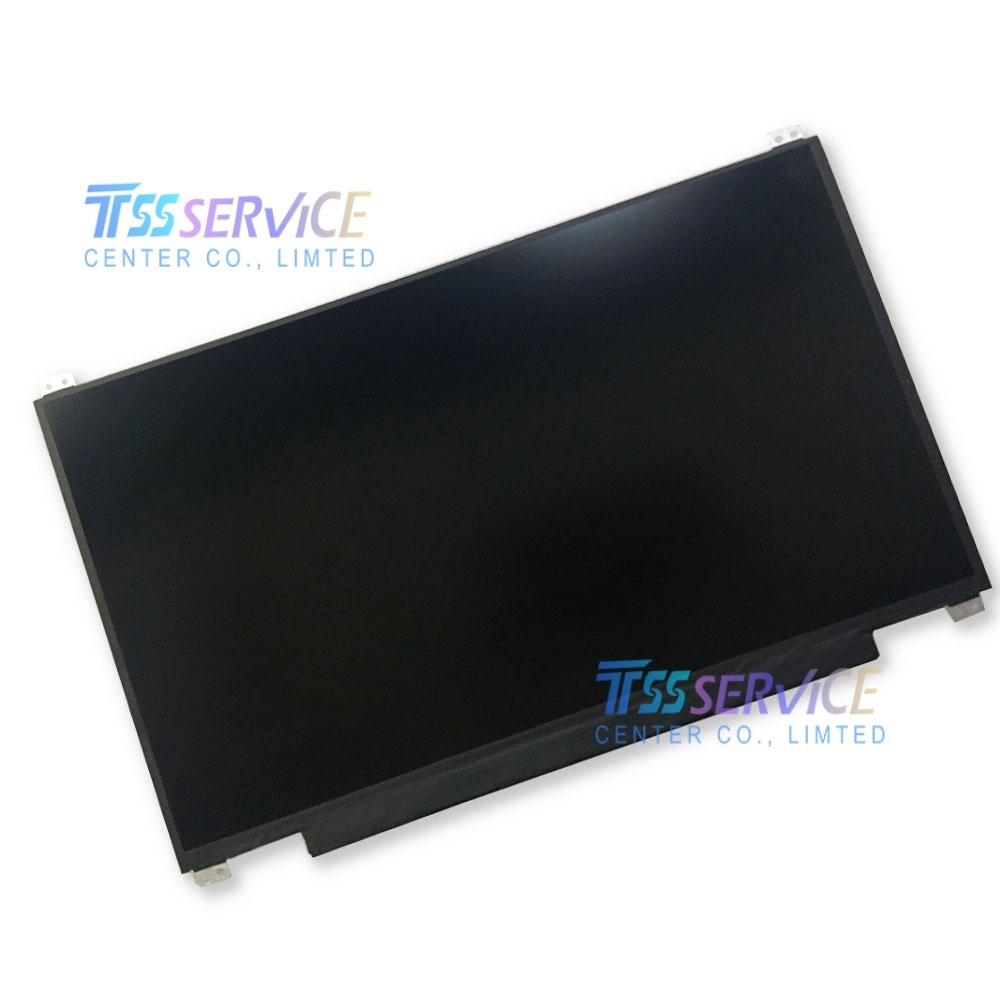

N133HCE-E7A Innolux 13.3 inch 1920×1080 LCD Panel Screen For Industrial
| Parameter |
Value |
| Brand |
Innolux (CMO) |
| Model |
N133HCE‑E7A (CMN13B6) |
| Panel Type |
a‑Si TFT‑LCD, IPS (AAS), Normally Black, Transmissive |
| Diagonal Size |
13.3 inches |
| Resolution |
1920(RGB) × 1080 (FHD), 166 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Aspect Ratio |
16:9 |
| Active Area |
293.76(W) × 165.24(H) mm |
| Outline Dimension |
300.26(W) × 177.53(H) × 4.5(D) mm |
| Surface Treatment |
Matte (Anti‑Glare), Hard coating (3H) |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) |
| Display Colors |
16.7M (8‑bit) |
| Color Gamut |
45% NTSC (Typ.) |
| Response Time |
11/9 ms (Typ., Tr/Td) |
| Viewing Angle |
89/89/89/89° (Typ., CR≥10) |
| Backlight |
WLED, Edge‑lit, 15,000 hrs (Typ.), with LED Driver |
| Interface |
eDP 1.2 (2 lanes), 30‑pin connector (Bottom Right) |
| Supply Voltage |
3.3 V (Typ.) |
| Refresh Rate |
60 Hz |
| Power Consumption |
2.79 W (Typ.) |
| Operating Temp |
0°C to +50°C |
| Storage Temp |
−20°C to +60°C |
| Vibration |
1.5G (14.7 m/s²) |
| RoHS |
Compliant |
| Touch Panel |
None |
N133HCE‑E7A is a mainstream, low‑power IPS panel optimized for
ultra‑thin laptops, 2‑in‑1 convertibles, and portable devices requiring reliable indoor visibility and wide viewing angles.
