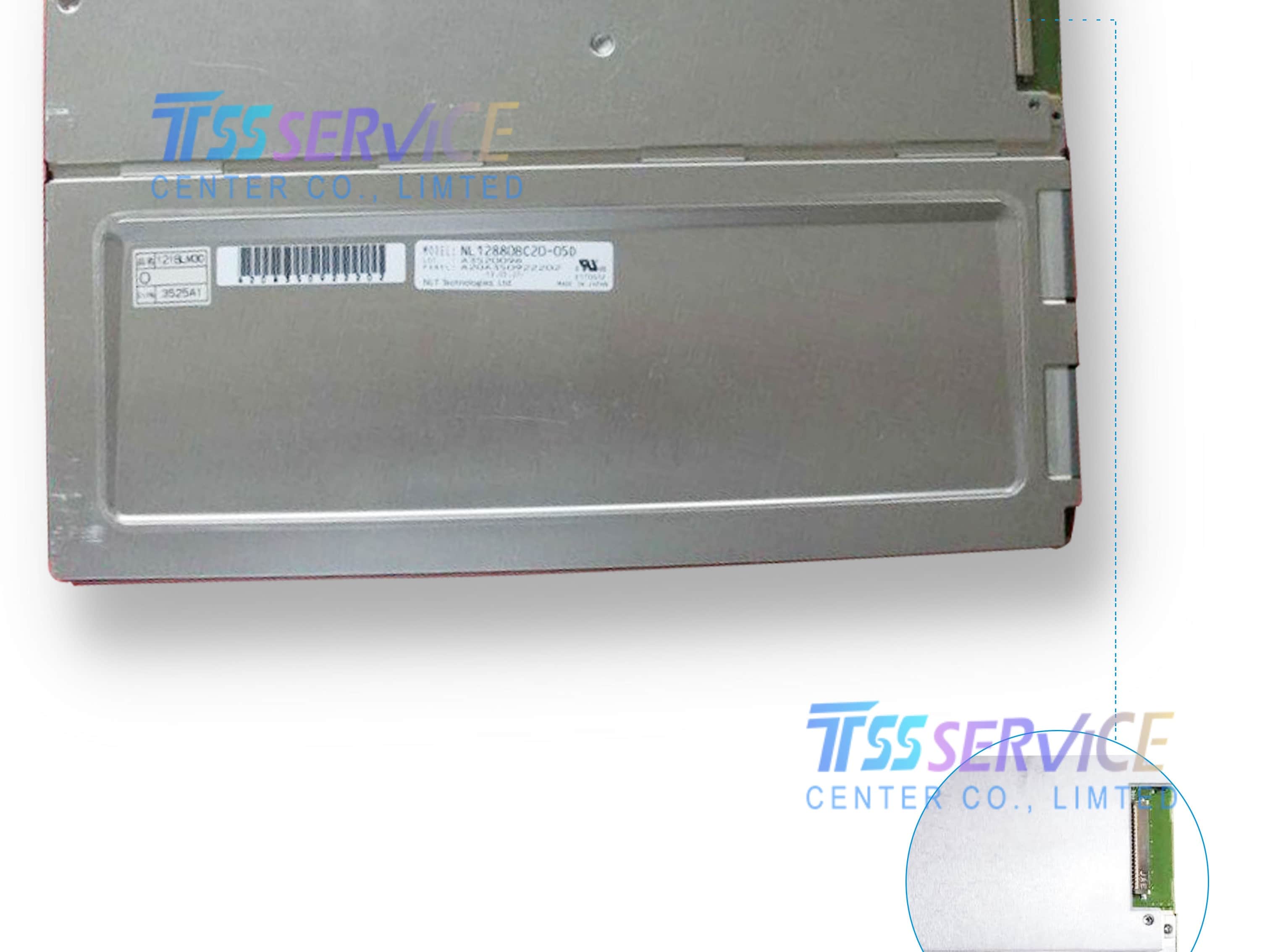

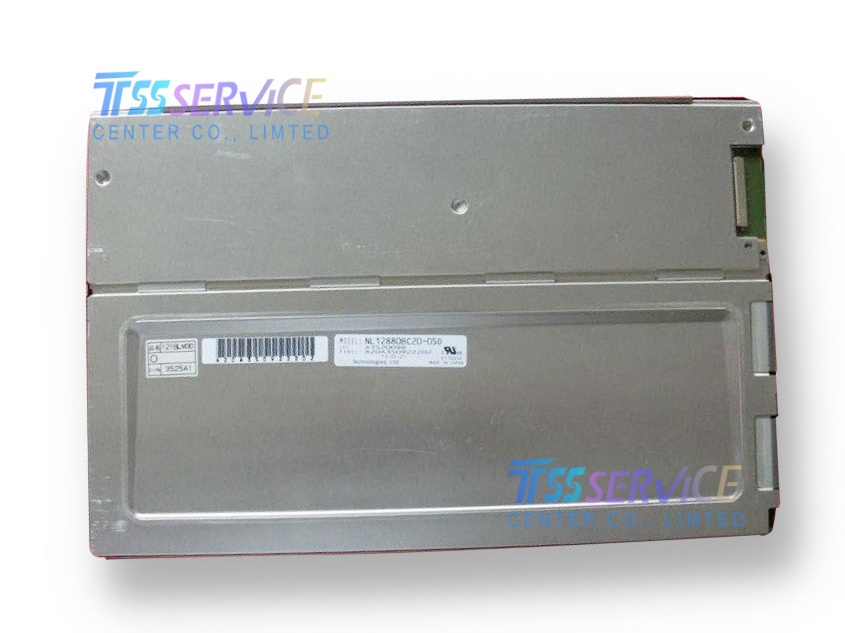

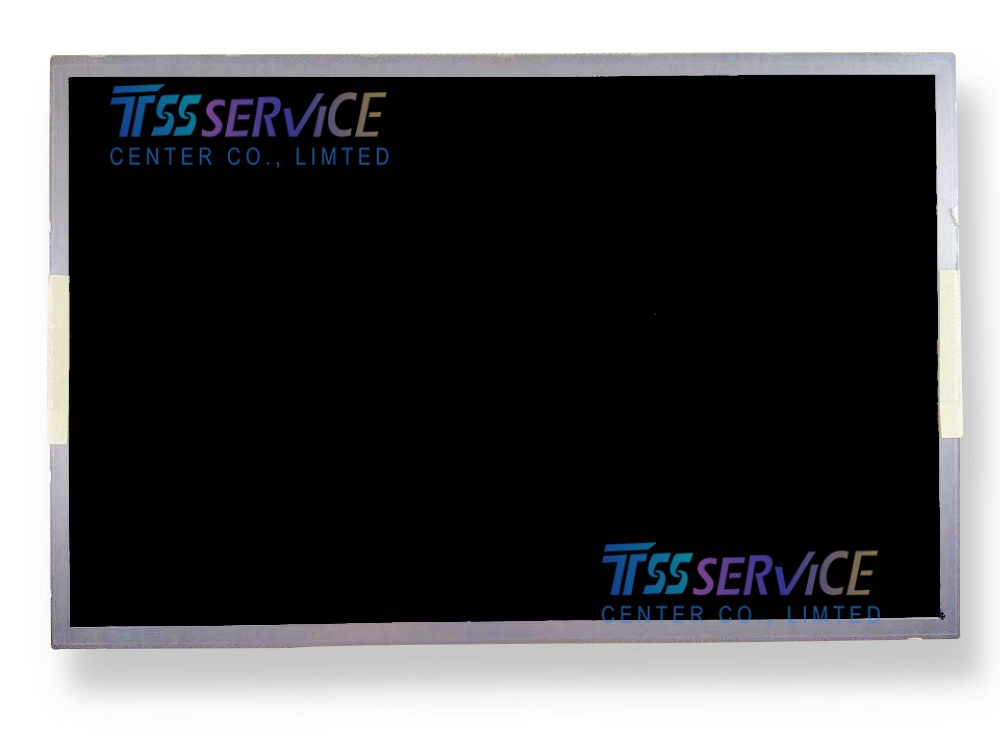

NEC 12.1" 1280×800 NL12880BC20-05D a-Si TFT-LCD Display Panel Screen for industrial
Overview:
The NL12880BC20-05D is a high-performance 12.1-inch a-Si TFT-LCD panel manufactured by NEC (NLT), specifically engineered for robust industrial applications. It features a WXGA resolution of 1280×800 pixels and utilizes an LVDS interface for reliable signal transmission. With its wide operating temperature range, high brightness, and natural light TFT (ST-NLT) technology, this industrial LCD display ensures superior visibility and durability. It is an ideal 12.1 inch TFT module for systems requiring wide viewing angles and long-term stability, making it a sought-after NEC industrial screen for demanding environments.
| Parameter |
Specification |
| Model Name |
NL12880BC20-05D |
| Brand |
NEC / NLT |
| Screen Size |
12.1 inch |
| Screen Type |
a-Si TFT-LCD |
| Resolution |
1280 × 800 (WXGA) |
| Aspect Ratio |
16:10 (8:5) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Display Area |
261.12 × 163.2 mm (H×V) |
| Outline Dimensions |
277.7 × 180.6 × 9.2 mm (H×V×D) |
| Interface Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Color Depth |
262K/16.7M 40% NTSC |
| Backlight |
WLED (White LED), 70,000 hours life |
| Viewing Direction |
Symmetry |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Supply Voltage |
3.3V (Typ.) |
| Touch Panel |
None |
NEC
Typical Applications:
The NL12880BC20-05D is widely utilized in sectors requiring durable and high-quality visual interfaces:
- Industrial Automation: Human-Machine Interfaces (HMI), CNC machine control panels, and factory monitoring systems.
- Medical Equipment: Patient monitoring systems, diagnostic imaging displays, and medical carts.
- Transportation & Marine: Ruggedized vehicle mounts, railway control displays, and navigation systems.
- Security & Surveillance: CCTV monitoring stations and video wall components.
- Test & Measurement: Portable analyzers and data acquisition devices.
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
