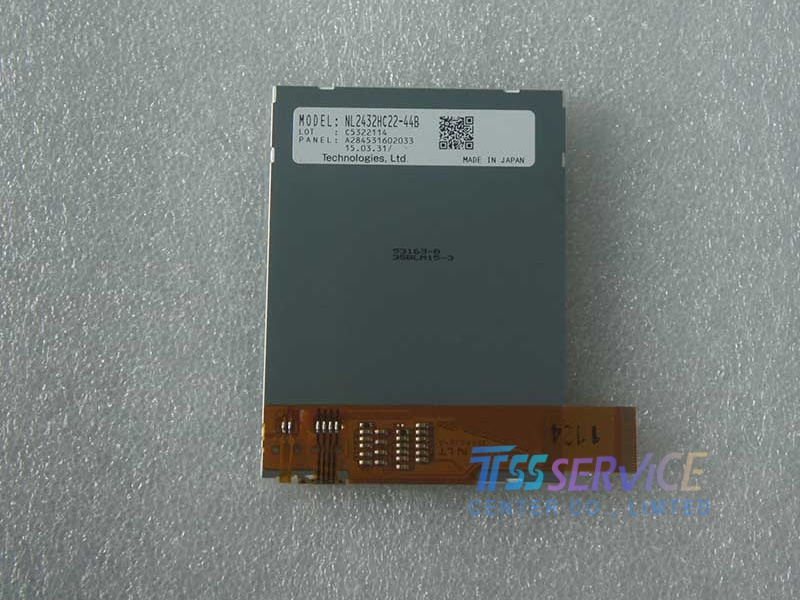

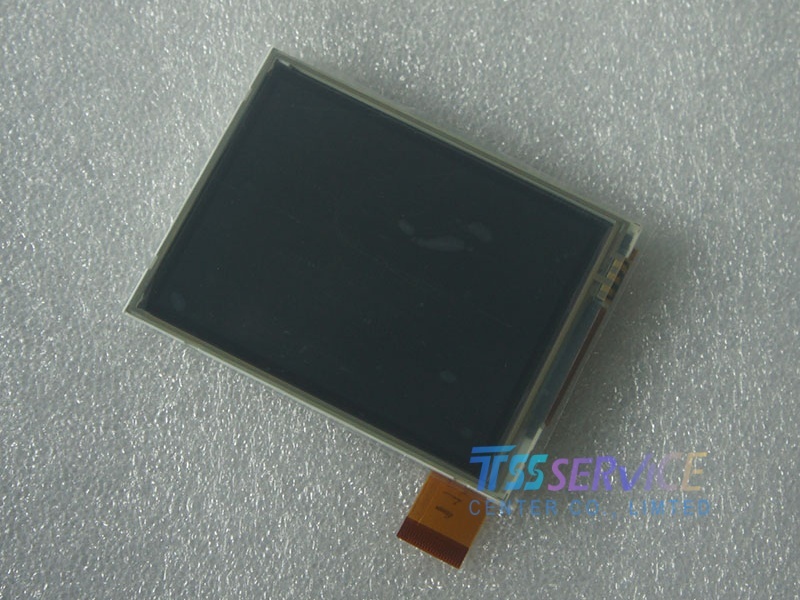

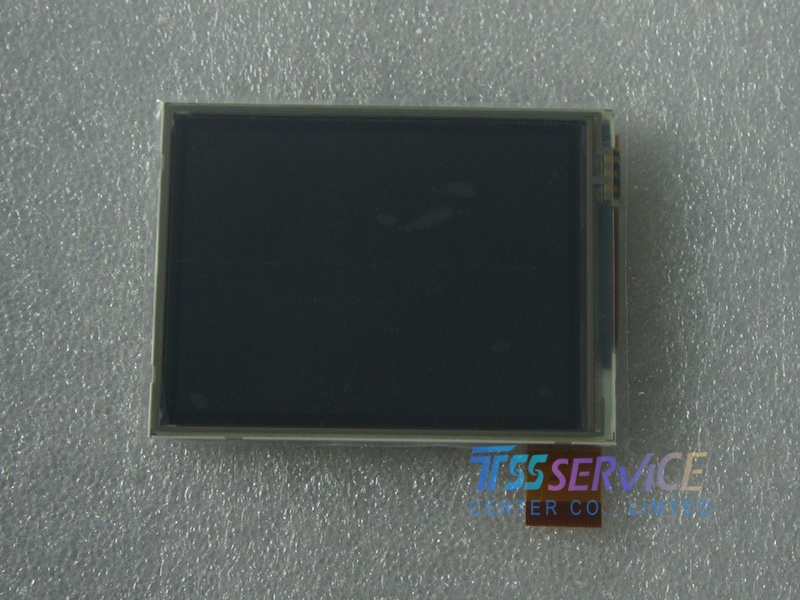

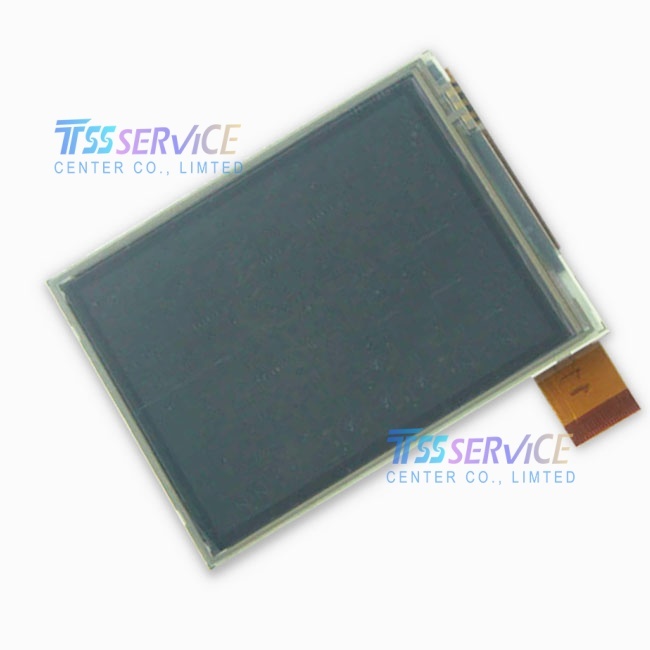

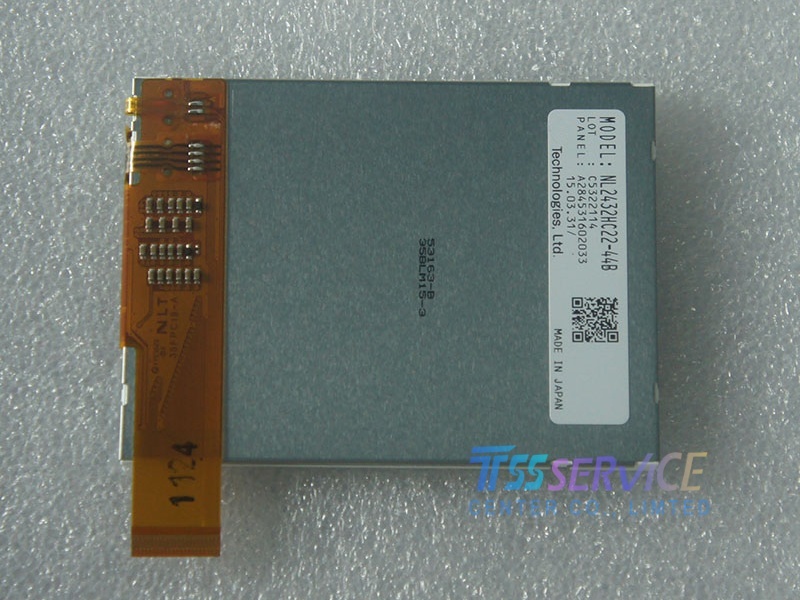

NL2432HC22-44B NEC 3.5 inch 240×320 LCD Display Panel Screen

SKU: NL2432HC22-44B
Quality:test ok before ship it
Stock Location:China
Warranty : 1 year
Delivery:WorldWide
Lead Time:1-3 Days
Shipping : DHL , FEDEX ,  EMS , UPS ..
0.0 (0 Reviews)
0 Sold
$105.00 $98.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
1/1
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • NL2432HC22-44B  NEC  3.5 inch lcd display panel
  • Description
NEC​ Display NL2432HC22-44B General Features
NL2432HC22-44B
 is a 3.5-inch TFT-LCD display panel manufactured by NEC. As part of the established NL2432 series, it features a QVGA resolution of 240 x 320 pixels, delivering sharp and clear visuals. Utilizing amorphous silicon (a-Si) technology, this module is engineered for stable performance and durability. It is designed for seamless integration into a variety of embedded and portable applications, making it an excellent choice for devices such as handheld medical instruments, portable industrial controllers, consumer electronics, and point-of-sale terminals where a compact, reliable, and high-quality display is essential for optimal user interface performance.

Brand NEC
Model NL2432HC22-44B
Panel-type a-Si TFT-LCD, LCM
Size 3.5"
Resolution 240(RGB)×320, QVGA, 113PPI
Configuration
RGB Vertical Stripe
Display Area
53.64(W)×71.52(H) mm
Outline Dim.
63.5(W)×85(H)×5.7(D) mm
Bezel Area
57.64(W)×76.52(H) mm
Treatment
Clear,Hard coating (3H)
Luminance
200 cd/m² (Typ.)
Contrast Ratio 150:1 (Typ.) (TM)     15:1 (Typ.) (RF)
Response Time 7/23 (Typ.)(Tr/Td)
Viewing Angle 30/30/30/35 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transflective
Support Color 262K , 40% NTSC
Light Source WLED  [6S1P] , 50K hours , W/O Driver
Panel Weight 49.0/51.0g (Typ./Max.)
Frame Rate
60Hz
Touch Panel 4-wire Resistive Touch
Signal Interface Parallel RGB (1 ch, 6-bit) , 45 pins Connector
Power Supply
  • 3.0V (Typ.)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

1.Question: What is the current stock status of this NEC 3.5-inch LCD display panel? How soon can it be shipped after placing an order?
 Answer: We currently have the item in stock. Typically, orders are processed and shipped within 1-3 business days after payment is received. If you have urgent delivery requirements, please contact us to confirm before placing your order.

2.Question: How do you package this 3.5-inch LCD panel during transport to ensure its safety?
Answer: Each panel is individually sealed in an anti-static bag and placed in a custom foam tray to secure its position, with special protection for the glass panel and flex cable interface. The outer box uses thickened rigid cardboard with shock-absorbing cushioning materials to ensure the product is not damaged during transit.
