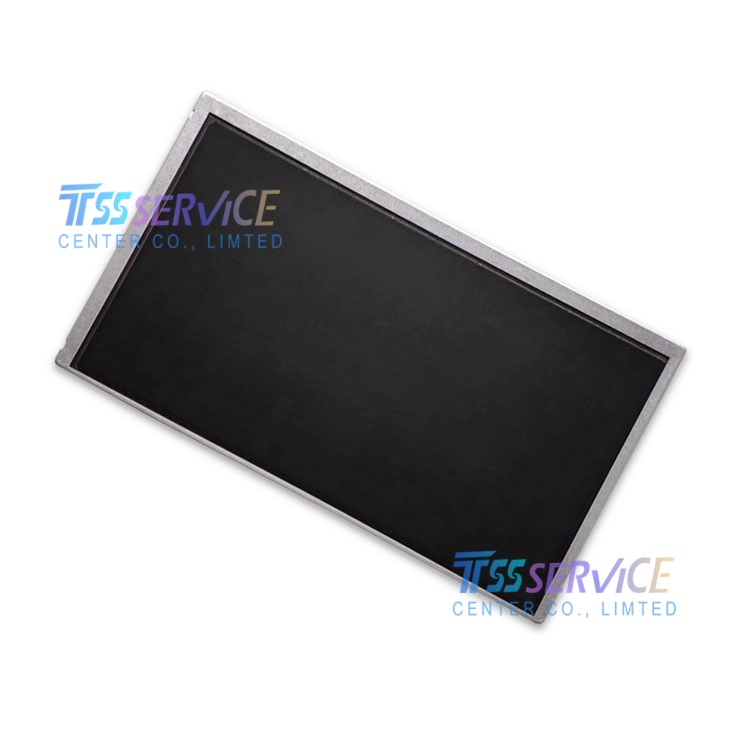

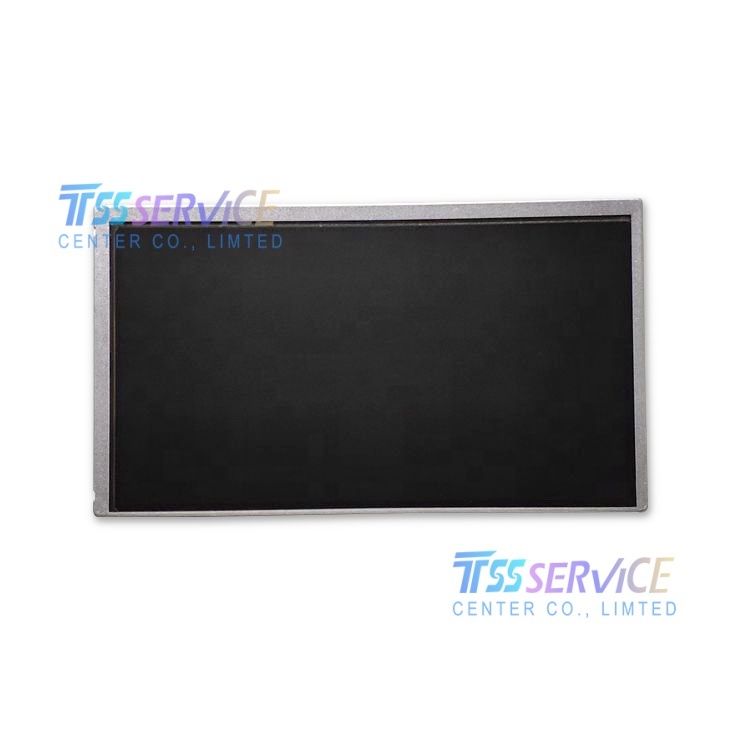

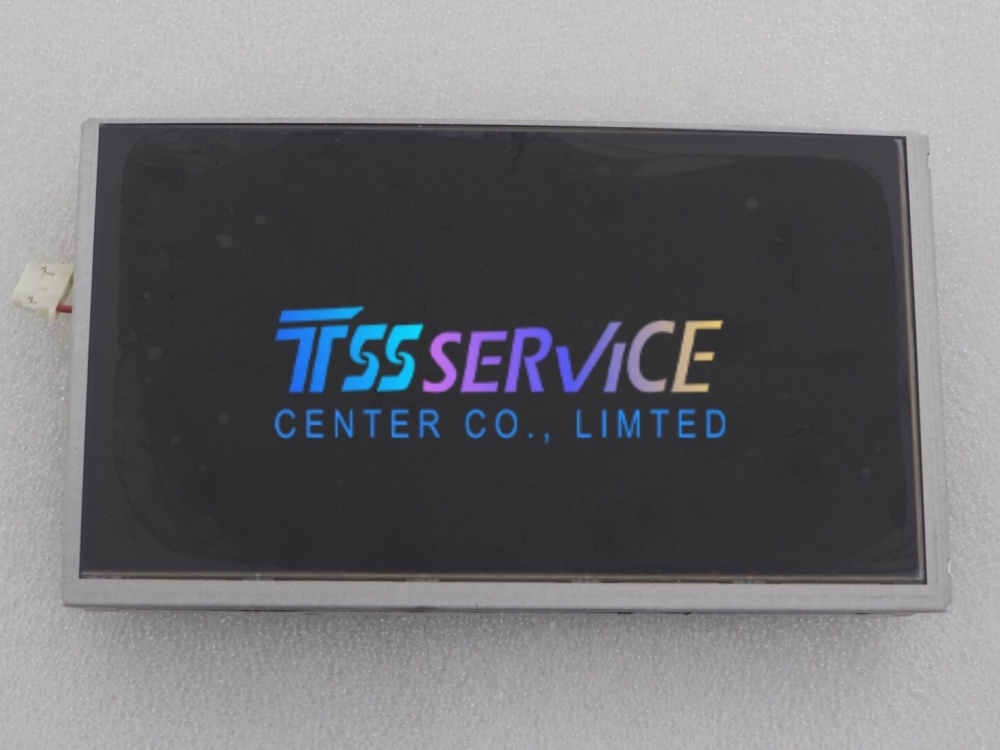

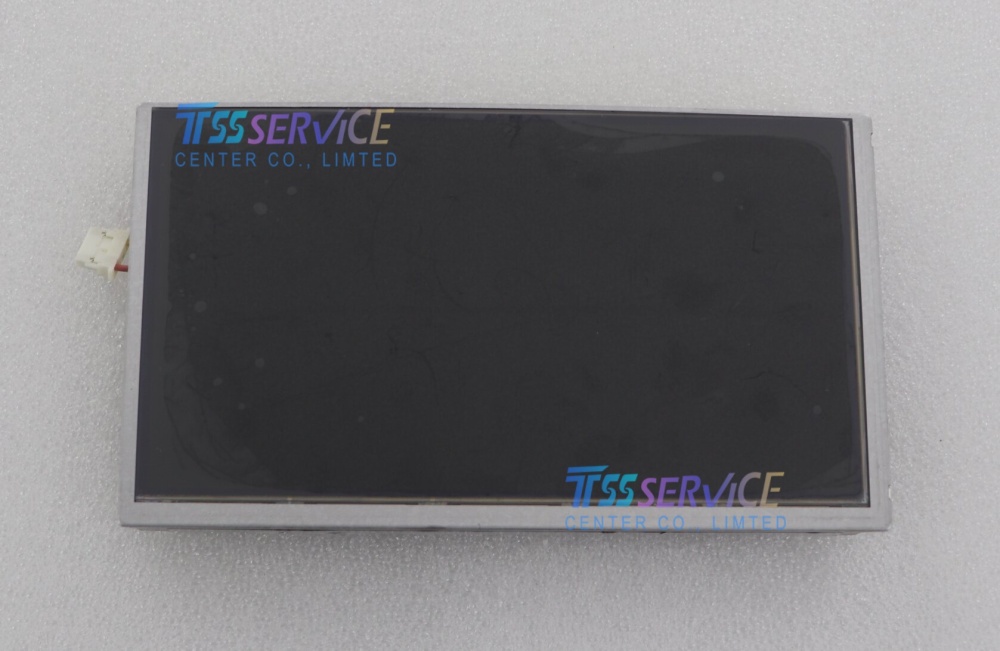

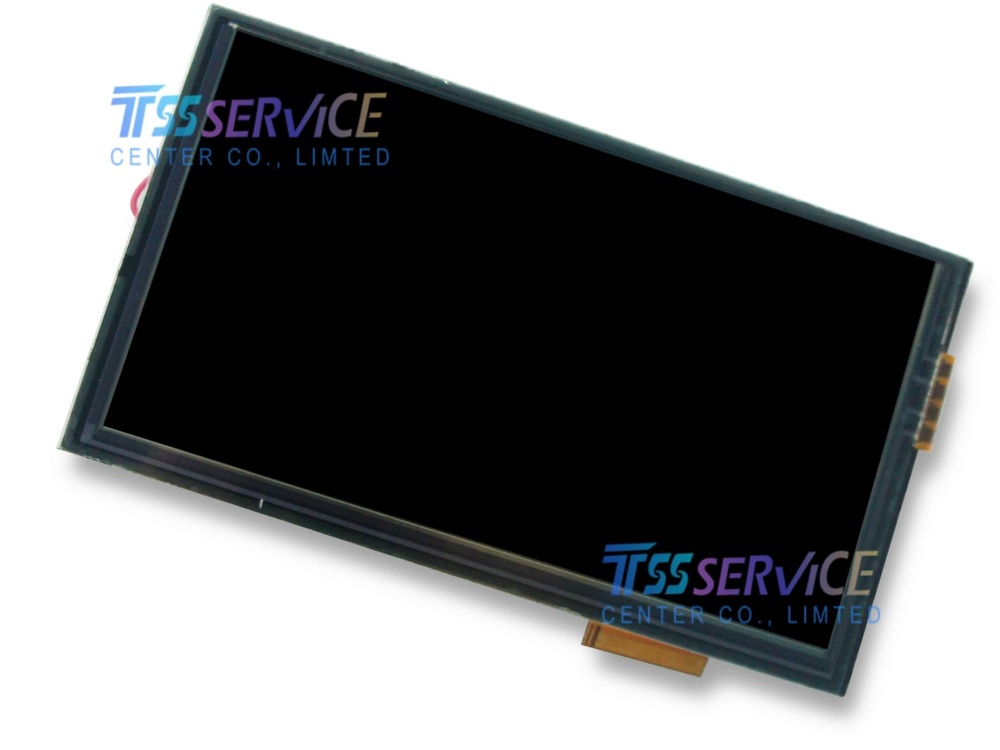

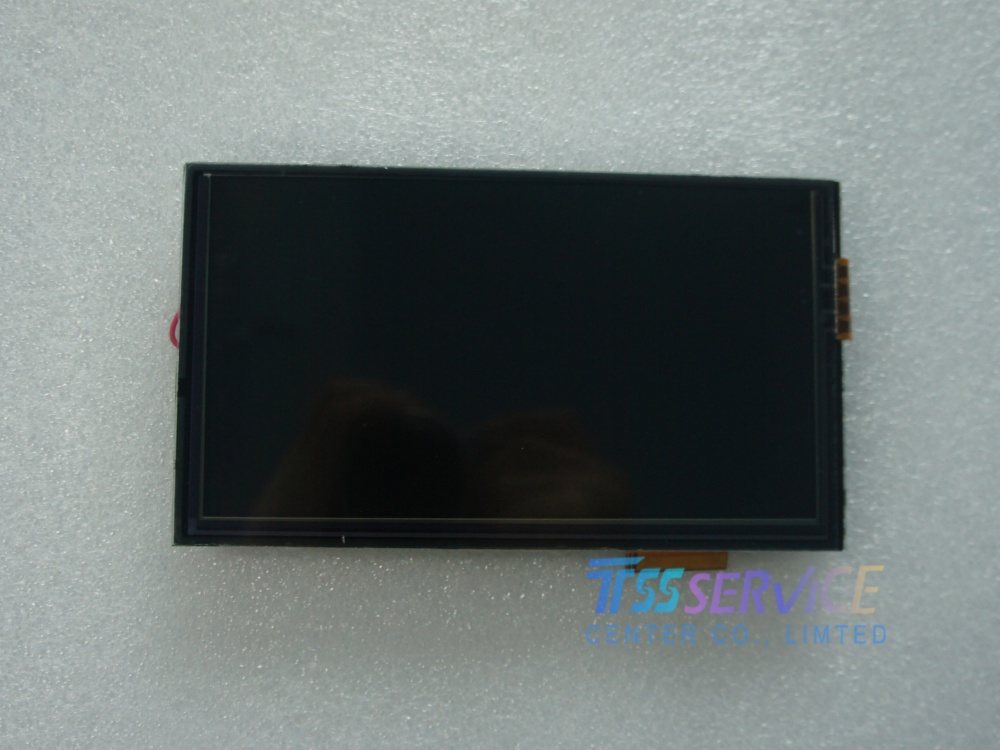

LQ065Y5DG02A | Sharp 6.5" WVGA Automotive & Industrial TFT-LCD Module
LQ065Y5DG02A is the revised upgraded version of Sharp LQ065Y5DG02 6.5-inch WVGA LCD module, developed for automotive navigation and heavy-duty industrial control terminals. It retains full mechanical, interface and optical core parameters of LQ065Y5DG02, with optimized FPC wiring layout, enhanced ESD protection and improved backlight uniformity. Equipped with 500 cd/m² high brightness, single edge CCFL backlight, 65-pin 6-bit parallel RGB TTL interface, matte anti-glare surface and ultra-wide -30℃~+85℃ temperature range, it supports up to 2.9G anti-vibration performance. No built-in touch screen, compatible with external 4-wire resistive touch overlay. Widely used for car multimedia hosts, construction machinery on-board monitors, outdoor portable test instruments, heavy industrial HMI and screen replacement for legacy automotive/industrial equipment.
| Parameter Item |
Specification Details |
| Full Part Number |
LQ065Y5DG02A |
| Manufacturer |
Sharp Corporation (Japan) |
| Diagonal Size |
6.5 inch, landscape, 16:9 wide aspect ratio |
| Native Resolution |
800(H) × 480(V) pixels (WVGA, 144 PPI) |
| Display Technology |
a-Si TFT-LCD, TN mode, Normally White, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Active Area (AA) |
144.0 mm (W) × 78.24 mm (H) |
| Overall Outline Dimension |
160.0 mm (W) × 94.0 mm (H) × 8.5 mm (Thickness) |
| Typical Brightness |
500 cd/m² (semi-sunlight readable) |
| Minimum Contrast Ratio |
100:1 |
| Viewing Angle (L/R/U/D, CR≥5) |
65° / 65° / 60° / 65°, optimal viewing: 6 o'clock |
| Response Time (Tr / Td) |
30 ms / 50 ms typical |
| Display Color Depth |
262K colors (6-bit single channel) |
| Backlight System |
Single edge CCFL lamp, service life ≥10,000 hours, external inverter required |
| Signal Interface |
Single-channel parallel RGB TTL (6-bit), 65-pin optimized FPC connector |
| Supply Voltage Group |
VSHD=3.3V, VSHA=5.3V, VDD=15V, VEE=-12V, VCC=-14.1V |
| Refresh Rate |
60 Hz standard |
| Touch Function |
No integrated touch (external resistive touch overlay customizable) |
| Surface Treatment |
Matte anti-glare polarizer, hard scratch-resistant coating |
| Vibration Resistance |
2.9G automotive/industrial high anti-vibration standard |
| Operating Temperature |
-30°C ~ +85°C ultra-wide temperature tolerance |
| Storage & Transport Temp |
-40°C ~ +85°C |
| Net Weight |
Max 185 g lightweight |
| Version Upgrade vs LQ065Y5DG02 |
Optimized FPC routing, upgraded ESD immunity, consistent mechanical & electrical pinout, fully pin-to-pin interchangeable |
| Compliance Standard |
RoHS compliant, automotive-grade reliability certification |
| Production Status |
Discontinued original mass production, sufficient stock for equipment maintenance & retrofit projects |
