6AV2124-0MC01-0AX0 | Siemens SIMATIC TP1200 Comfort Panel (Touch + Front Mask)
6AV2124-0MC01-0AX0 is a 12.1-inch widescreen TFT touch HMI panel from Siemens SIMATIC TP1200 Comfort series, integrated with resistive touchscreen and IP65-rated front mask. It features 1280×800 resolution, 16 million colors, multiple industrial communication ports, and Windows CE 6.0 OS, designed for high-end industrial visualization and machine-level control applications.
| Parameter Item |
Specification Details |
| Part Number |
6AV2124-0MC01-0AX0 |
| Manufacturer |
Siemens AG |
| Product Series |
SIMATIC TP1200 Comfort |
| Display Size |
12.1-inch widescreen, 16:10 |
| Resolution |
1280 × 800 pixels (WXGA) |
| Display Type |
TFT LCD, 16 million colors |
| Touchscreen |

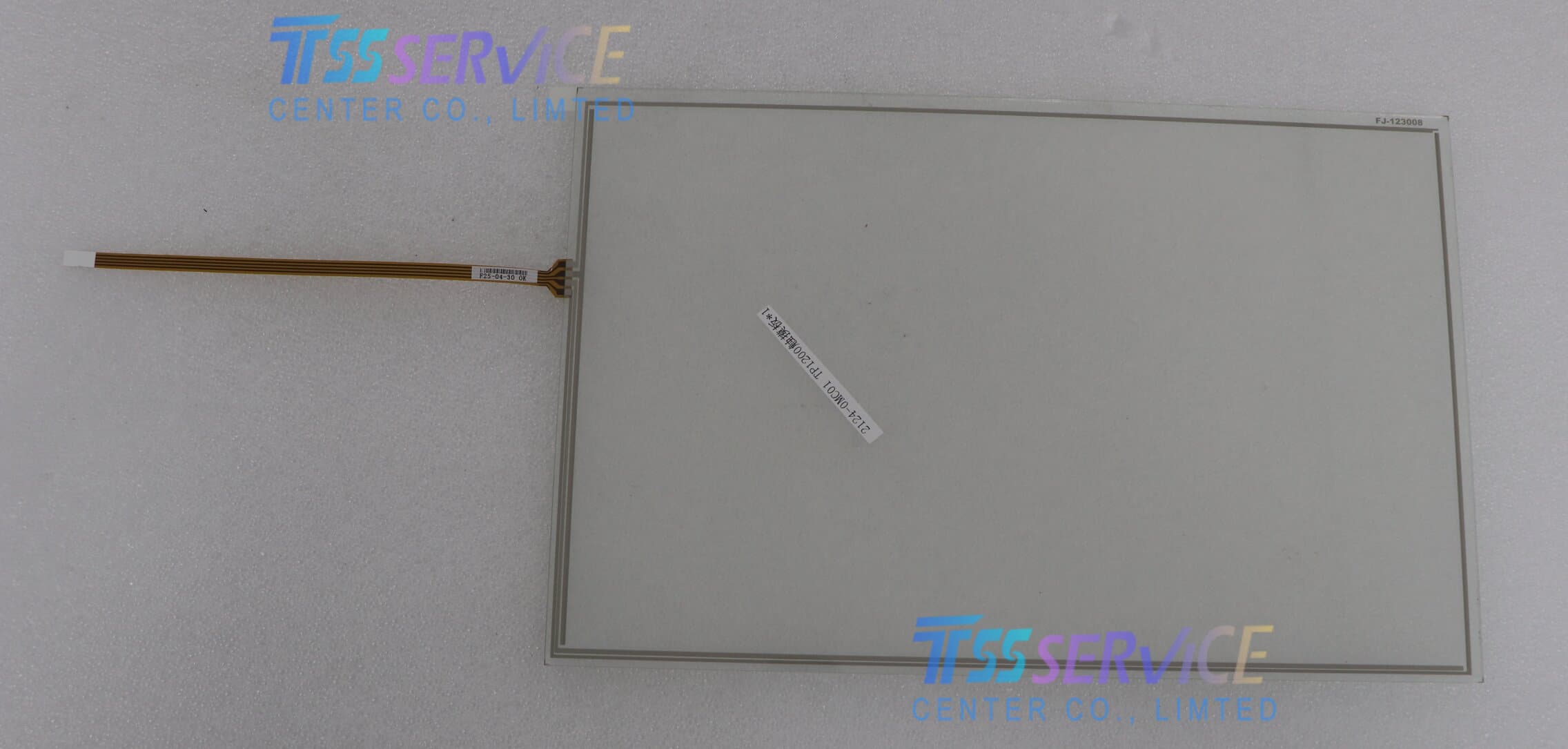

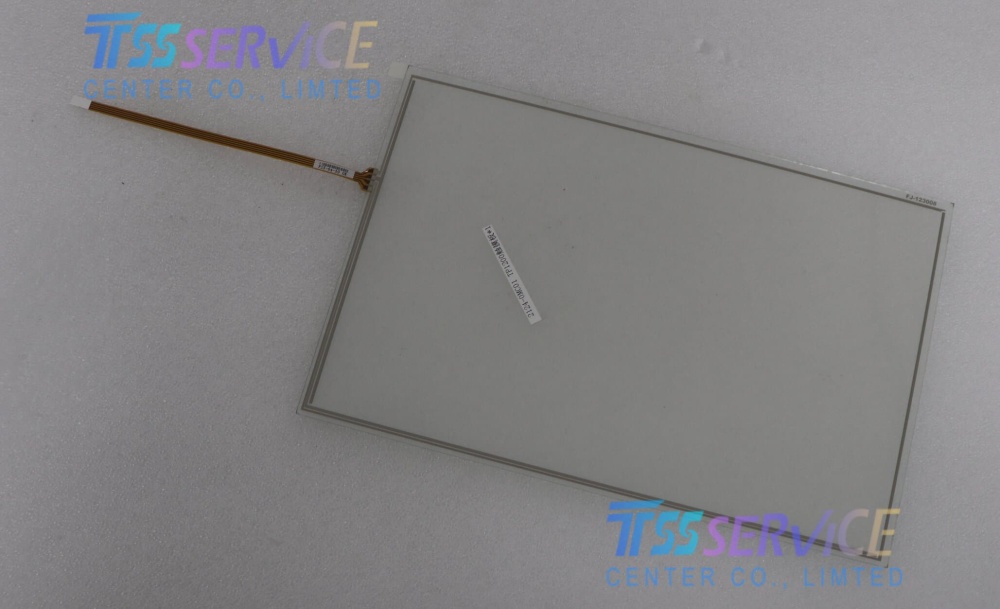

Analog-resistive touch (single-touch) |

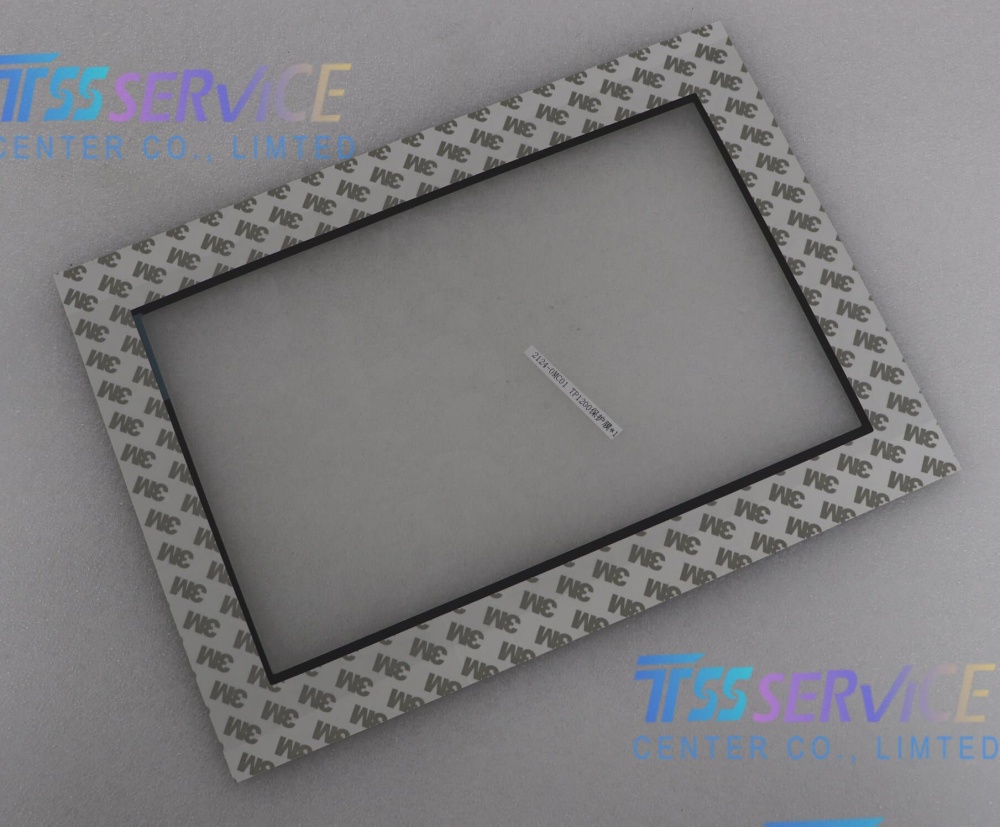

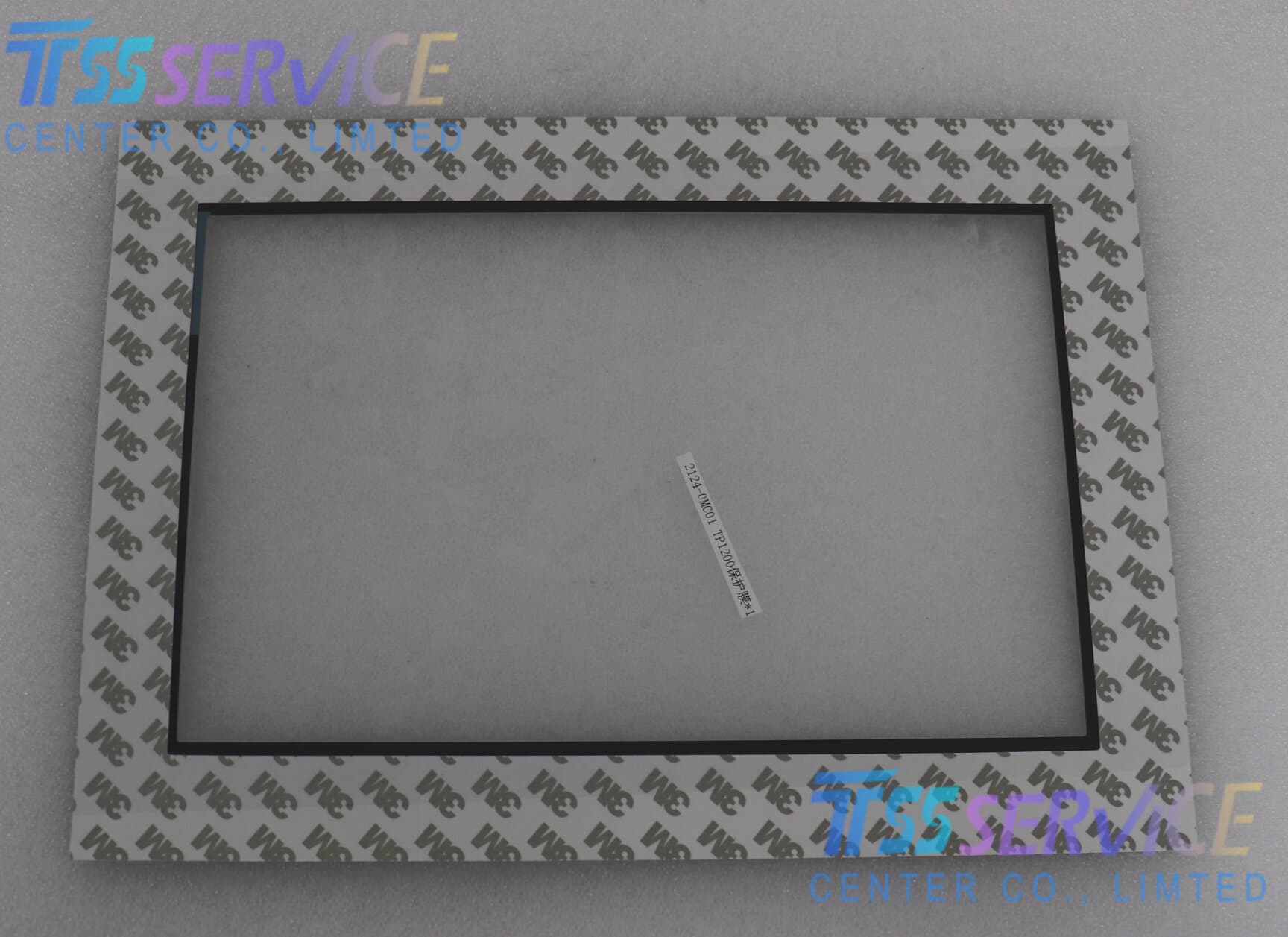

| Front Mask |
Integrated, IP65 rated (front); IP20 (rear) |
| Processor |
X86 CPU |
| Operating System |
Windows CE 6.0 |
| Configuration Memory |
12 MB (flash) |
| Communication Interfaces |
2× PROFINET (10/100/1000 Mbps, integrated switch); 1× MPI/PROFIBUS DP; 3× USB (1× device, 2× host); 1× MMC/SD card slot |
| Supply Voltage |
24 V DC (19.2 V ~ 28.8 V) |
| Power Consumption |
Typ. 20 W; Inrush current 0.5 A²·s |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
–20°C ~ +60°C |
| Module Dimensions |
330 mm (W) × 241 mm (H) × 70.5 mm (D) |
| Cutout Size |
310 mm × 221 mm |
| Weight |
Approx. 3.46 kg |
| Certifications |
CE, cULus, RCM, KC, RoHS compliant |
