Home > Touch Screen > More > 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
1/1
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"

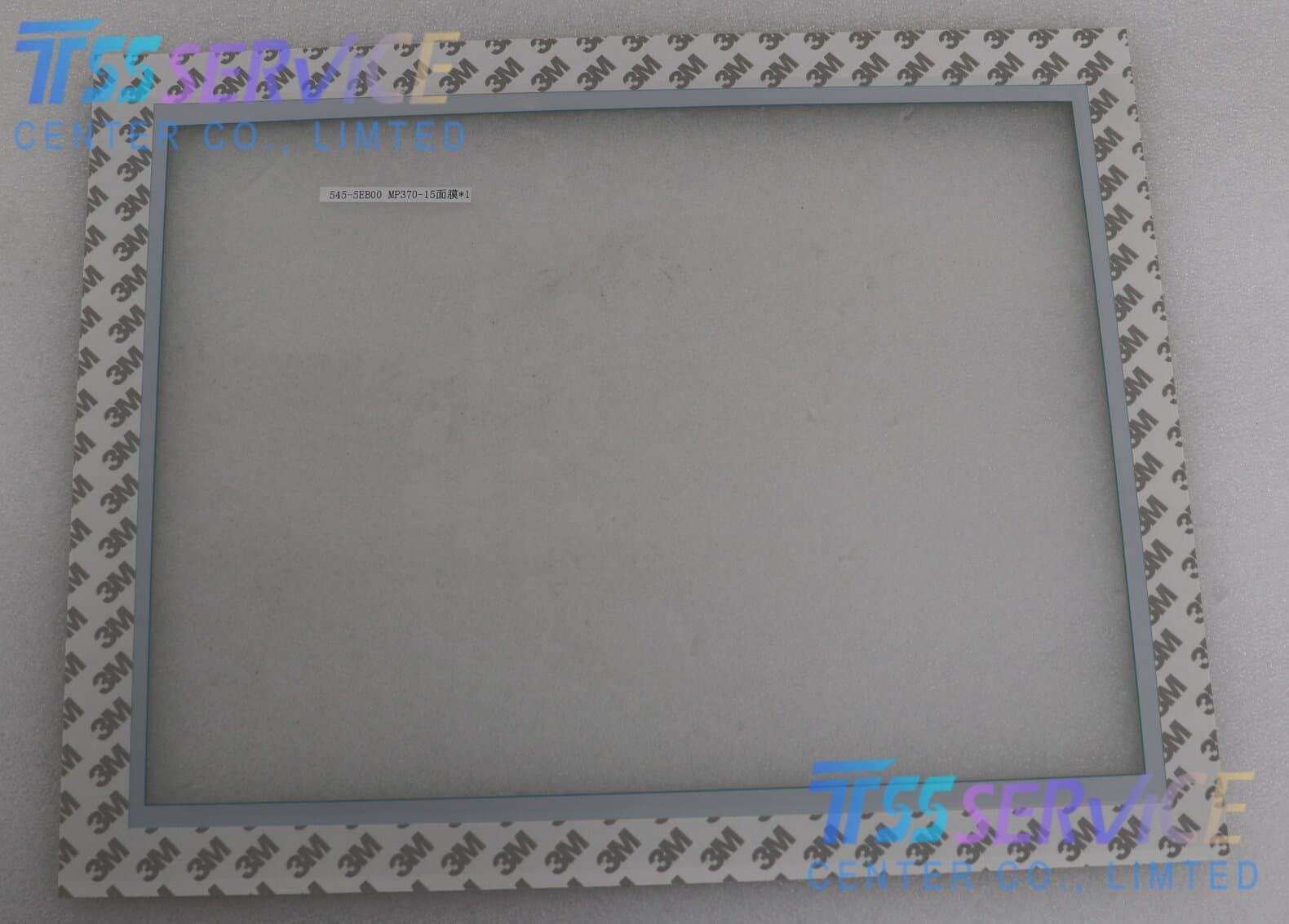

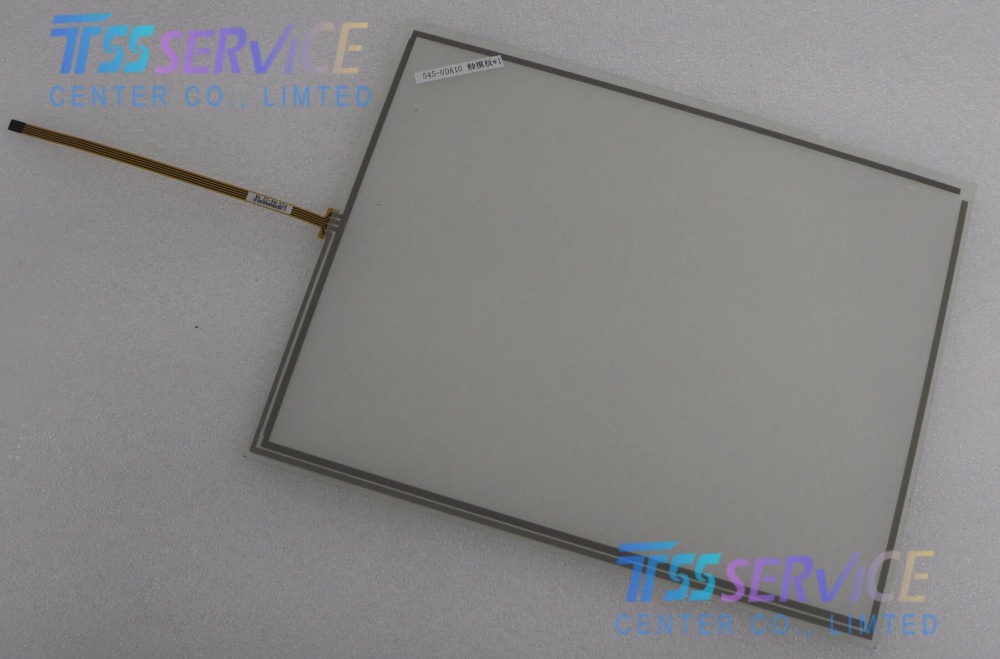

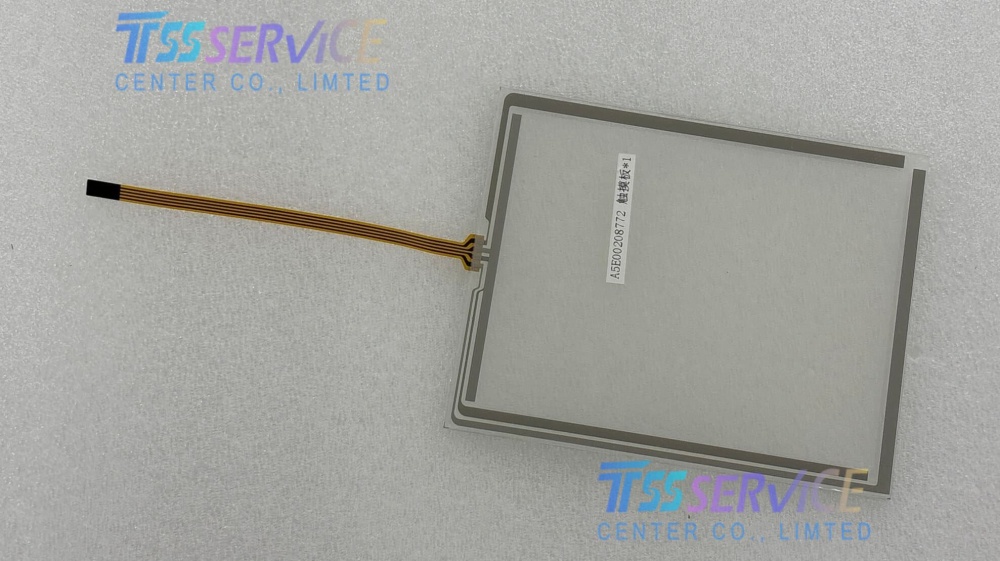

new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"

SKU: 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE

Part no : 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE
Brand :  Siemens
INCH :  15"

0.0 (0 Reviews)
0 Sold
$80.00 $78.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
1/1
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • new 6AV6545-5EB00-0BJ0 TOUCH +MEMBRANE 15"
  • Description

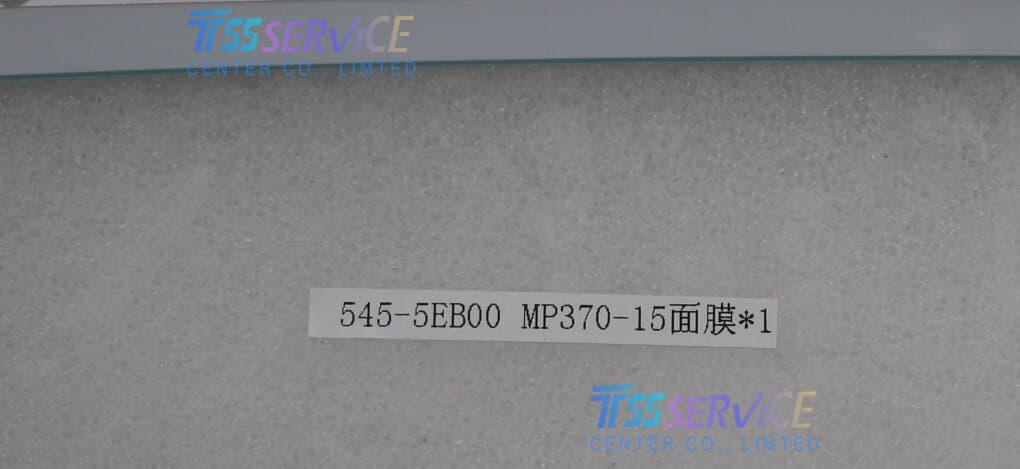

6AV6 545-5EB00-0BJ0

6AV6545-5EB00-0BJ0 is a 15.1‑inch industrial HMI touch panel by Siemens (SIMATIC MP370 series), featuring TFT color display, resistive touch, IP66 front protection, Windows CE 3.0, and multi‑protocol communication for factory automation,

Parameter Details
Model 6AV6545-5EB00-0BJ0 (custom MP370 15" Touch)
Brand Siemens
Series SIMATIC HMI MP370 (Multi Panel)
Display Size 15.1‑inch diagonal TFT
Resolution 1024 × 768 pixels (XGA)
Display Colors 256 colors
Touch Type 4‑wire resistive touch (glove‑compatible)
Operating System Windows CE 3.0
Processor Embedded CE 3.0 CPU
Brightness Typical 400 cd/m²
Backlight CCFL, 50,000 hours MTBF @ 25°C
Contrast Ratio 300:1 (Typ.)
Viewing Angle 70°/70°/60°/60° (L/R/U/D)
Protection Front IP66 (stainless steel)
Operating Temp 0 °C ~ +50 °C
Storage Temp -20 °C ~ +60 °C
Power Supply 24 VDC, 1.8 A (Typ. 12 W)
Communication MPI, PROFIBUS‑DP, Ethernet (10/100 Mbps), RS232/RS485, USB
Mounting Vertical panel mount
Front Dimension 483 × 310 mm
Cutout Size 450 × 290 × 59 mm
Weight Approx. 5.9 kg (13.0 lbs)
Configuration ProTool V6.0+SP2 or WinCC flexible
Status Obsolete / Discontinued
