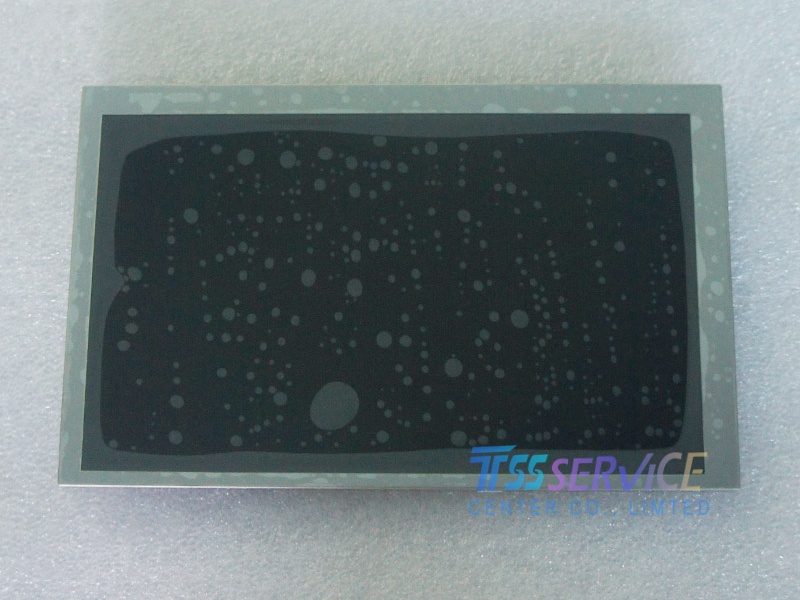

NEW a-Si TFT-LCD LB070WV8 SL02 800×480 LCD Screen for LG LCD Display Screen For Industrial

SKU: LB070WV8 SL02

Part no :  LB070WV8 SL02
Brand :     LG
INCH : 7  Inch

Resolution    800×480

LCD Panel for Industrial Machine

0.0 (0 Reviews)
0 Sold
$123.00 $118.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
1/1
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
  • NEW a-Si TFT-LCD LB070WV8 SL02 800×480  LCD Screen for LG LCD Display Screen For Industrial
  • Description
The LB070WV8-SL02 is a high-performance 7.0-inch TFT LCD display module manufactured by LG Display. It features a WVGA resolution (800x480 pixels) and utilizes an a-Si (amorphous silicon) array structure. Designed for robust operation, this panel typically employs a TN (Twisted Nematic) optical mode with a Normally White transmissive characteristic, making it ideal for applications requiring clear visibility in various lighting conditions. It is driven via a digital interface, commonly LVDS (Low-Voltage Differential Signaling), ensuring stable signal transmission for embedded systems. This module is engineered to be a reliable industrial display, automotive screen, and HMI panel for demanding environments.
(Keywords included: industrial display, automotive screen, HMI panel)

Technical Specifications (Estimated based on LB070WV Series Standards)

表格
Parameter Specification
Model Number LB070WV8-SL02
Manufacturer LG Display
Panel Type a-Si TFT-LCD, Active Matrix
Screen Size 7.0 inches (Diagonal)
Resolution 800 (RGB) × 480 [WVGA]
Pixel Configuration RGB Vertical Stripe
Display Mode TN (Twisted Nematic), Transmissive, Normally White
Surface Treatment Anti-Glare (Haze 25%~30%)
Brightness 350 ~ 400 cd/m² (Typical)
Contrast Ratio 400:1 ~ 500:1 (Typical)
Viewing Angle 65/65/50/60 (Left/Right/Up/Down) min. (CR≥10)
Color Depth 16.7M (8-bit, 262K colors via FRC or native)
Interface LVDS (Low-Voltage Differential Signaling), 1-channel or 2-channel
Backlight WLED (White LED), Edge-lit or Direct-lit depending on revision
Operating Temp. -20°C to +70°C (Standard) / -30°C to +80°C (Wide Temp options)
Dimensions (Approx.) 165.0 (W) × 104.6 (H) × 5.3 (D) mm
Active Area 152.4 (W) × 91.44 (H) mm
Weight Approx. 130g ~ 150g
