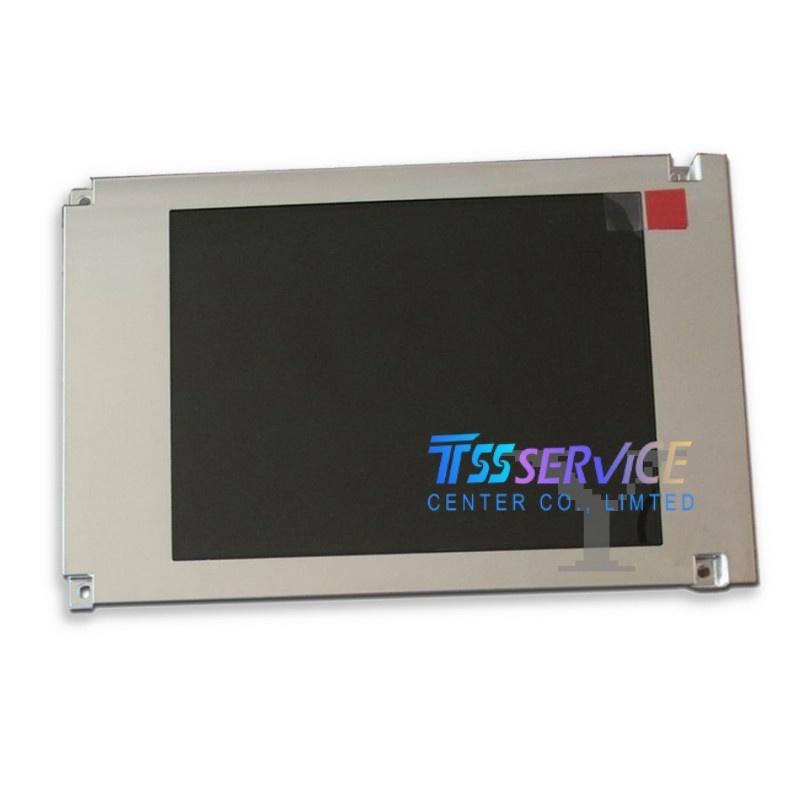

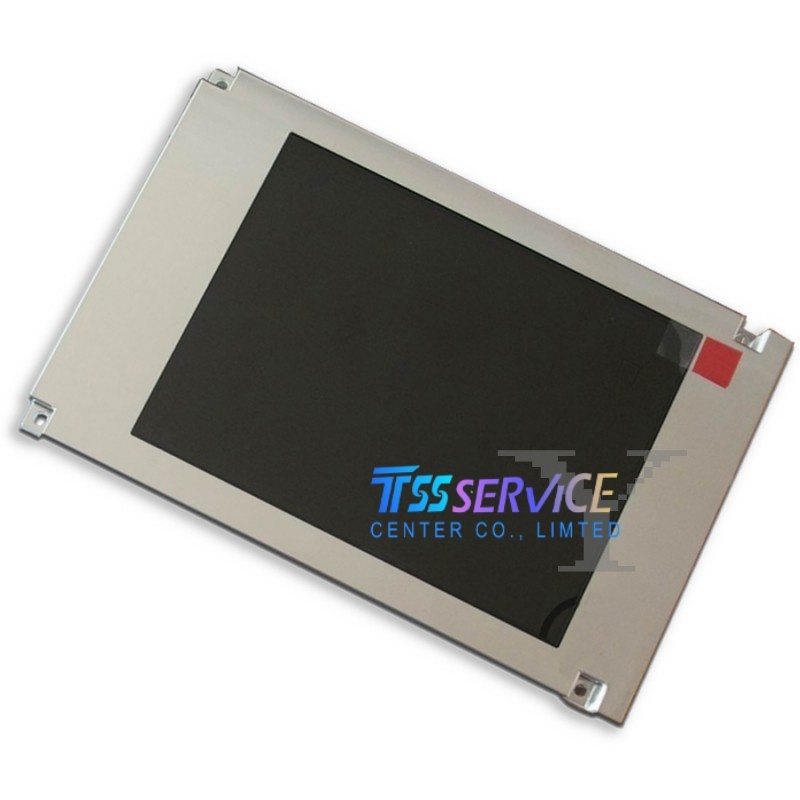

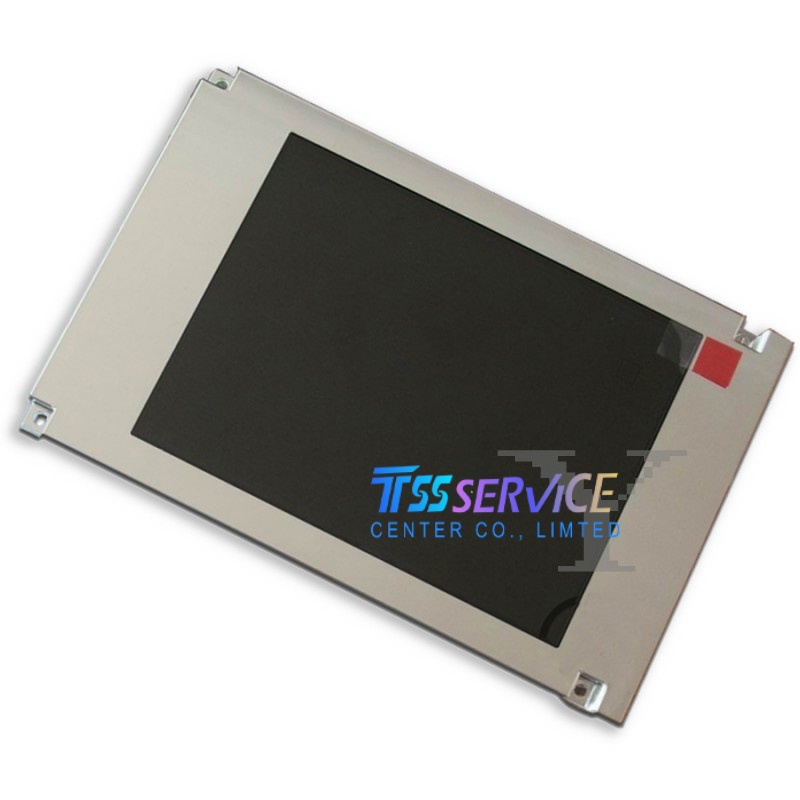

AM-320240N1TMQW-T30H-D (R) | AMPIRE 5.7" QVGA TFT
AM-320240N1TMQW-T30H-D(R) is a 5.7-inch QVGA industrial TFT-LCD module manufactured by AMPIRE (Taiwan). It adopts TN normally white transmissive technology, built-in 4-wire analog resistive touch screen, 400 cd/m² high-bright WLED backlight, single-channel 6-bit parallel RGB TTL 40-pin interface, and ultra-wide industrial temperature range (-20℃ ~ +70℃). The suffix D(R) stands for standard industrial FPC layout with integrated touch circuit. It features metal shielding frame, anti-interference design, long-life LED backlight and glove-operable touch, widely applied to injection molding machinery HMI, construction machinery onboard terminals, medical testing instruments, laboratory measurement equipment and legacy automation screen replacement projects.
| Parameter Item |
Specification Details |
| Full Model No. |
AM-320240N1TMQW-T30H-D(R) |
| Manufacturer |
AMPIRE (晶采，Taiwan) |
| Display Diagonal |
5.7 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
320(H) × 240(V) pixels (QVGA, 70 PPI) |
| Display Technology |
a-Si TFT-LCD, TN, Normally White, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Active Area (AA) |
115.2 mm (W) × 86.4 mm (H) |
| View Area |
118.2 mm (W) × 89.4 mm (H) |
| Overall Outline Dimension |
167 mm (W) × 109 mm (H) × 14.8 mm (Thickness) |
| Typical Brightness |
400 cd/m² |
| Typical Contrast Ratio |
350:1 |
| Viewing Angle (L/R/U/D, CR≥10) |
70° / 70° / 70° / 50°, optimal viewing: 6 o'clock |
| Response Time (Tr / Td) |
15 ms / 35 ms typical |
| Display Color Depth |
262K colors (6-bit single channel), 61% NTSC gamut |
| Backlight System |
3S7P WLED, service life ≥ 50,000 hours, without built-in driver |
| Signal Interface |
Single-channel parallel RGB TTL (6-bit), 40-pin FPC connector |
| Logic Supply Voltage |
3.3 VDC (typical) |
| Refresh Rate |
60 Hz standard |
| Touch Function |
Integrated 4-wire analog resistive touch, support glove operation |
| Surface Treatment |
Matte polarizer, 3H scratch-resistant hard coating |
| Housing Structure |
Metal shielding frame, anti-electromagnetic interference |
| Operating Temperature |
-20°C ~ +70°C |
| Storage & Transport Temp |
-30°C ~ +80°C |
| Net Weight |
Approx. 480 g |
| Compliance Standard |
RoHS compliant industrial grade |
| Production Status |
Mass production industrial module, widely stocked for equipment maintenance replacement |
