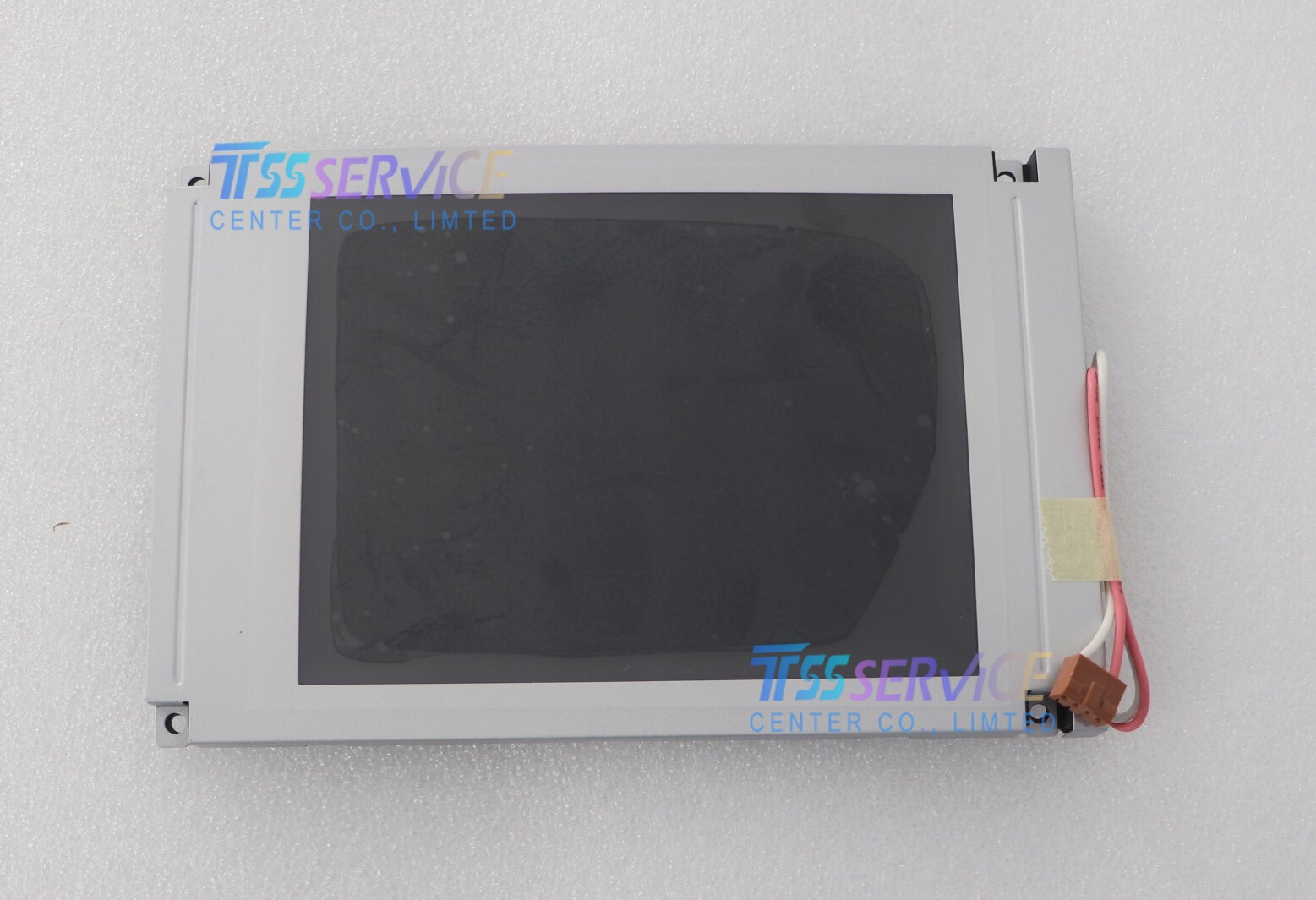

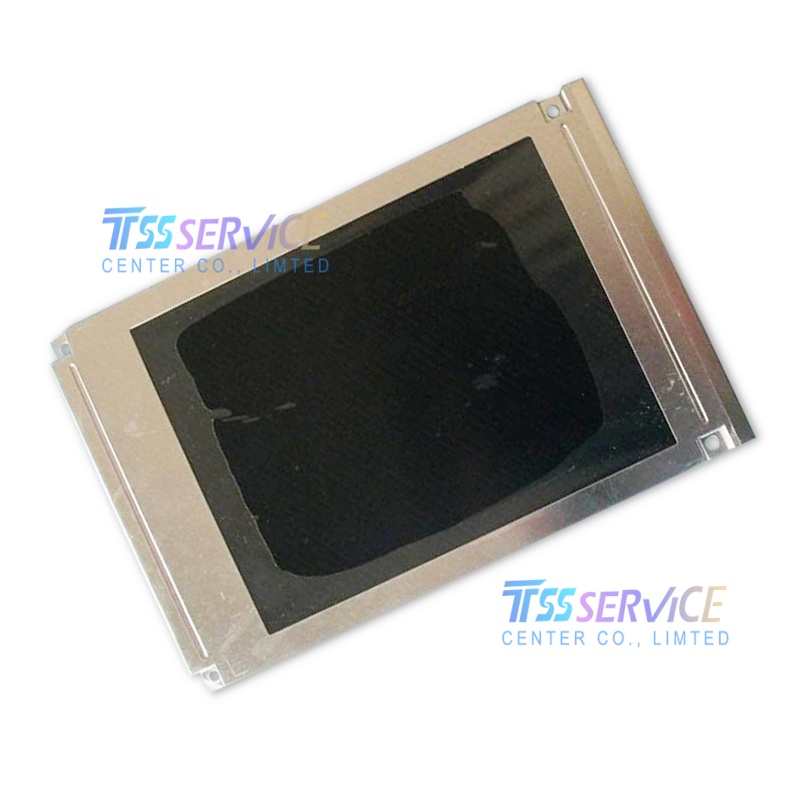

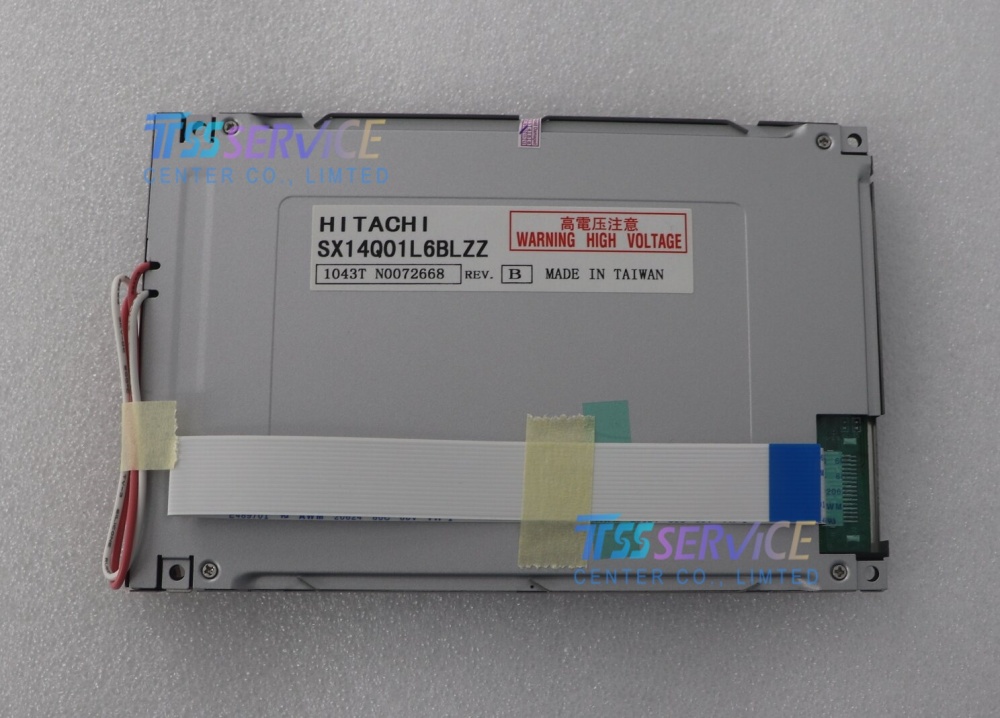

SX14Q01L6BLZZ
SX14Q01L6BLZZ is a
5.7-inch QVGA industrial TFT-LCD module by
Hitachi, featuring
320×240 resolution,
200 cd/m² brightness,
300:1 contrast,
wide viewing angle,
LVDS interface, and
compact rugged design, optimized for
injection molding machines, factory automation HMI, and indoor industrial control panels.
| Parameter |
Details |
| Model |
SX14Q01L6BLZZ |
| Brand |
Hitachi (HITACHI) |
| Display Size |
5.7-inch diagonal TFT-LCD |
| Resolution |
320 × 240 pixels (QVGA, 4:3) |
| Display Mode |
TFT, Normally White, Transmissive |
| Brightness |
200 cd/m² (typ.) |
| Contrast Ratio |
300:1 (typ.) |
| Viewing Angle (CR≥10) |
70°/70°/50°/50° (L/R/U/D) |
| Colors |
262K (6-bit) |
| Backlight |
WLED, 50,000 hrs lifespan @ 25°C |
| Response Time |
30 ms (typ., Tr+Td) |
| Touch Panel |
Without touch (optional resistive) |
| Interface |
LVDS (1-channel, 6-bit, 20-pin) |
| Supply Voltage |
3.3 VDC (logic), 5 VDC (backlight) |
| Power Consumption |
≤ 3.5 W (with backlight) |
| Operating Temperature |
0°C ~ +50°C (industrial grade) |
| Storage Temperature |
-20°C ~ +60°C |
| Humidity |
5%–95% non-condensing |
| Active Area (W×H) |
115.2 × 86.4 mm |
| Module Dimensions (W×H×D) |
167 × 110 × 10 mm |
| Weight |
Approx. 250 g |
| Surface Treatment |
Standard hard coating |
| Certifications |
RoHS compliant |
