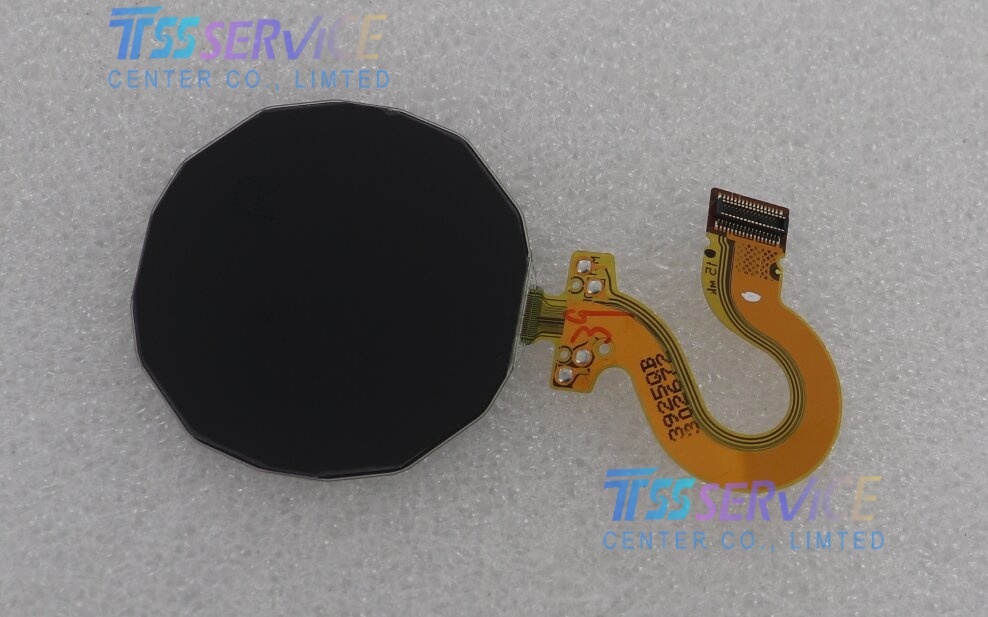

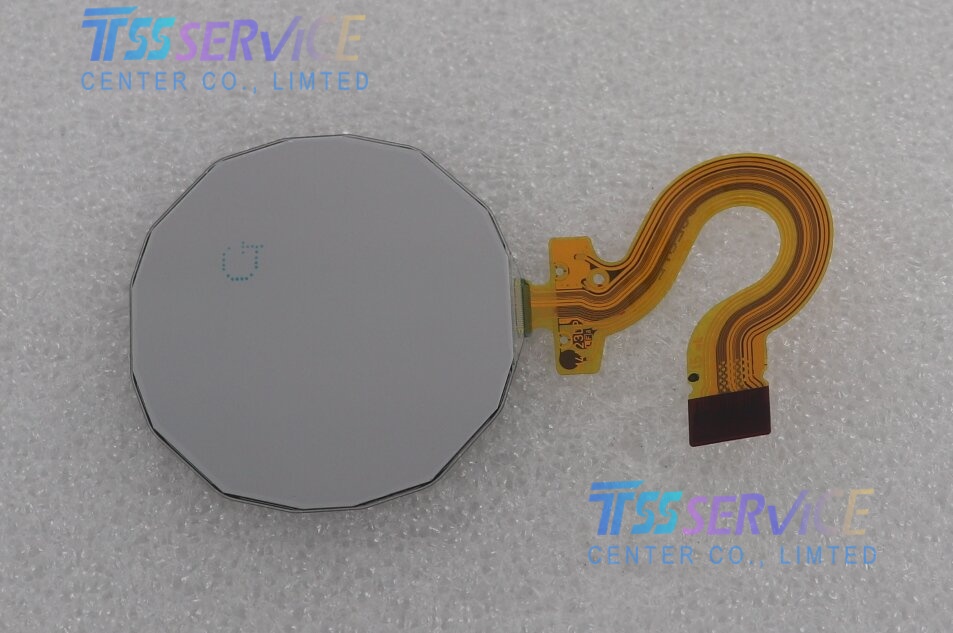

Part no : LS013B7DH10
Brand : Kyocera
INCH :1.26 INCH
Resolution 240 x 240 pixels
LCD Panel for Industrial Machine
| Parameter | Value |
|---|---|
| Model | LS013B7DH10 |
| Manufacturer | SHARP |
| Display Size | 1.3 inch |
| Resolution | 240 x 240 pixels |
| Display Type | Color TFT-LCD |
| Display Technology | IPS (In-Plane Switching) |
| Pixel Arrangement | RGB Matrix |
| Number of Colors | 65K colors |
| Brightness | 80 cd/m² (typical) |
| Contrast Ratio | 500:1 (typical) |
| Viewing Angle | 80°/80°/80°/80° (up/down/left/right) |
| Interface Type | SPI, I2C (refer to datasheet for configuration) |
| Supply Voltage | 2.8V (logic), 1.8V (driver) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Dimensions | 14.5 mm x 15.7 mm x 1.1 mm |
| Weight | 0.7 g |
| Backlight | Not specified (likely with backlight, based on color TFT type) |
| Application | Smartwatches, wearable health monitors, IoT devices |
