Product Description

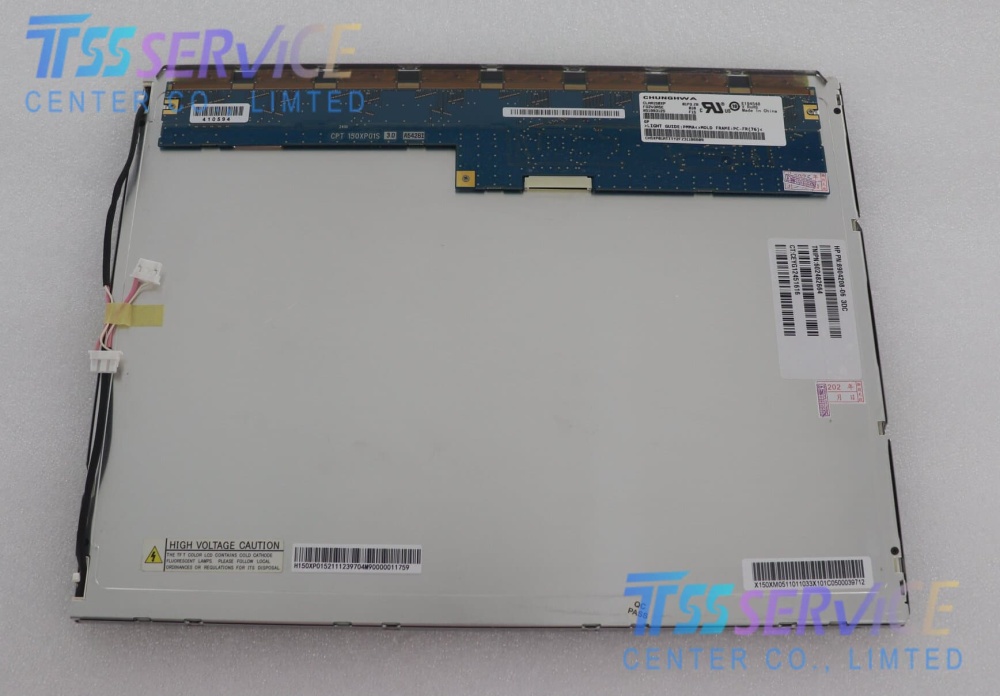

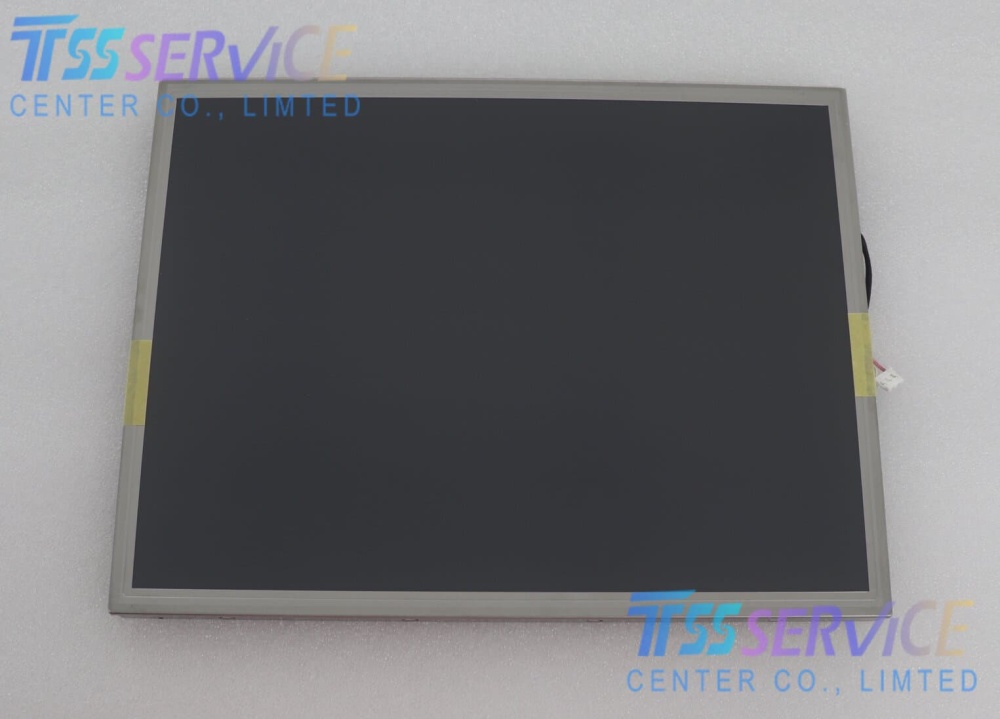

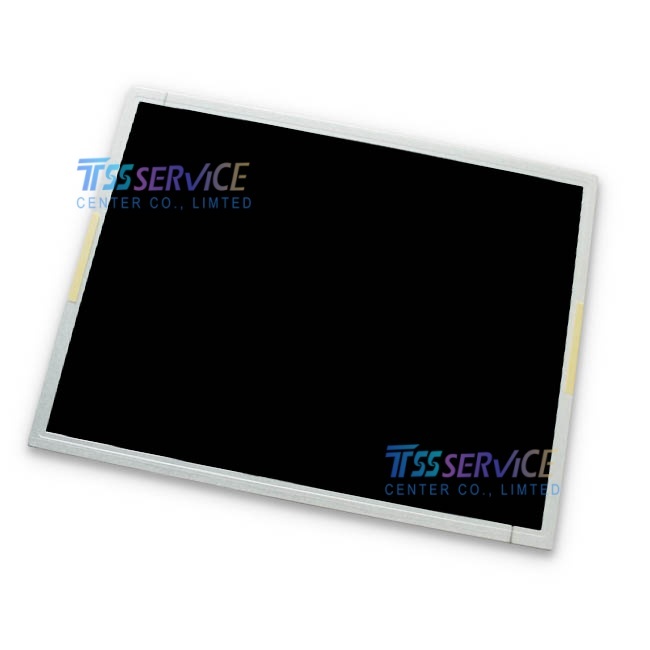

The CLAA150XP01P is a high-performance 15.0-inch TFT LCD display module designed for industrial and medical applications. Featuring a robust LVDS interface and a high-resolution XGA (1024x768) panel, this screen delivers exceptional image clarity and stability. It serves as a reliable replacement for legacy systems requiring a durable industrial LCD screen with wide operating temperature capabilities.
Technical Specifications
| Parameter |
Specification |
| Model Number |
CLAA150XP01P |
| Panel Size |
15.0 inch |
| Display Type |
TFT LCD, XGA |
| Resolution |
1024 (RGB) × 768 pixels |
| Interface |
LVDS (Low-Voltage Differential Signaling) |
| Backlight |
CCFL (Cold Cathode Fluorescent Lamp) |
| Brightness |
Typically 450 cd/m² (nits) |
| Contrast Ratio |
700:1 (Typical) |
| Pixel Pitch |
0.297 mm × 0.297 mm |
| Operating Temp |
-20°C to +70°C |
| Storage Temp |
-30°C to +80°C |
| Weight |
Approx. 1.15 kg |
