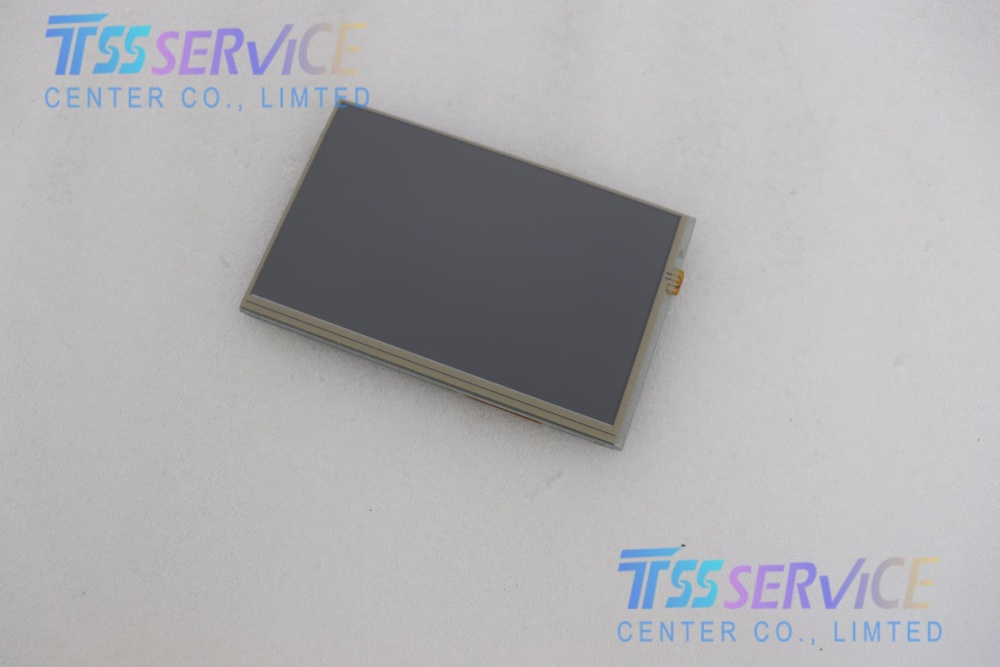

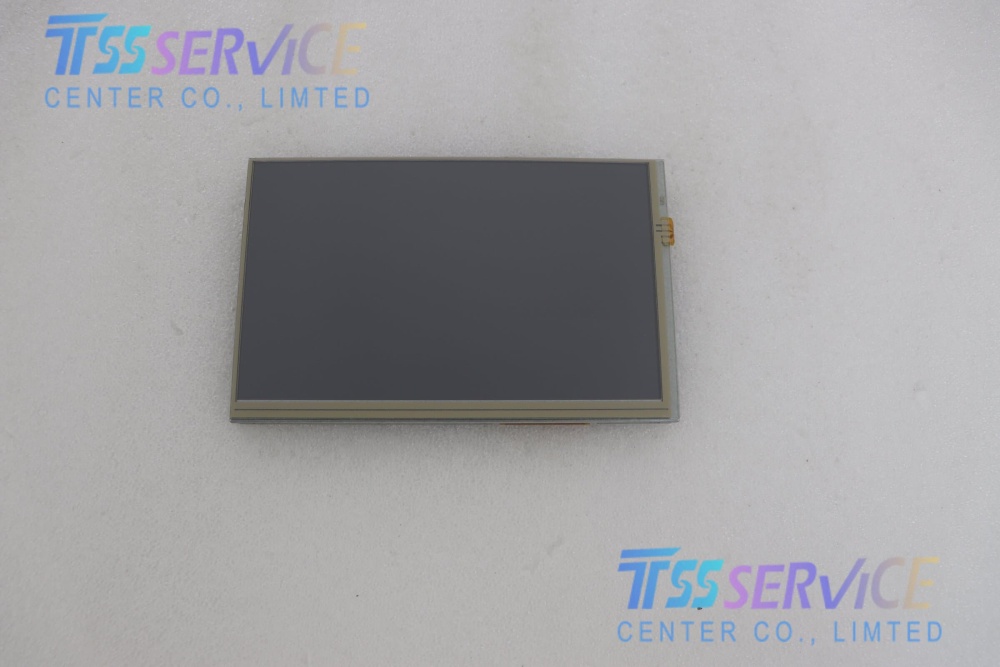

AM800480RJTMQWB0H（10.4" WVGA Industrial TFT-LCD Module with Resistive Touch）
AM800480RJTMQWB0H is a 10.4-inch WVGA industrial-grade a-Si TFT-LCD integrated with built-in 4-wire resistive touch panel, original Ampire industrial display solution with WLED backlight, wide temperature tolerance, stable anti-vibration performance, optimized for industrial HMI replacement, CNC controller, medical instrument and industrial control terminal renovation。
| Parameter Item |
Spec Value |
| Part Number |
AM800480RJTMQWB0H |
| Diagonal Size |
10.4 inch, 16:9 WVGA |
| Native Resolution |
800(RGB)×480 dots |
| Display Type |
TN Transmissive a-Si TFT-LCD |
| Active View Area |
211.2(W)×126.7(H) mm |
| Overall Outline Dimension |
228.5(W)×143.2(H)×8.8 mm |
| Built-in Touch |
4-Wire Analog Resistive Touch Screen |
| Typical Brightness |
450 cd/m² |
| Contrast Ratio |
500:1(Typ.) |
| Viewing Angle(L/R/U/D) |
75°/75°/60°/60°(CR≥10) |
| Backlight |
Long-life WLED, non-inverter built-in |
| Signal Interface |
Parallel RGB TTL, 40Pin standard connector |
| Operating Temperature |
-20℃ ~ +70℃ |
| Storage Temperature |
-30℃ ~ +80℃ |
| Touch Operation Pressure |
20~90g, support glove touch |
| Display Color Depth |
262K Colors (6-bit RGB) |
| Certification |
RoHS Compliant |
| Application Attribute |
Industrial dedicated replacement LCD |
