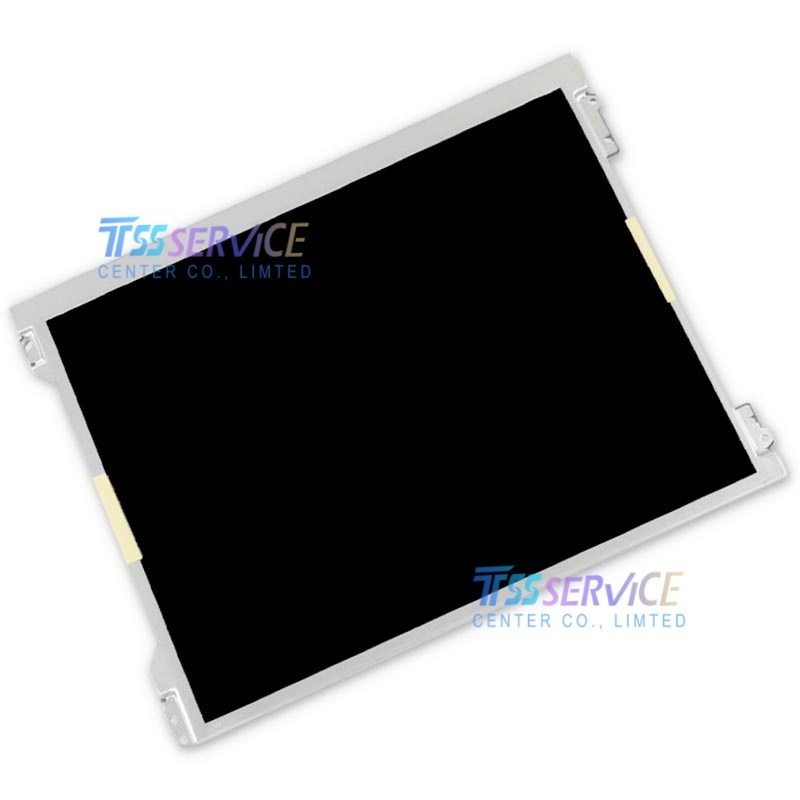

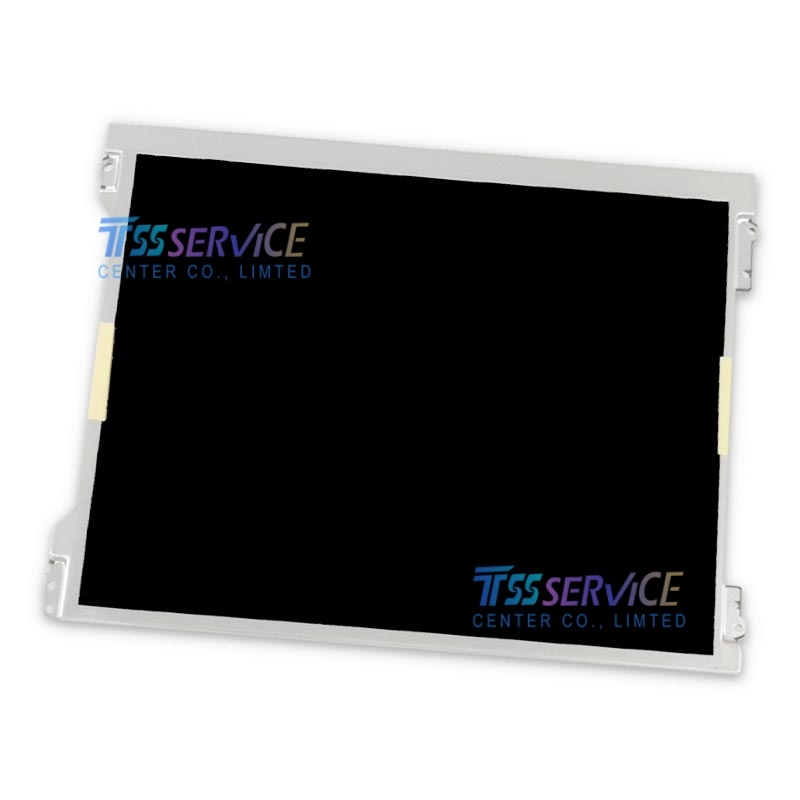

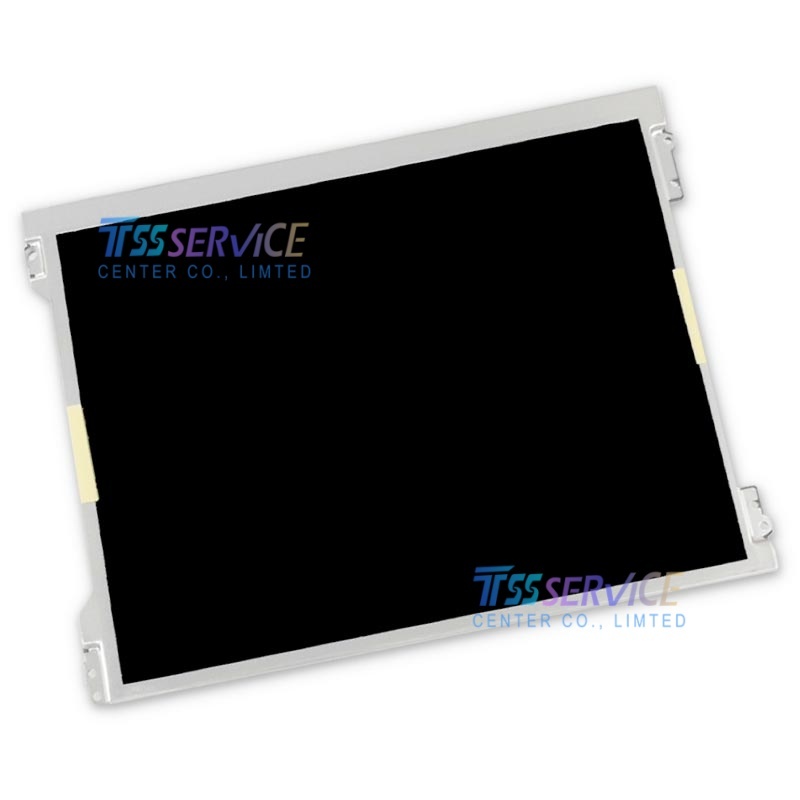

G121XN01 V000 | AUO 12.1" XGA Ultra-Wide Temp High-Bright Industrial TFT-LCD Panel
G121XN01 V000 (also marked G121XN01 V0) is AU Optronics premium 12.1-inch XGA industrial TFT panel with ultra-wide temperature range -30℃~+85℃, 500 cd/m² high brightness, built-in WLED driver, single-channel 6/8-bit selectable LVDS 20-pin interface, full symmetrical 80° four-side viewing angle and matte 3H anti-glare hard coating. It adopts RGBW pixel structure, replaceable LED backlight and reinforced metal frame with 1.5G anti-vibration capability, without integrated touch screen and compatible with external resistive/capacitive touch overlay. This rugged industrial panel is widely applied for heavy-duty industrial HMI, construction & agricultural machinery on-board terminals, outdoor monitoring equipment, medical diagnostic instruments, power automation control consoles and legacy screen replacement projects.
| Parameter Item |
Specification Details |
| Full Part Number |
G121XN01 V000 (Alias: G121XN01 V0) |
| Manufacturer |
AU Optronics (友达光电，Taiwan) |
| Diagonal Size |
12.1 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
1024(H) × 768(V) pixels (XGA, 105 PPI) |
| Display Technology |
a-Si TFT-LCD, TN mode, Normally White, Transmissive |
| Pixel Arrangement |
RGBW rectangular pixel structure |
| Pixel Pitch |
0.3075 mm (H) × 0.3075 mm (V) |
| Active Area (AA) |
245.76 mm (W) × 184.32 mm (H) |
| Overall Outline Dimension |
279.0 mm (W) × 209.0 mm (H) × 9.0 mm (Max Thickness) |
| Typical Brightness |
500 cd/m² (semi-sunlight readable) |
| Typical Contrast Ratio |
700:1 |
| Viewing Angle (L/R/U/D, CR≥10) |
80° / 80° / 80° / 80°, full symmetrical wide viewing angle |
| Response Time (Tr / Td Typical) |
10 ms / 25 ms |
| Display Color Depth |
262K (6-bit) / 16.2M (6-bit+FRC 8-bit simulation), 71% NTSC gamut, 93% sRGB coverage |
| Backlight System |
Edge-lit WLED, integrated onboard LED driver, service life ≥ 50,000 hours, replaceable backlight unit |
| Signal Interface |
Single-channel LVDS, support 6-bit & 8-bit, 20-pin FPC connector, 180° signal reverse supported |
| Logic Supply Voltage |
3.3 VDC (Typical) |
| Refresh Rate |
60 Hz standard |
| Touch Function |
No integrated touch panel (external resistive/capacitive touch overlay customizable) |
| Surface Treatment |
Matte anti-glare polarizer, 3H scratch-resistant hard coating |
| Vibration Resistance |
1.5G industrial anti-vibration standard |
| Operating Temperature |
-30°C ~ +85°C ultra-wide extreme temperature tolerance |
| Storage & Transport Temp |
-30°C ~ +85°C |
| Net Weight |
Max 495 g lightweight industrial frame |
| Compliance Standard |
RoHS lead-free compliant |
| Production Status |
Mass production stable industrial panel, sufficient stock for new projects & maintenance replacement |
| Version Note |
V000 is the original baseline official version, fully interchangeable with V001 upgraded variant with same mechanical & electrical pinout |
