NS12-TS01B-V2 | Omron
Short English Description
NS12-TS01B-V2 is a 12.1-inch SVGA industrial programmable touch HMI terminal from Omron NS-V2 series, equipped with analog resistive touch panel, LED backlight TFT color LCD, built-in 60MB storage, rich communication ports including Ethernet, RS232/485, dual USB interfaces. The front panel reaches IP65 dustproof & waterproof grade, supports glove touch operation, multi-language display, real-time trend curve, recipe management and fault alarm logging. Perfectly compatible with Omron SYSMAC PLC and mainstream third-party controllers, widely applied in injection molding machinery, packaging equipment, pharmaceutical production lines, CNC machine tools, logistics automation and legacy industrial equipment screen replacement. This model has been discontinued original production with sufficient surplus stock for maintenance retrofit projects.
Specification Parameter Table
| Parameter Item |
Specification Details |
| Full Model Number |
NS12-TS01B-V2 |
| Manufacturer |
Omron (Japan) |
| Screen Size |
12.1 inch landscape, 4:3 ratio |
| Display Type |
TFT Color LCD, LED backlight |
| Native Resolution |
800(H) × 600(V) SVGA |
| Color Performance |
256 display colors; 32768 colors for BMP/JPG pictures |
| Typical Brightness |
450 cd/m², clear view under factory ambient light |
| Touch Panel |

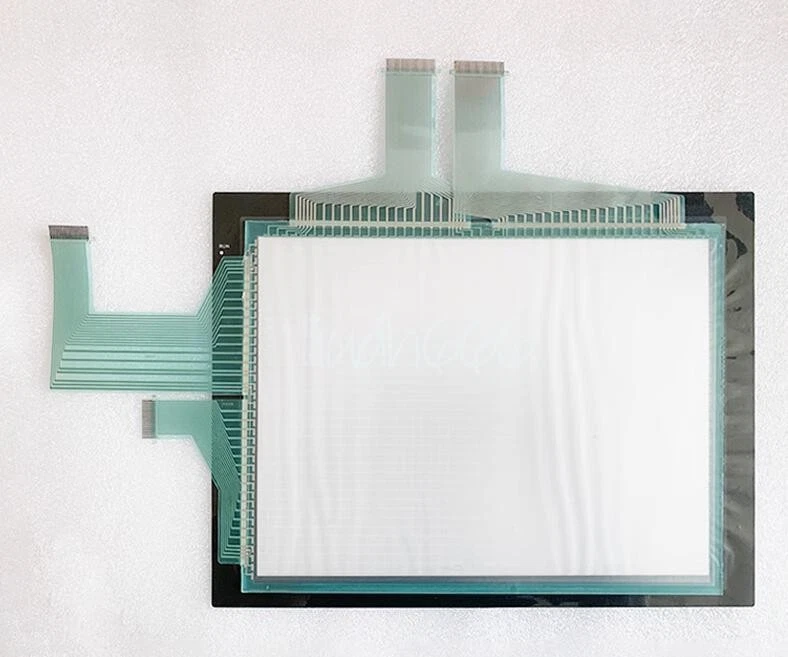

Analog 4-wire resistive touch, support glove operation |
| Front Protection Grade |
IP65 / NEMA Type 4 (after standard panel mounting) |
| Built-in Storage |
60 MB flash memory for screen project, recipes & data log |
| Communication Interfaces |
1×10/100M Ethernet
1×RS-232C
1×RS-422A/485
1×USB Host
1×USB Slave |
| Power Supply |
DC 24V (allowable range: 20.4~27.6V) |
| Rated Power Consumption |
Max 25W |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
-20°C ~ +60°C |
| Mounting Method |
Cabinet panel embedded mounting |
| Overall Weight |
Approx. 2.7kg |
| Supported Languages |
42 screen languages + 8 system languages |
| Core Functions |
Real-time trend chart, batch recipe storage, fault alarm record, data logging, multi-level user authority management |
| Certifications |
CE, UL, cUL industrial safety certification |
| Production Status |
Discontinued, only stock available for maintenance replacement |
