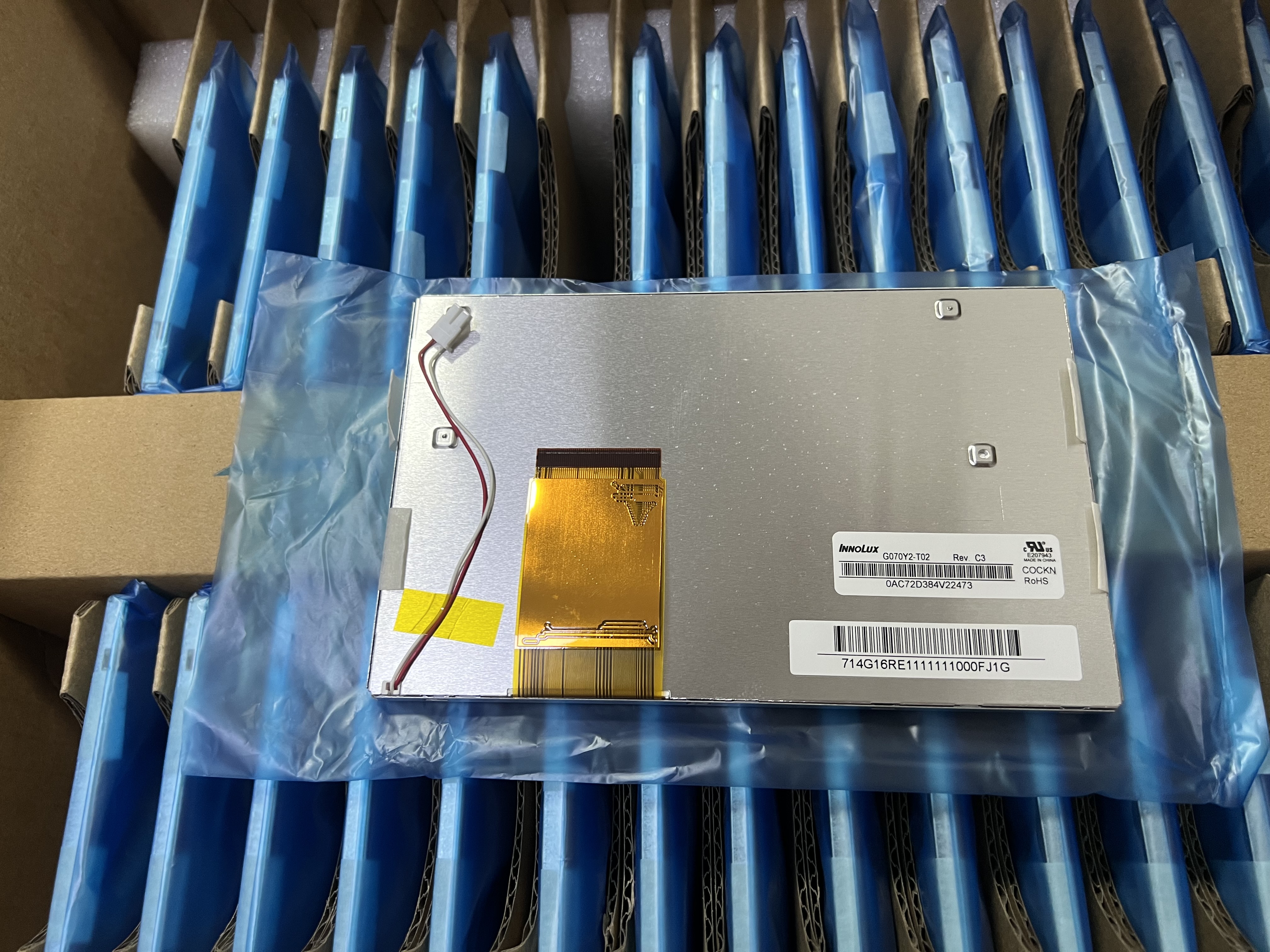

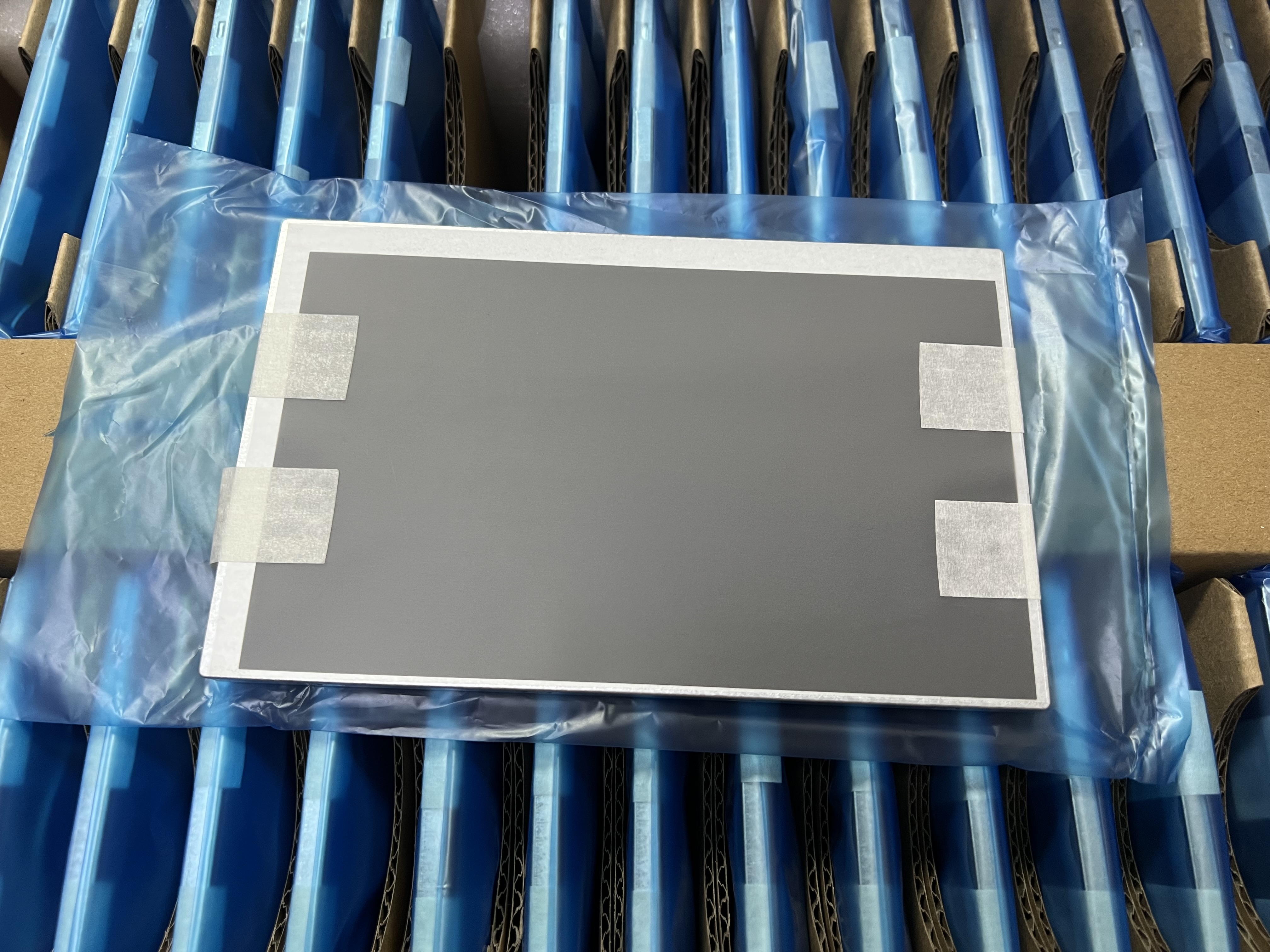

Part no : G070Y2-T02 c2
Brand : Innolux
INCH :7 INCH
Resolution 800×480
LCD Panel for Industrial Machine
| Parameter | Specification | Details |
|---|---|---|
| Model Number | G070Y2-T02 | Innolux / Chi Mei |
| Panel Size | 7.0 inch | Diagonal |
| Resolution | 800 (RGB) × 480 | WVGA |
| Display Mode | TN (Twisted Nematic) | Transmissive, Normally White |
| Interface Type | TTL | Single channel TTL (RGB interface) |
| Brightness | High Brightness | Typically ≥ 500 cd/m² (Exact value depends on specific batch, often 500-800 nits for industrial versions) |
| Contrast Ratio | ~600:1 | Typical |
| Viewing Angle | 70/70/60/60 (L/R/U/D) | CR ≥ 10 |
| Operating Temp. | -30°C to +85°C | Extended wide temperature range |
| Storage Temp. | -40°C to +95°C | Extended storage range |
| Anti-Vibration | 3.0G | Enhanced mechanical stability |
| Backlight | WLED (White LED) | Long lifespan (>50,000 hours) |
| Color Depth | 6-bit / 8-bit | Configurable via interface |
| Application Grade | Industrial / Automotive | Designed for rugged environments |
