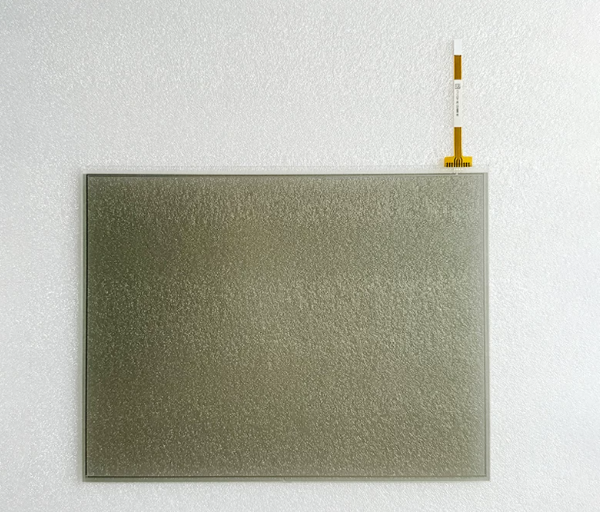

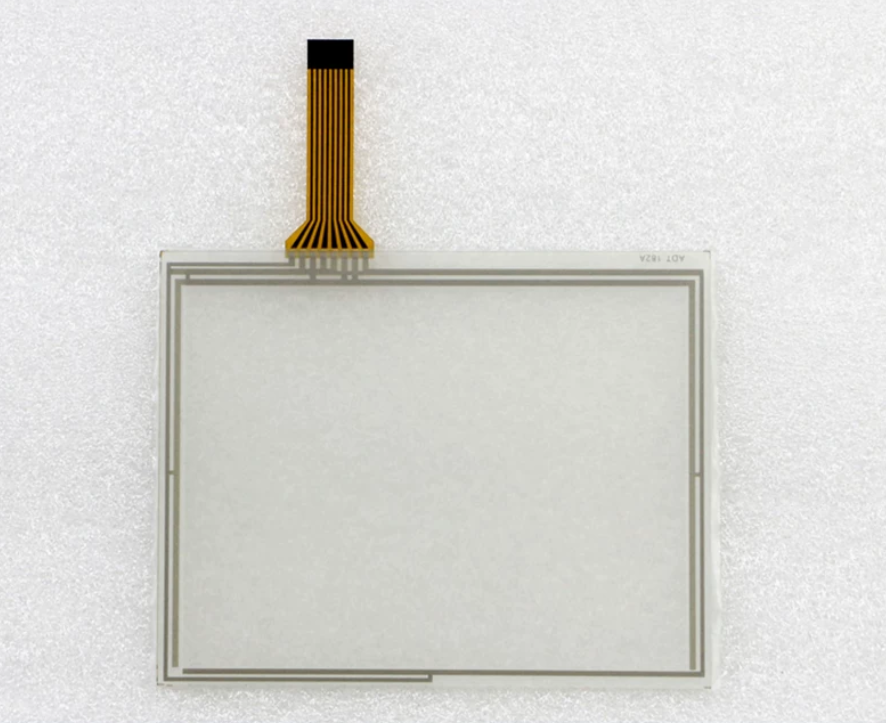

KTP121AEAC-G20 (12.1" 4-Wire Resistive Touch Screen)
KTP121AEAC-G20 is a 12.1-inch wide-format 4-wire analog resistive touch panel, customized replacement touch layer for Siemens KTP1200 Basic series HMI, PET+glass double-layer construction, glove operable, anti-abrasion surface coating, stable touch performance under dust, oil and vibration industrial environment, widely used for original HMI screen repair & refurbishment.
Specification Parameter Table
| Parameter Item |
Specification |
| Part No. |
KTP121AEAC-G20 |
| Screen Size |
12.1 inch, 16:10 Wide Screen |
| Matched LCD Resolution |
1280×800 |
| Touch Type |
4-Wire Analog Resistive Touch |
| Structure |
Bottom Glass + Top PET Film |
| Active Touch Area |
262.2mm(W) ×164.1mm(H) |
| Overall Outline Size |
279.5mm(W) ×181.3mm(H) |
| FPC Connector |
Single tail FPC golden finger cable |
| Surface Hardness |
3H scratch-resistant hard coating |
| Trigger Operation Pressure |
25~90g, support latex/industrial glove tapping |
| Operating Temperature |
-10℃ ~ +60℃ |
| Storage Temperature |
-25℃ ~ +70℃ |
| Single-point Service Life |
≥1,000,000 taps |
| Driver Signal |
Analog resistance signal, compatible universal resistive touch controller IC |
| Certification |
RoHS compliant |
| Matched Device |
Siemens KTP1200 Basic PN/DP HMI series |
