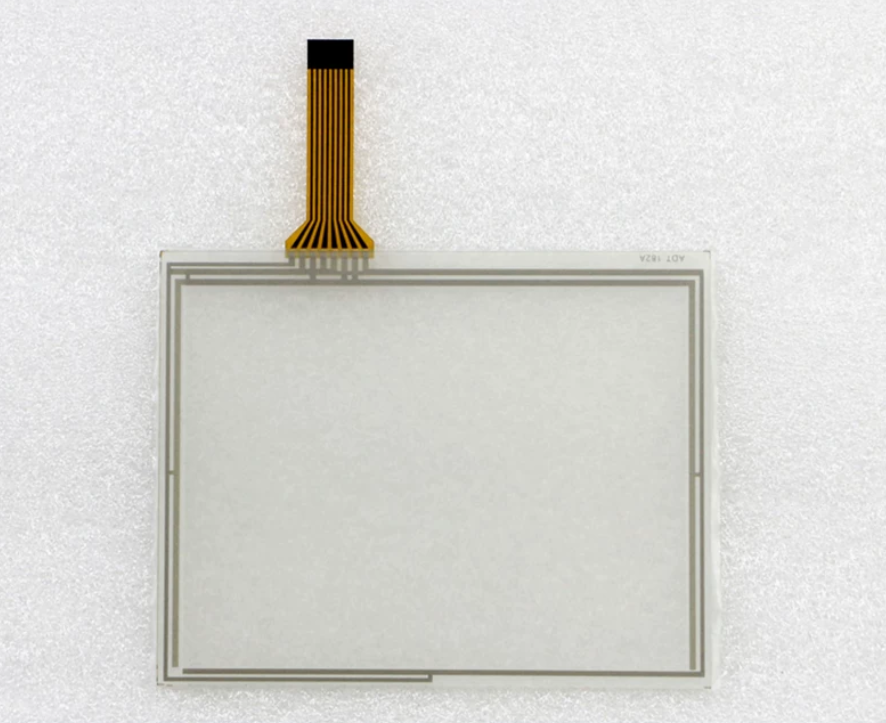

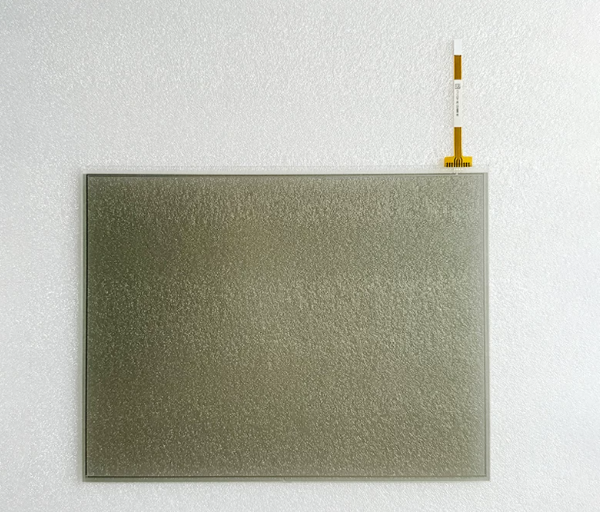

KTP121CGAH-C00（12.1" 4-Wire Resistive Touch Panel）
KTP121CGAH-C00 is a 12.1-inch 4-wire analog resistive touch screen matching standard 4:3 1024×768 industrial TFT LCD, built with durable glass+film structure, glove-operable touch function, anti-scratch surface, widely used as replacement touch component for industrial HMI, CNC equipment, medical display and self-service terminal screens。
| Parameter Item |
Spec Details |
| Part Number |
KTP121CGAH-C00 |
| Diagonal Size |
12.1 inch, 4:3 Aspect Ratio |
| Matching LCD Resolution |
1024×768(XGA) |
| Touch Type |
4-Wire Analog Resistive Touch Screen |
| Structure |
Glass+PET Film Double Layer |
| Active Touch Area |
246.2(W)×184.6(H) mm |
| Overall Outline Dimension |
263.5(W)×201.8(H) mm |
| FPC Cable |
Single side golden finger FPC, single tail outlet |
| Surface Hardness |
3H Anti-scratch Hard Coating |
| Operation Pressure |
20~80g trigger pressure, support glove touch |
| Operating Temperature |
-10℃ ~ +60℃ |
| Storage Temperature |
-25℃ ~ +70℃ |
| Touch Lifespan |
≥1,000,000 single-point taps |
| Driver Interface |
Analog resistance signal, compatible with common resistive touch controller IC |
| Net Weight |
Approx.150g |
| Compliance |
RoHS environmental certification |
☛Shipment:
About the International Shipping:
The products depending on the item's customs value,will be subject to the customs processing.
As the buyer, you should be aware of:
★the delays from the customs inspection.
★the import duties and taxes which buyers must pay.
★The import duties and taxes are not included in the items fix price or shipping cost Cause these charges are the buyers' responsibility directly.
We will ship By DHL/ Fedex/ 4PX express/ SF express
L/T:3-4 working days
☛Delivery Details:
We will arrange the shipment within 1-3 working days asap after got your payment. And the tracking number and commercial inovice will be given to the customers asap. (only the standard speedpak or expedited shipping service). Expedited Shipping by DHL/FEDEX/4PX express Courier etc. But sometimes it is highly depended on buyer's payment, the courier company and local customs/duties.
✔☛Shipment detail:
box, including the seller's handling time, the buyers'destination ZIP Code, the time of the orders acceptance, shipping service selected and also the exact receipt of the cleared payment.
So the delivery times may be vary, especially during the shipping high peak periods.
Hope you understand, thanks!
☛Return Policy:
After received the items and in the event of an issue arising,please send us messages ASAP (Warranty 90 days ）
Whether the money back or replacement (at buyer's choice)
Please provide the detailed explanation, photos or videos needed when send us messages.
Unwanted product returns: The merchandise must be in the new, unused, uninstalled condition only.
