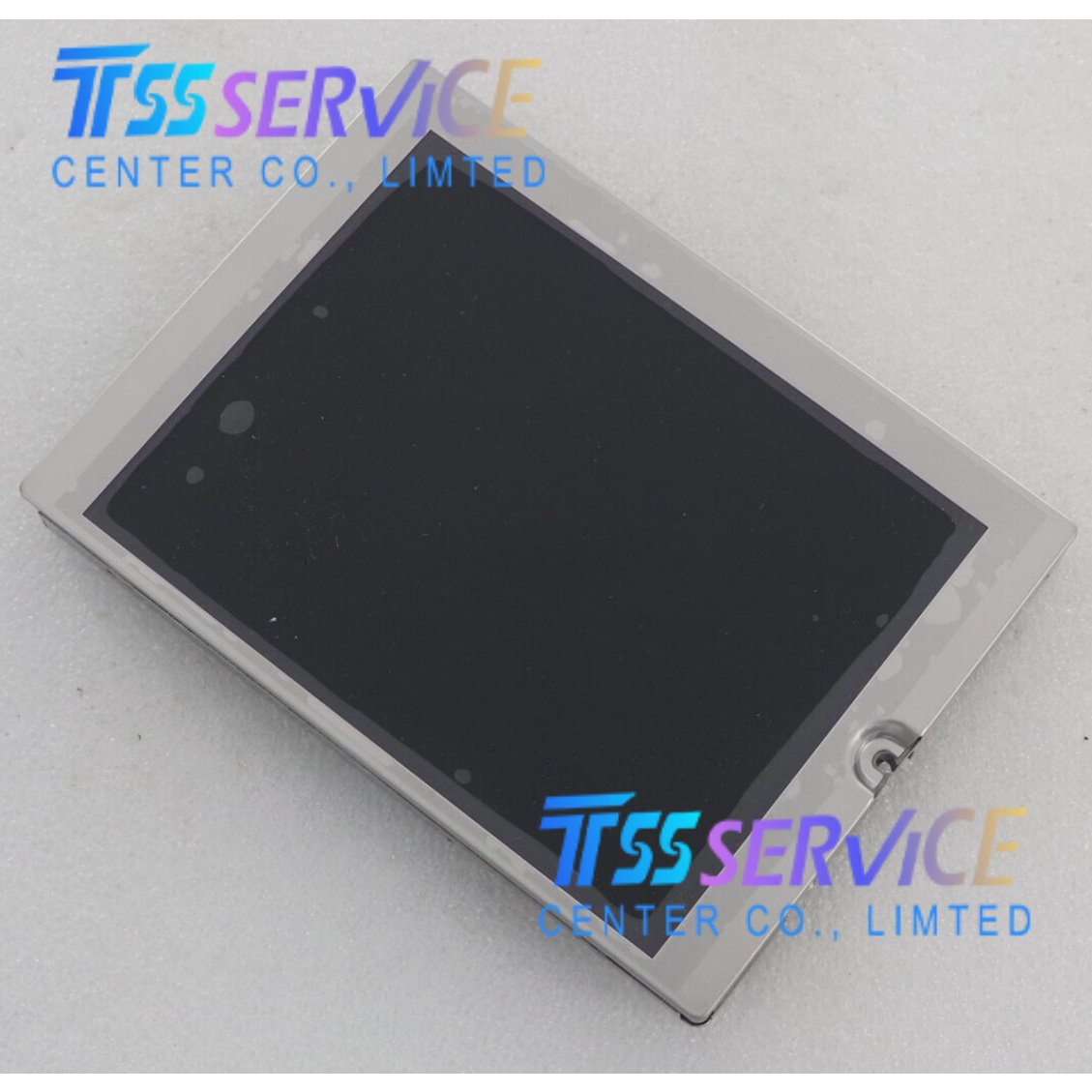

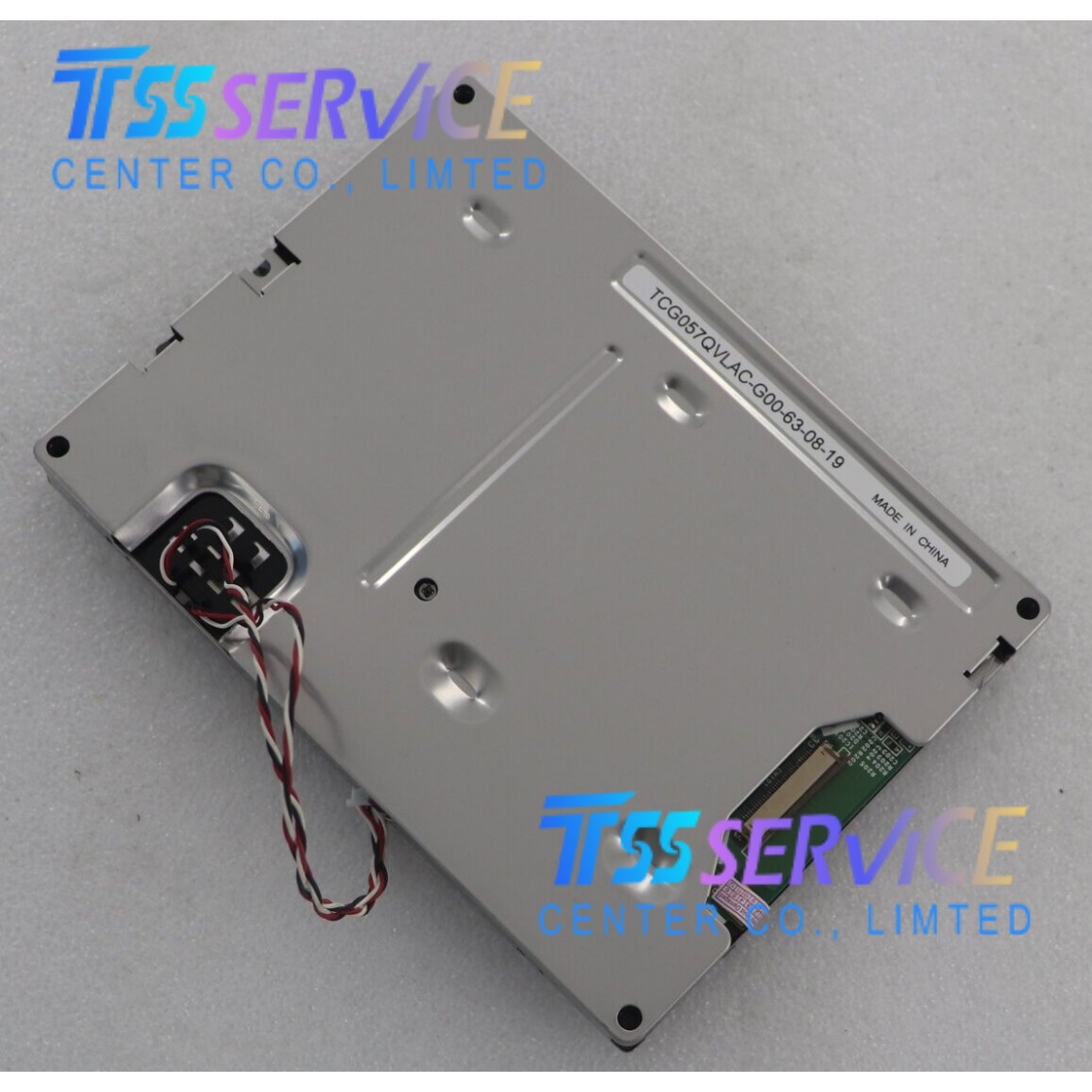

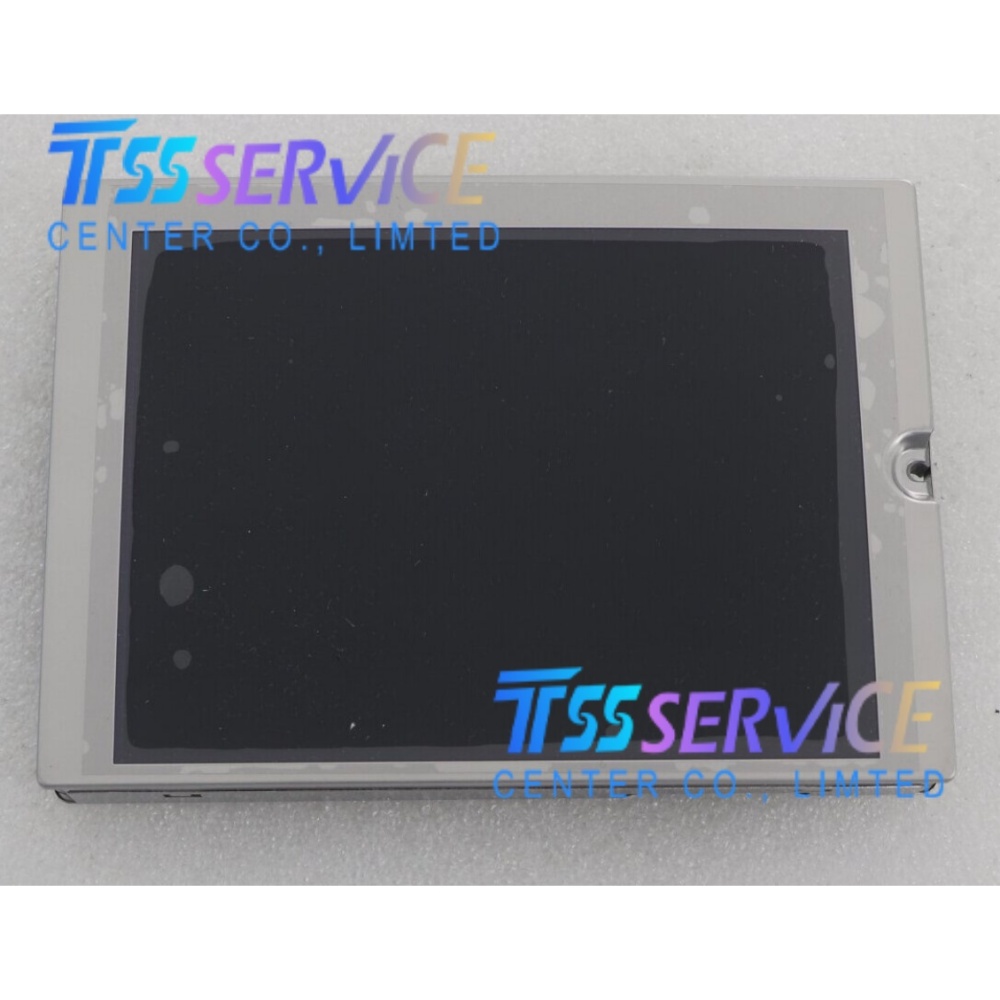

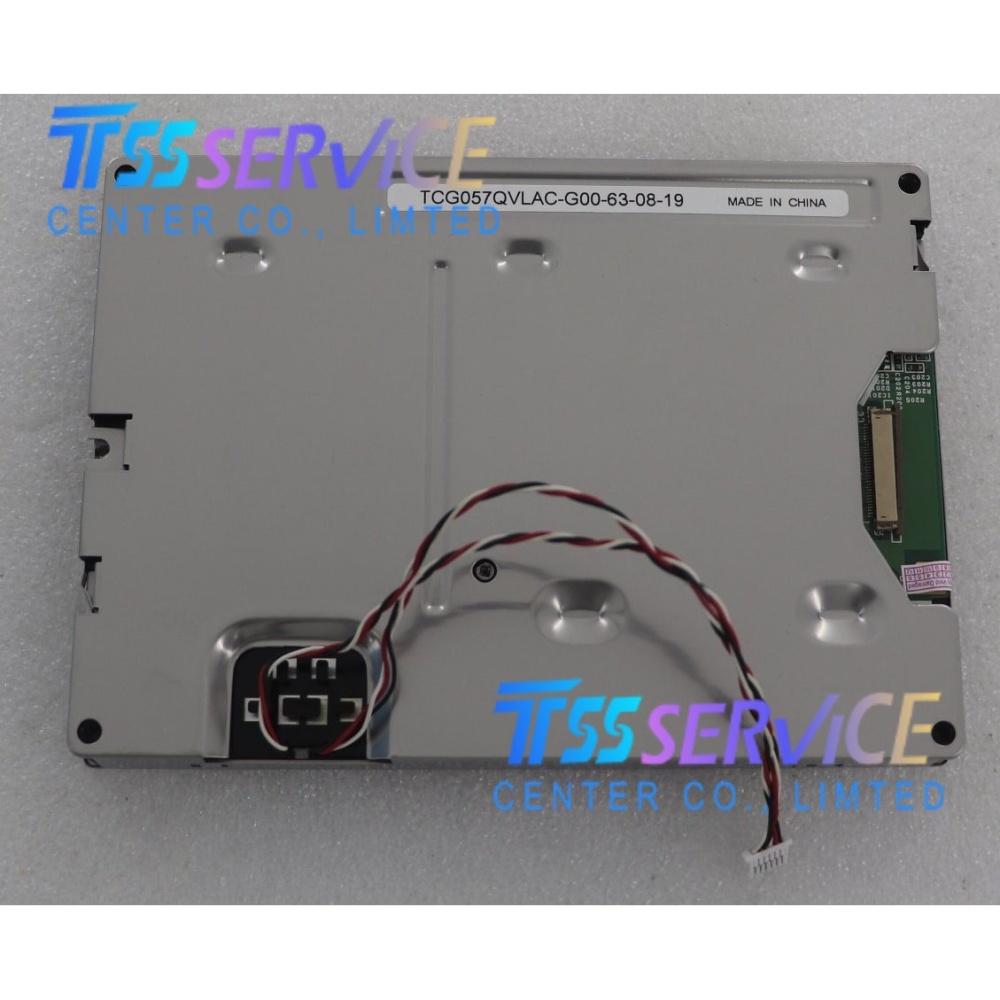

KYOCERA NEW 5.7 inch LCD Display Panel TCG057QVLAC-G00-0Y-30-90 for Industrial
| Parameter |
Specification |

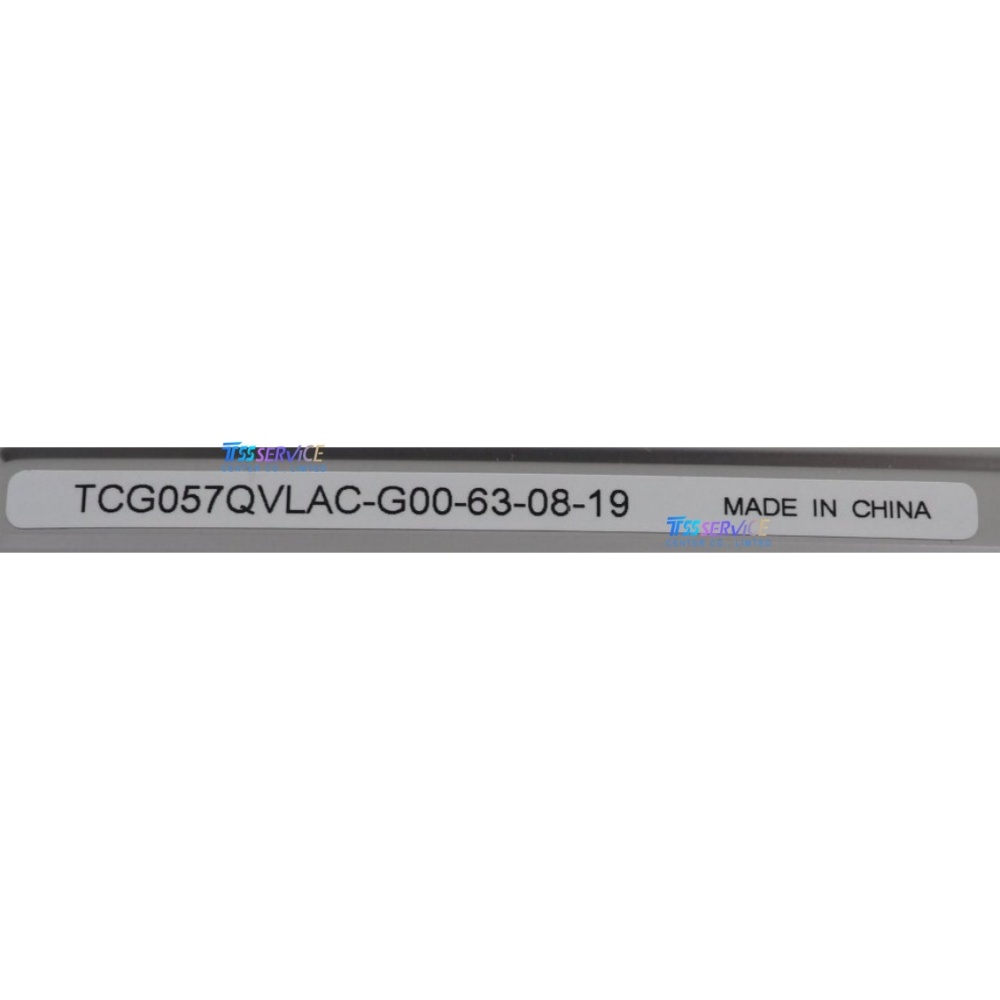

| Model Number |
TCG057QVLAC-G00-0Y-30-90 |
| Manufacturer |
Kyocera |
| Panel Size |
5.7 inch |
| Resolution |
320(RGB) × 240 (QVGA) |
| Display Mode |
TN, Normally White, Transmissive |
| Pixel Arrangement |
RGB Vertical Stripe |
| Aspect Ratio |
4:3 (W:H) |
| Display Area |
115.2 (W) × 86.4 (H) mm |
| Outline Dimensions |
144 (W) × 104.8 (H) × 13.5 (D) mm |
| Surface Treatment |
Mirror (Haze 0%) |
| Backlight |
WLED, Side Light |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
450:1 (Typ.) |
| Display Colors |
262K (6-bit) |

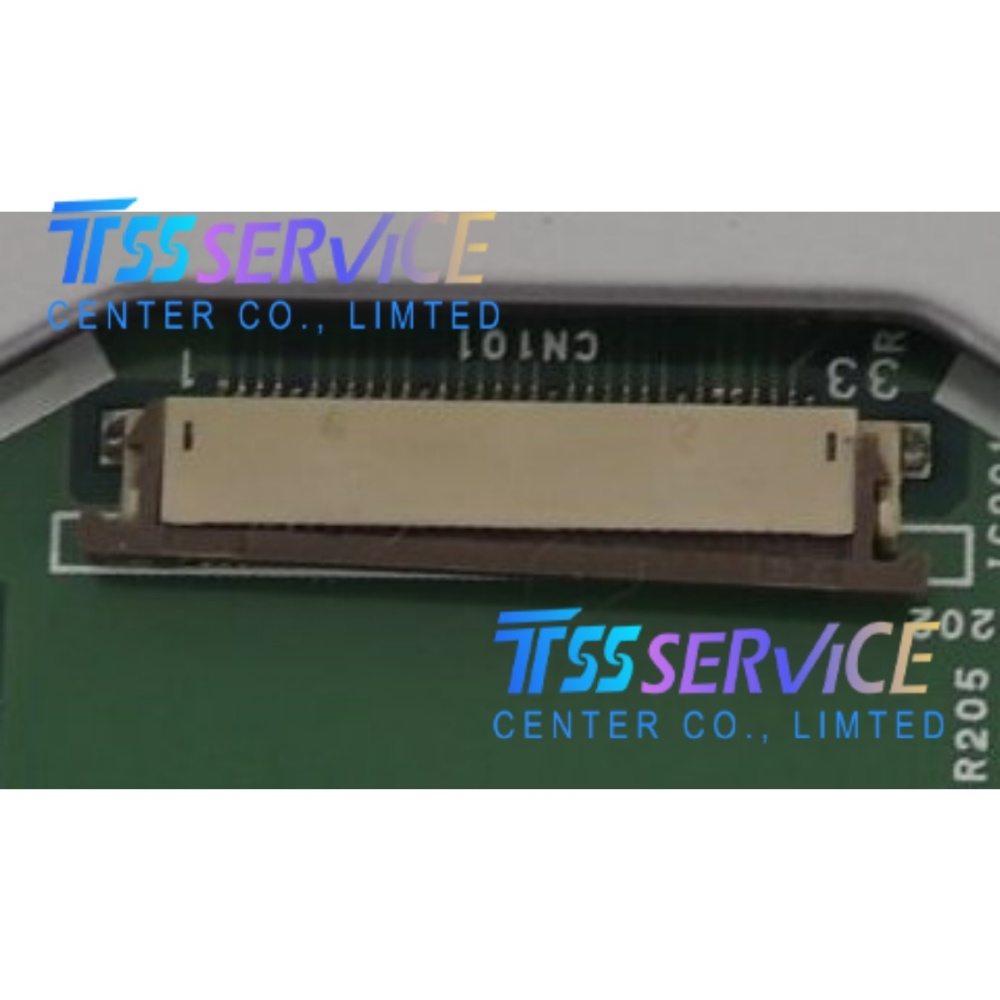

| Signal Interface |
Parallel RGB (1 channel, 6-bit) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Weight |
220g (Typ.) |
| Touch Panel |
No |
This LCD module is engineered for robust performance in various industrial settings. Its key features make it suitable for a range of applications:
- Industrial Control Systems: Its wide operating temperature range (-20 to 70 °C) and reliable TFT-LCD technology make it ideal for human-machine interfaces (HMIs), control panels, and monitoring equipment used in factory automation and other demanding environments.
- Medical Equipment: The clear QVGA display and stable performance are well-suited for integration into various medical devices that require reliable visual data presentation.
- Embedded Systems: The standard Parallel RGB interface and compact 5.7-inch form factor allow for easy integration into custom embedded projects and electronic devices requiring a durable display solution.
KYOCERA
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
